Home > Industrial Equipment & Components > Compressor > Compressor Unit > 590 Cfm /16.5 M3/min 10bar LUY165D-10 of Motor-driven Portable Machine Air Compressor Screw Compressor for Sale

590 Cfm /16.5 M3/min 10bar LUY165D-10 of Motor-driven Portable Machine Air Compressor Screw Compressor for Sale

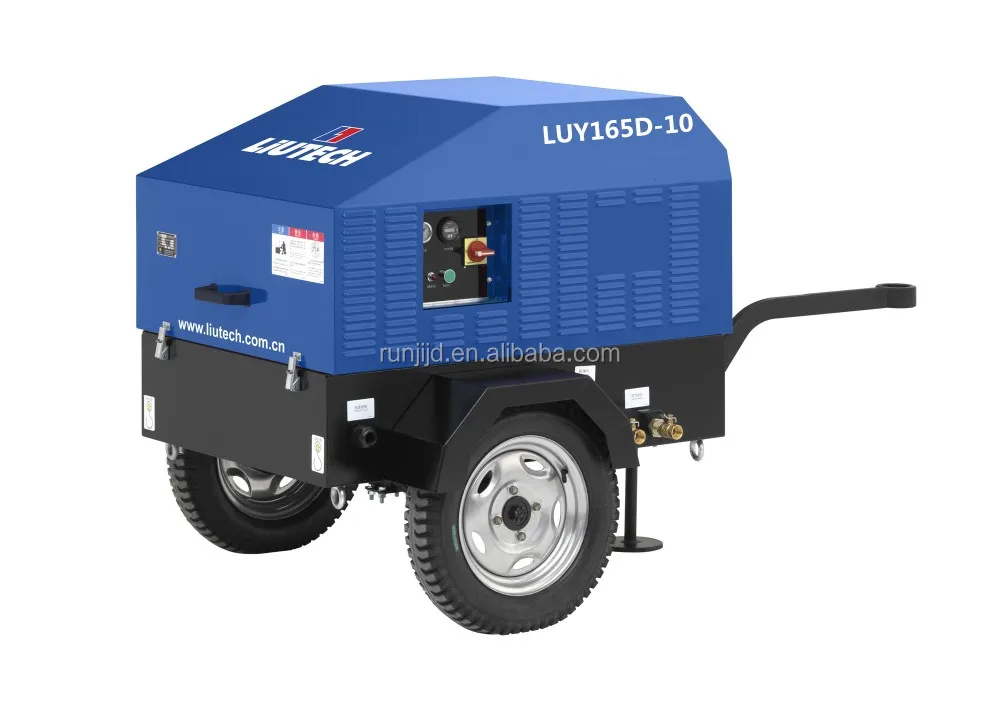

590 Cfm /16.5 M3/min 10bar LUY165D-10 of Motor-driven Portable Machine Air Compressor Screw Compressor for Sale photo-1
US$ 15385 - 78000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LIUTECH
Place of Origin:
China
Model Number:
LUY165D-10
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
15 days
Brand Name LIUTECH
Place of Origin China
Model Number LUY165D-10
Certification ISO9001 ISO14001 OHSAS18001 GC
Type Screw
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year except easily demaged parts
Weight 2285kg
Dimension(L*W*H) 2680*1660*1800mm
Condition New
Voltage 380v/3/50hz
Mute No
Lubrication Style Lubricated
Power Source AC Power
Configuration Portable
590 cfm /16.5 m3/min 10bar LUY165D-10 of motor-driven portable machine air compressor screw compressor for sale

A screw air compressor uses a rotary-type positive-displacement mechanism. They are commonly used to replace piston compressors where large volumes of high-pressure air are needed, either for large industrial applications or to operate high-power air tools such as jackhammers and impact wrenches.

SPECIFICATIONS FOR LUY165D-10
Main performance parameters
7Working Pressure
10 bar
Air Delivery
16.5 m3/min
Noise decibel
73+-3
Compressor Oil Capacity
55 L
Gas Outlet Valve - num* size
1*G1   1*G3/4
Screw Element
Screw Element Brand
Atlas Copco
Engine
Engine motor power
110kW
Voltage
380V/50HZ
Power factor
0.89
Motor revolution
2970rpm
Protection level
IP54/F
Dimentions:
Box Unit
Length
2680 mm
Width
1660 mm
Height
1800 mm
Weight
2285 kg
Dimentions:
Undercarriage
Length
4232mm
Width
1950 mm
Height
2170mm
Weight
2590 kg
Main Features

1) GIII Electric Jet Engine: full speed performance, low fuel consumption, and environmentally friendly

2) Top-level Screw Element: Atlas Copco Original, Two Stage Air Compression

3) Reliable Gear Drive System: highly precise gear, high efficiency

4) Optional Accessories: cold boot package, front guide wheel, aftercooler etc.

5) Efficient Cooler: a big surface area for heat exchange, work properly under high ambiance temperature

6) CS8000 Intelligent Controller: Touch Screen Operation, data history available


Product Tags: air compressor , screw type air compressor , portable air compressor , 590 cfm air compressor , industrial air compressor , Air- Compressor Machines price
