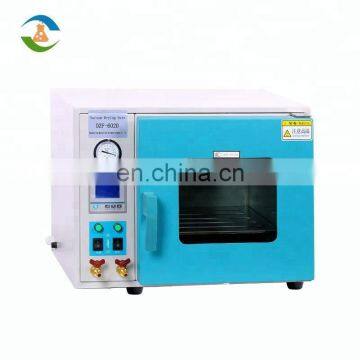

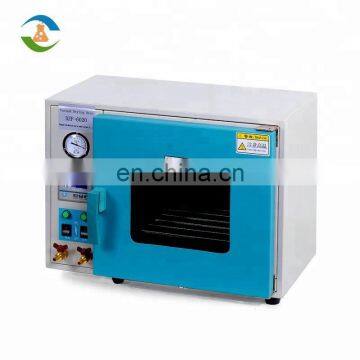

Lab Small High Temperature Vacuum Drying Oven Desiccator
Vacuum drying ovens have a chamber volume of between 8 and 430 litres and a temperature range starting at between +10°C above room temperature up to +250°C. The interiors are made of corrosion-free stainless steel 304. Underpressure accelerates drying in the vacuum drying oven. Heat-sensitive material can therefore be dried in the vacuum drying oven at low temperatures, and at the same time the drying time is considerably reduced. To avoid oxidation, an inert gas(e.g. nitrogen) can be fed into the chamber.

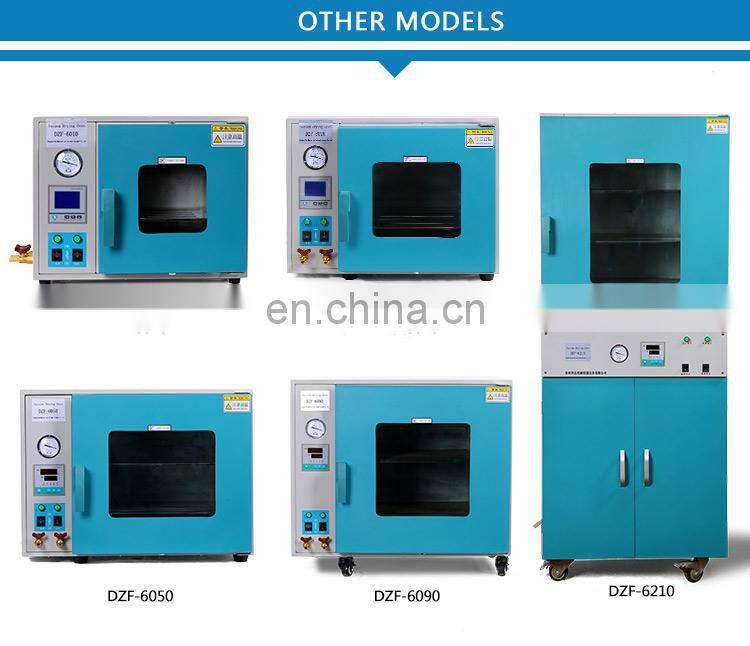

Model |
DZF-6010 |
DZF-6020 |
DZF-6050 |
DZF-6090 |
DZF-6210 |
DZF-6500 |
Power Supply(V/Hz) |
220V 50/60 110V/60Hz |
|||||
Spray-paint Anti-corrosion |
||||||
Liner Material |
304 Stainless Steel |
|||||
Temp. Range(℃) |
RT+10~200(250°C) |
|||||
Temp. Stability(℃) |
±1.0°C |
|||||
Temp. Analysis(℃) |
0.1°C |
|||||
+5~40°C |
||||||
Input Power (W) |
400 |
700 |
1400 |
2000 |
2060 |
2800 |
Chamber Capacity (L) |
8 |
25 |
55 |
90 |
430 |
430 |
Inner Dimension (W*D*H,mm) |
200*200*200 |
300*300*270 |
400*400*345 |
450*450*450 |
560*600*640 |
630*810*845 |
630*420*460 |
620*510*480 |
710*580*530 |
610*680*710 |
720*820*1750 |
790*1030*1855 |
|
Trays(Pcs) |
1 |
2 |
3 |
4 |
||
|
|
||||||
Features of Small Thermal Price of Vacuum Chamber:
1. Cuboid chamber maximizes the effective cubage. Microprocessor controller for temperature ensures a precise and reliable control.
2. Dual-layer bulletproof toughened glass door ensure absolutely clear observe on objects in chamber.
3. Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.

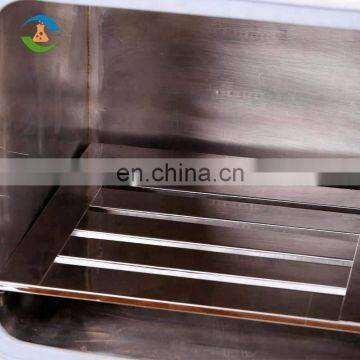

4. The chamber is made of stainless steel (or wire-drawing sheet) which allows a durable service and cleaning easily.
5. Store, heating test and drying are all in an environment without oxygen or filled with inert gases, which ensures no oxidation.
6. Minimum heating time is over 50%, less than the traditional vacuum drying oven.
******Click Here to Contact Us for More Details and Latest Price******
1. The vacuum tube around makes room temperature more uniform, avoiding organic connecting with fires burring.

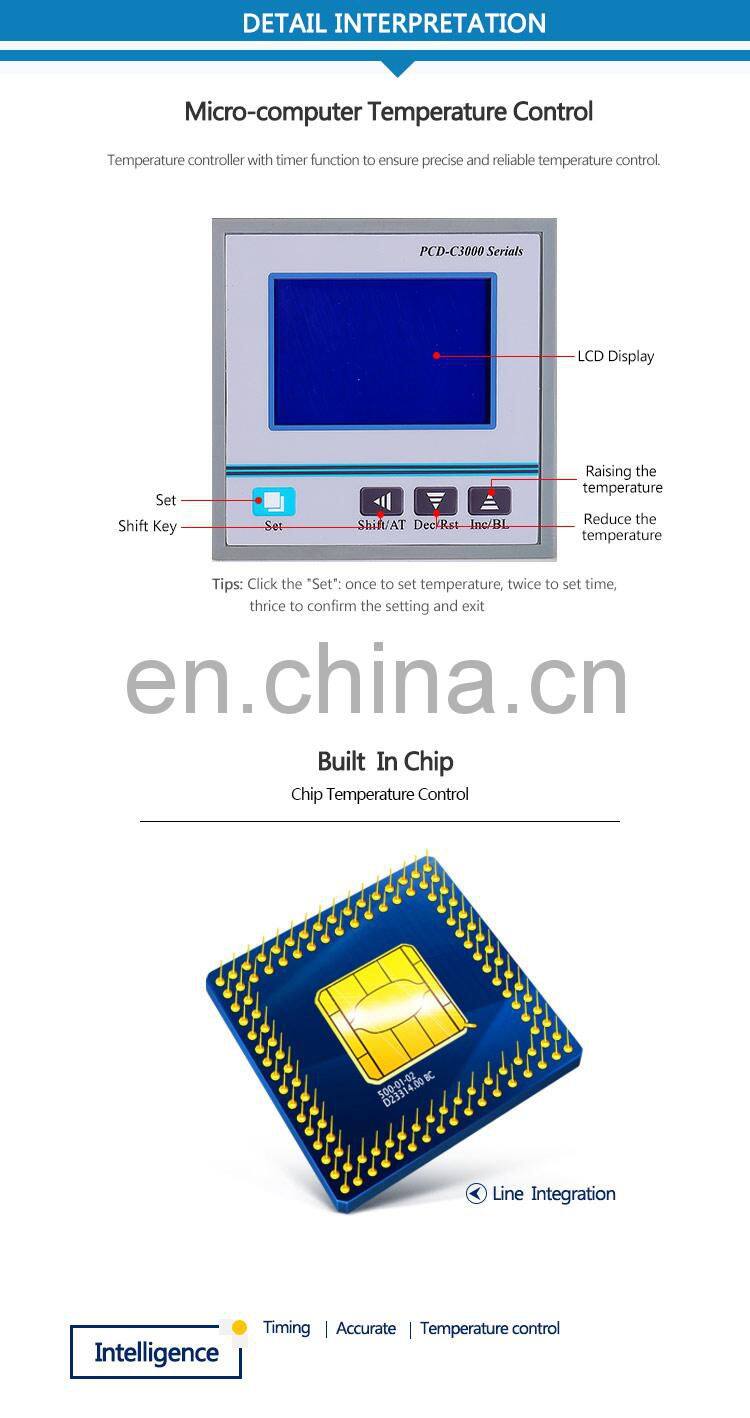

2. Set temp and control are all intelligent digital display, high accuracy.

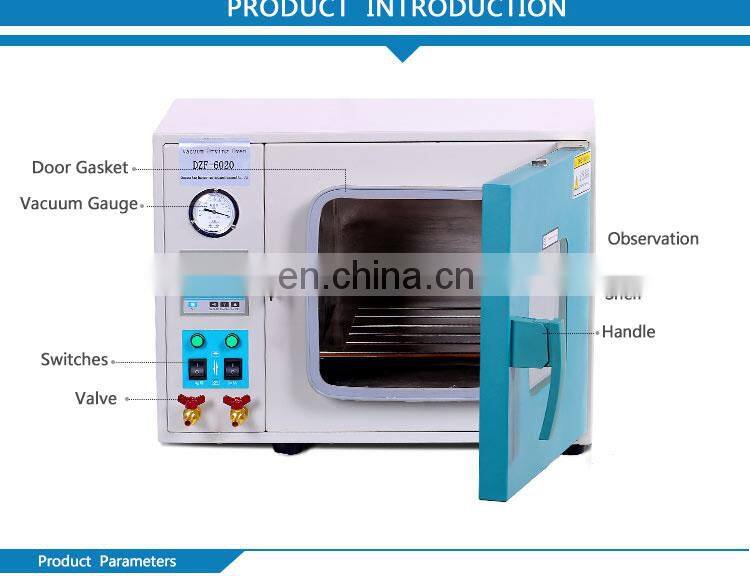

3.6020,6050 both adopt jacketed vacuum glass door .On one hand, it keeps the temp in room; On the other hand you can see the dried instruments clearly.
4. The door that can be adjusted is overall the silicone rubber molding circle, can insure the vacuum degree.
Ancillary Equipment: Rotary Vane Vacuum Pump (Click Here for More Details)
Guangzhou Fan Bo Lun Import and Export Trade CO.,LTD. Is a collection research and development, production, sales, experimental instruments and equipment of private enterprise, with solid strength, reasonable prices, excellent service and many enterprises established long-term relations of cooperati. first-class highly professional team,technical team,facilities and a meticulous quality control system,committed to be the respected leading enterprise in chemical instruments provide more efficient,energy saving.Good quality, customer trust, we always follow the principle of service.
Our flagship product
rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), rotary vane vacuum pump, hydrothermal synthesis reactor, etc.
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
1,How many shelves does your oven can hold?
Different models hold different number shelves like 1, 2, 3 shelves. That will be according to the models.
2.What is your max temperature?
Max 250 degree C, 200 degree C is normal.
3, What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4, Can you make 110V versions?
Yes, we can make it.
5, How is your oven heated?

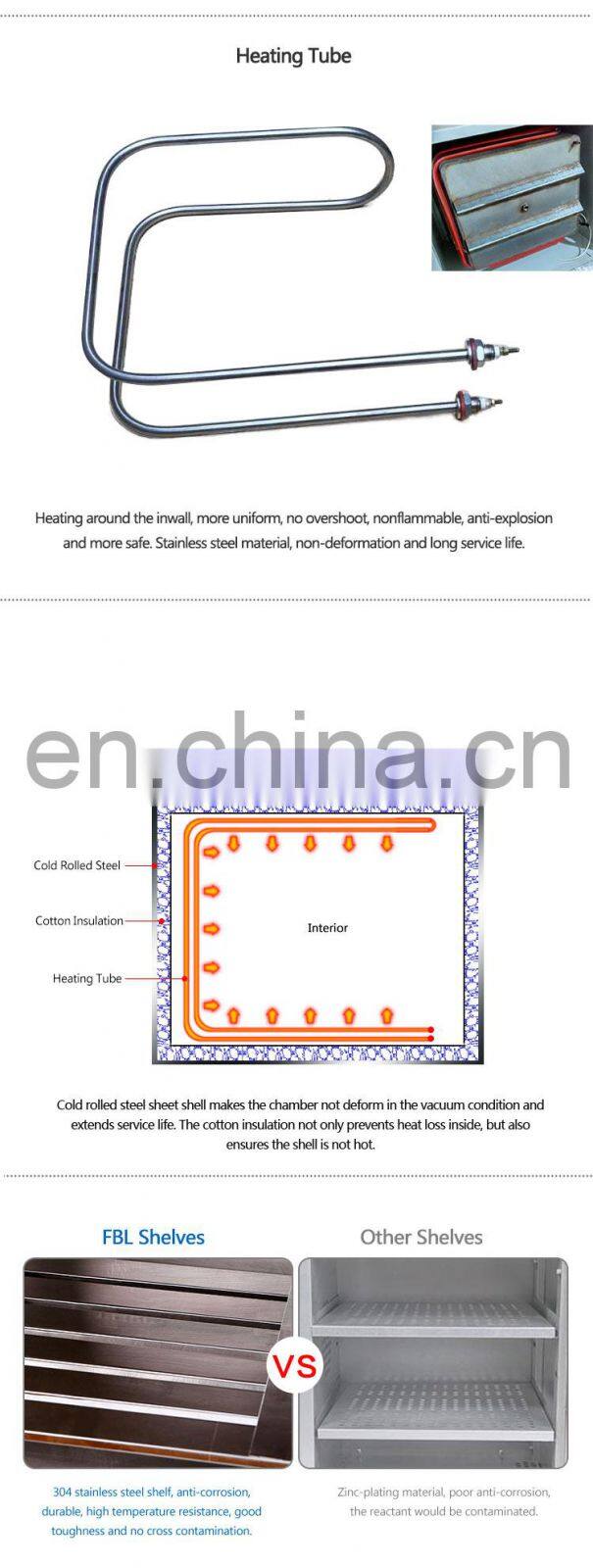

There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6, Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
