High pressure jet water pumps Self priming water pump price india
| Jet Self-priming Water Pump |
About Jet water pump
JET series water pump combine functions and advantages of centrifugal pump and self-priming pump, which is suitable to convey clean water and non-aggressive chemical fluids, even with liquid mixed with gas from well in continuous duty; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. Usually, it is advisable to install a foot valve on the suction branch.
Pump construction
Pump Motor wire: Copper wire / aluminum wire
Pump body: Cast iron
Motor housing: Aluminum
Impeller: Brass/Plastic
Motor: Eletric motor
Mechanical seal: Carbon/Ceramic/Stainless Steel
Pump Motor Shaft: 45#steel/stainless steel
Insulation class: B
Protection class: IP44
Pump working condition
Suction head up to 9m
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:9Bar
Liquid temperature up to 60 °C
Ambient temperature up to 40 °C
Total Suction lift up to 9 m
Continuous duty
| Pump Technical Data |
MODEL |
POWER |
MAX.FLOW |
MAX.HEAD |
MAX.SUCT |
INLET/OUTLET |
GW |
|
|
kW |
HP |
(l/min) |
(M) |
(M) |
(inch) |
(kgs) |
JET-60 |
0.45 |
0.6 |
40 |
36 |
9 |
1"x 1" |
12.8 |
JET-80 |
0.6 |
0.8 |
50 |
38 |
9 |
1"x 1" |
13.1 |
JET-100 |
0.75 |
1 |
60 |
45 |
9 |
1"x 1" |
13.8 |
| Pump Explosion Picture |

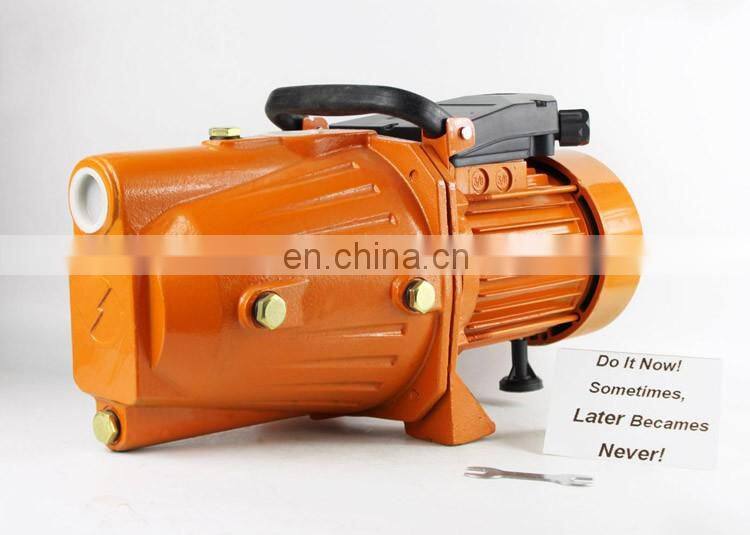

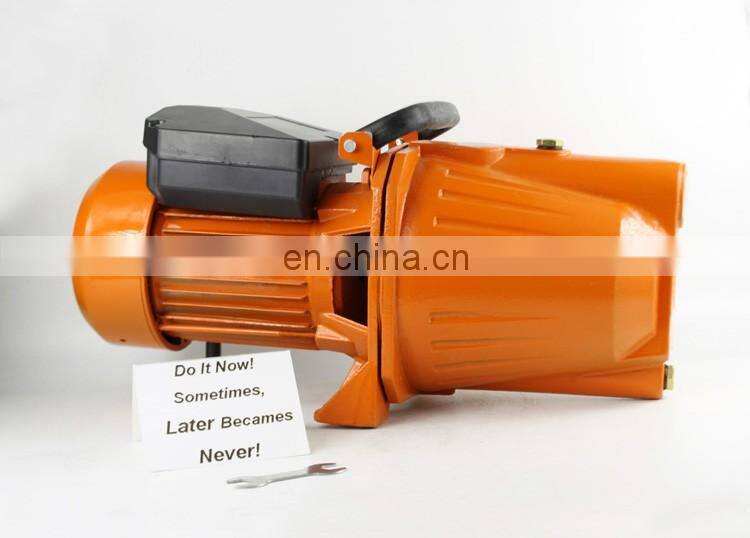

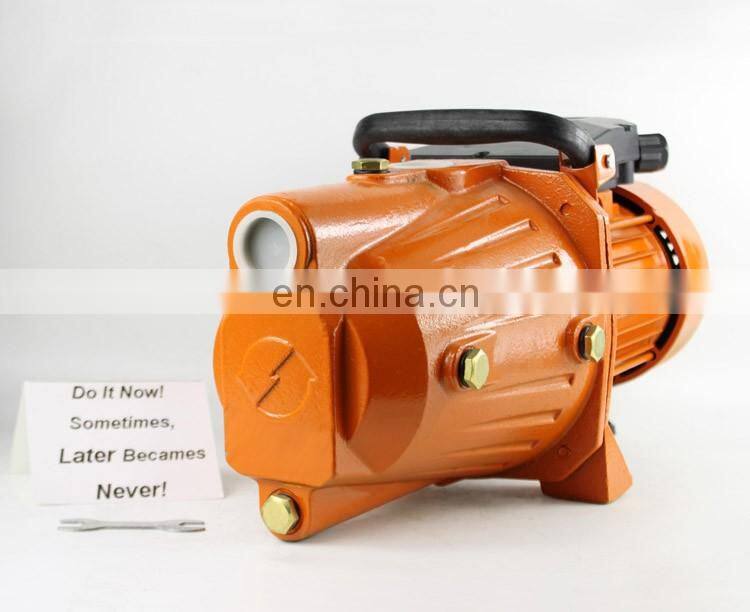

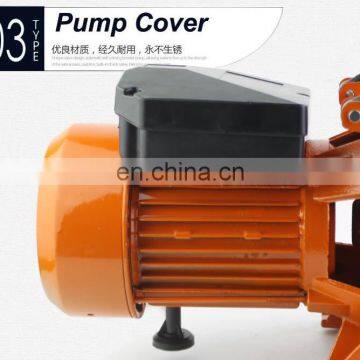

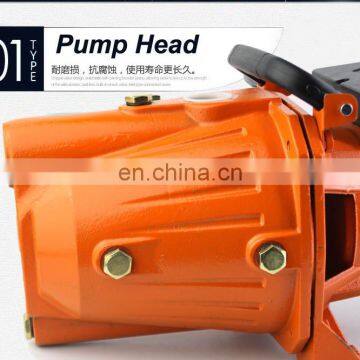

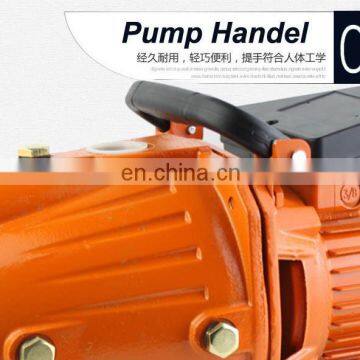

| 100% Real photograph |

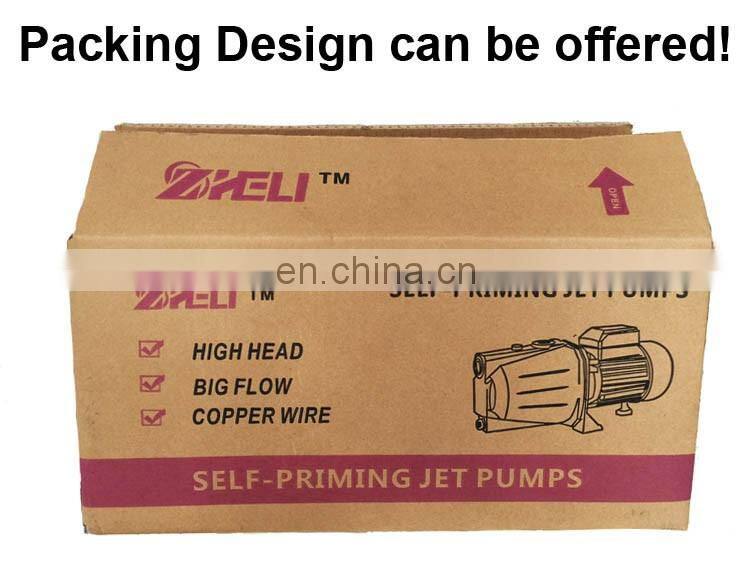

| Packing |
Standard export packing for Jet Self-priming Water Pump
1) 1 piece in 1 carton box
2) Packing size : 49*18.5*20.5CM
3) Packing design can be offered
| FAQ |
Q1:How long can I get the feedbacks after we sent the inquiry?
We will reply you within 12 hours in working day.
Q2:Are you direct manufacturer or trading company?
We are factory and have international department.
Q3:How to guarantee the quality and after sales service of your goods?
2.Strict sampling inspection on products before shipment and intact product packing are insured
3.Follow up and adopt customers feedbacks in a timely manner after sales.
Q4:What is your warranty time?
There is a 12 months warranty for our export products from the date of shipment.
Q5:Is the sample available?
Yes,Usually we send our sample by DHL,TNT,FEDEX on customers' cost.
| E-mail To Us |
Congratulations! You found the Real Pump Manufacturer!
Thanks for choosing ZHELI PUMP as your consideration of pump equipment.
We are an professional pump manufacturer located in Daxi town , Wenling city,Zhejiang, China.
History:10 years experience of manufacturing different kinds of pumps;
Scale:Covers working area of 3000 square meters,have more than 100 employees
Technology:A group of professional technical engineers and a strong R&D team
Management:Scientific management and strict quality control system
Marketing network:America,Europe,Asia,Africa,etc.
How can we help?--------This is our slogan!
We are a professional technical work team!
We may young but we full of passion!
We never stop learning and innovation!
Your requirement is our motivation!
We are your right choice!
