Portable hand oil pump Pinion pump factory
1. Product introduction:

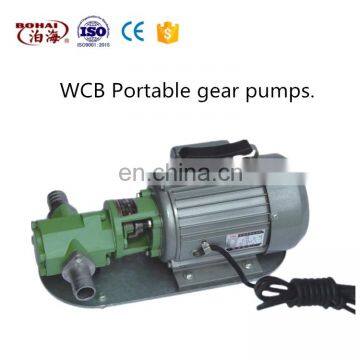

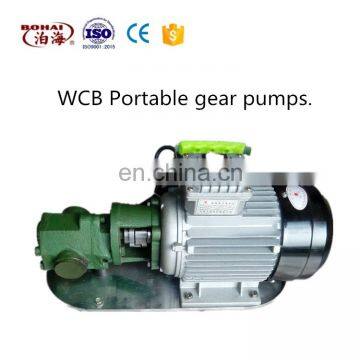

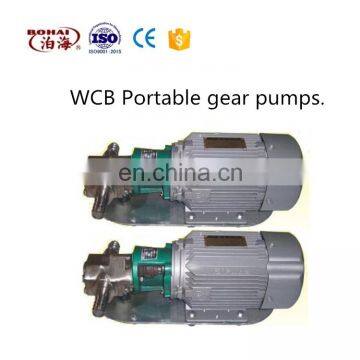

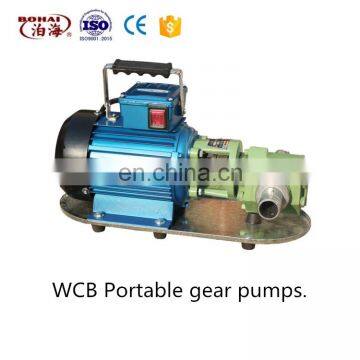

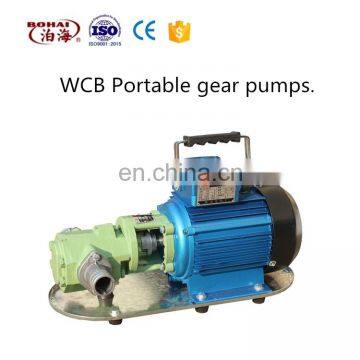

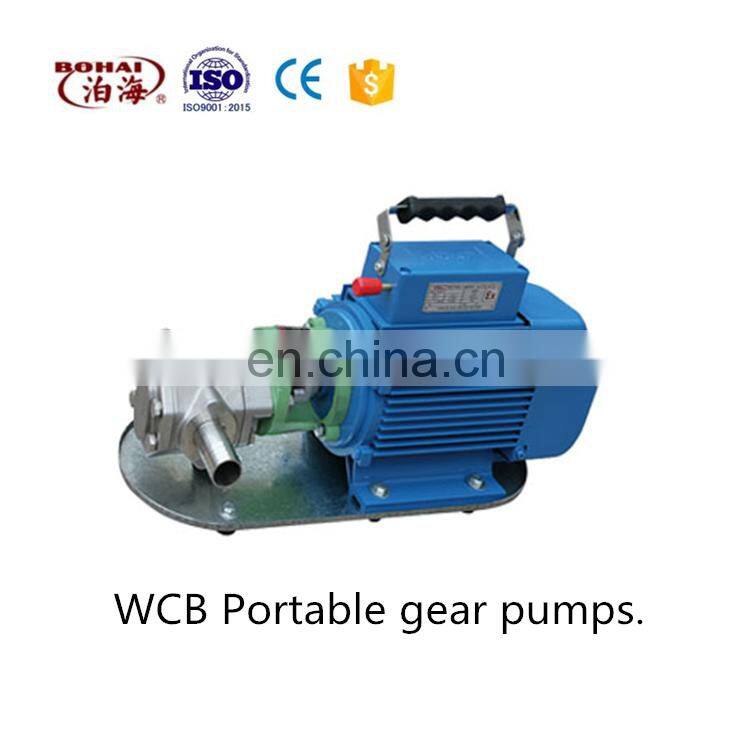

1. WCB portable fuel oil pump Stainless steel gear pump is a small gear oil pump with a portable handle. Portable hand oil pump Pinion pump factory
2. This series of pump is always used to delivery lubricating liquid, but by adopting stainless steel material, it also works for medium that is lubrication beverage, food or corrosive liquid.
3. With the merits of small volume and easy to move and carry, pump has always been used in oil drum carrier, oil refinery, electric power plant and substation and oil depot. Portable hand oil pump Pinion pump factory
4. The voltage and frequency could be customized to meet customers' requirements.
2. Product details:
| Working Principle: | Double Gears |
| Main applications: | Oil (Forbidden Gasoline), Lubricating fluid |
| Driver: | Electric motor |
| Power Specs: |
220V/380V/415V 3phase; 110V/220/240 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80°C(Anti-oil rubber), 100°C(PTFE) |
| Type of connection: | Thread, Quick couple. |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Gear mateiral: | Cast iron, Stainless Steel, Bronze |
| Shaft seal type: | Anti-oil rubber or PTFE |
| Free passage: | 00 mm |
| Maximum viscosity: | 300C.S.T |
| Maximum drive rating: | 1.1kW(1.5HP) |
| Maximum caliber: | 25mm(1inch) |
| Maximum discharge-side pressure: | 0.3MPa(3bar) |
| Maximum suction | 5m(16.4ft) |
| Flow rate range: | 30-100L/min(7.9-26.4US.GPM) |
3. Performance data:
| Model | Material |
Caliber (mm) |
Capacity (L/min) |
Head (m) |
Motor power (W) |
Voltage |
| (Phase) | ||||||
| WCB-30 | Cast iron | 20 | 30 | 30 | 370 | 1ph/3ph |
| WCB-50 | 20 | 50 | 30 | 550 | 1ph/3ph | |
| WCB-75 | 25 | 75 | 30 | 750 | 1ph/3ph | |
| WCB-100 | 25 | 100 | 30 | 1100 | 1ph/3ph | |
| WCB-30P | Stainless steel | 20 | 30 | 30 | 370 | 1ph/3ph |
| WCB-50P | 20 | 50 | 30 | 550 | 1ph/3ph | |
| WCB-75P | 25 | 75 | 30 | 750 | 1ph/3ph |
