Recycling Waste Paper Egg Tray Machine / Egg Carton Forming Machine / Equipment For Small Business

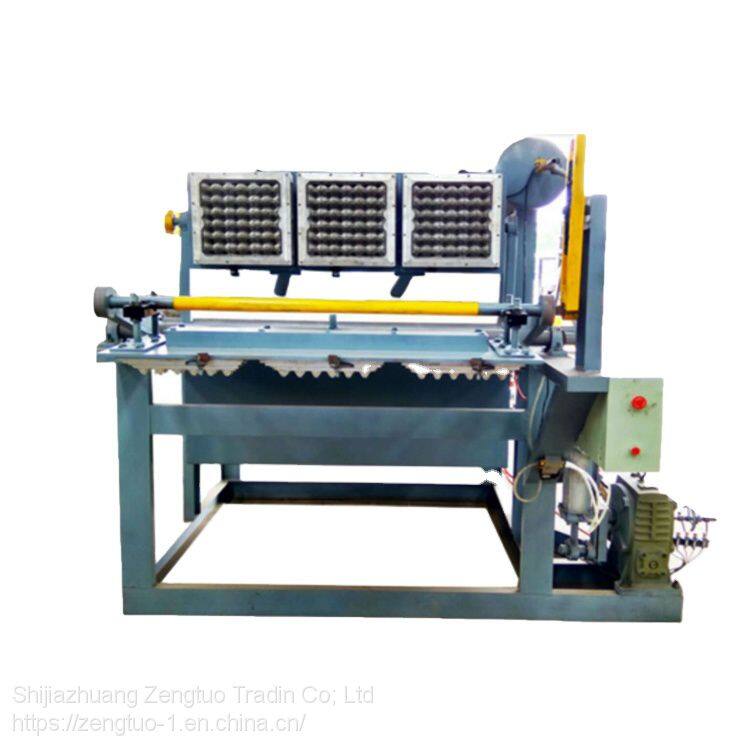

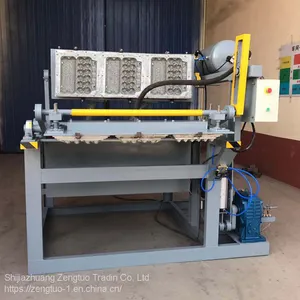

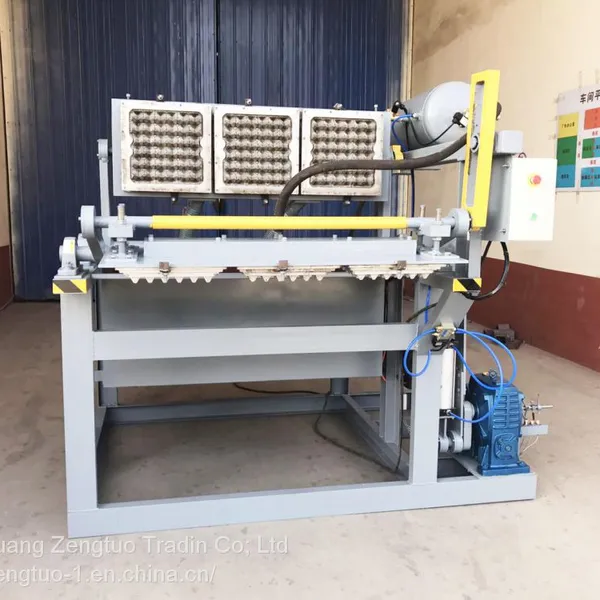

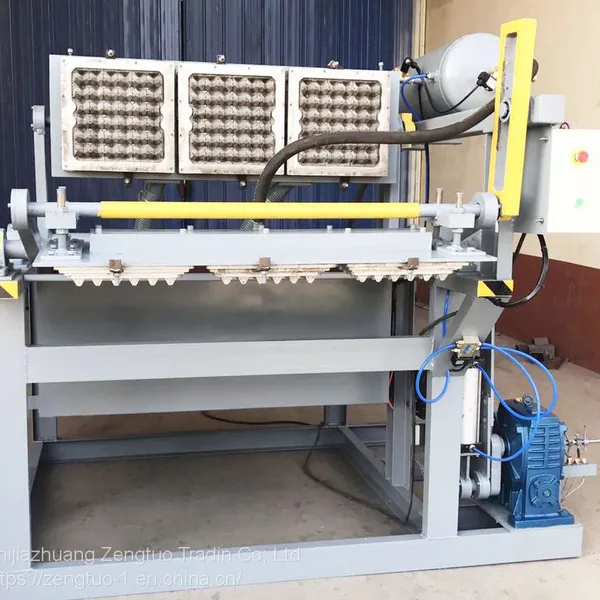

Moulding Machine of the egg tray machine:
| Production capacity | 800-1000 pieces / hour (60-100gsm / piece , 30 caves egg tray) |
| The main workshop area |
should not be less than 80 square meters( 12*8 meter at least) ( warehouses, offices , living rooms are not included) . Workshop for metal structures or brick structure , located in the first floor with appropriate, effective height of the workshop should be not less than 2.5m, shop floor must be concrete structure, with terrazzo floor as well. |
| The full set of equipment power requirements |
35KW (380V 50Hz, 3Phase, other voltage is optional), while the actual production capacity of the power consumption of about 70 %. |
| Water consumption |
water recycling within the system , no waste water discharge , no environmental pollution , water consumption per hour during normal production is 350kg. |
| Operator | Operation worker class 3 to 5 people |

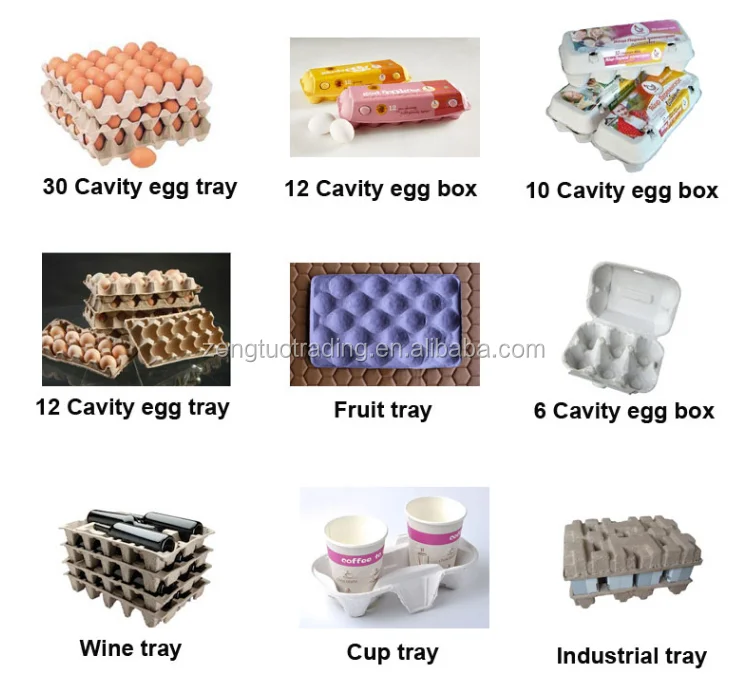

Output Products of the egg tray machine:
The ZT-F1000 Type Machine Can produce egg tray, egg box, apple tray, strawberry tray, paper shoe tree, paper cup tray, wine tray, and other industrial paper trays by changing mold.

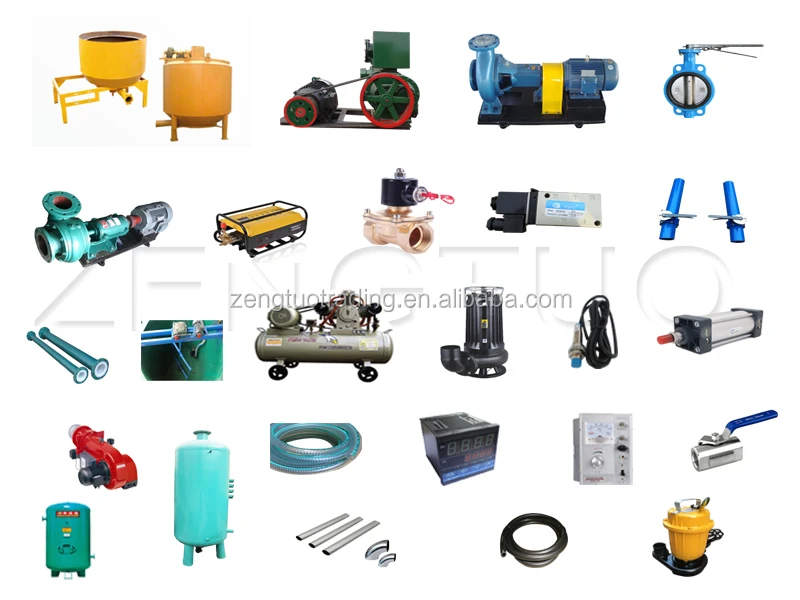

Accessories of the egg tray machine:

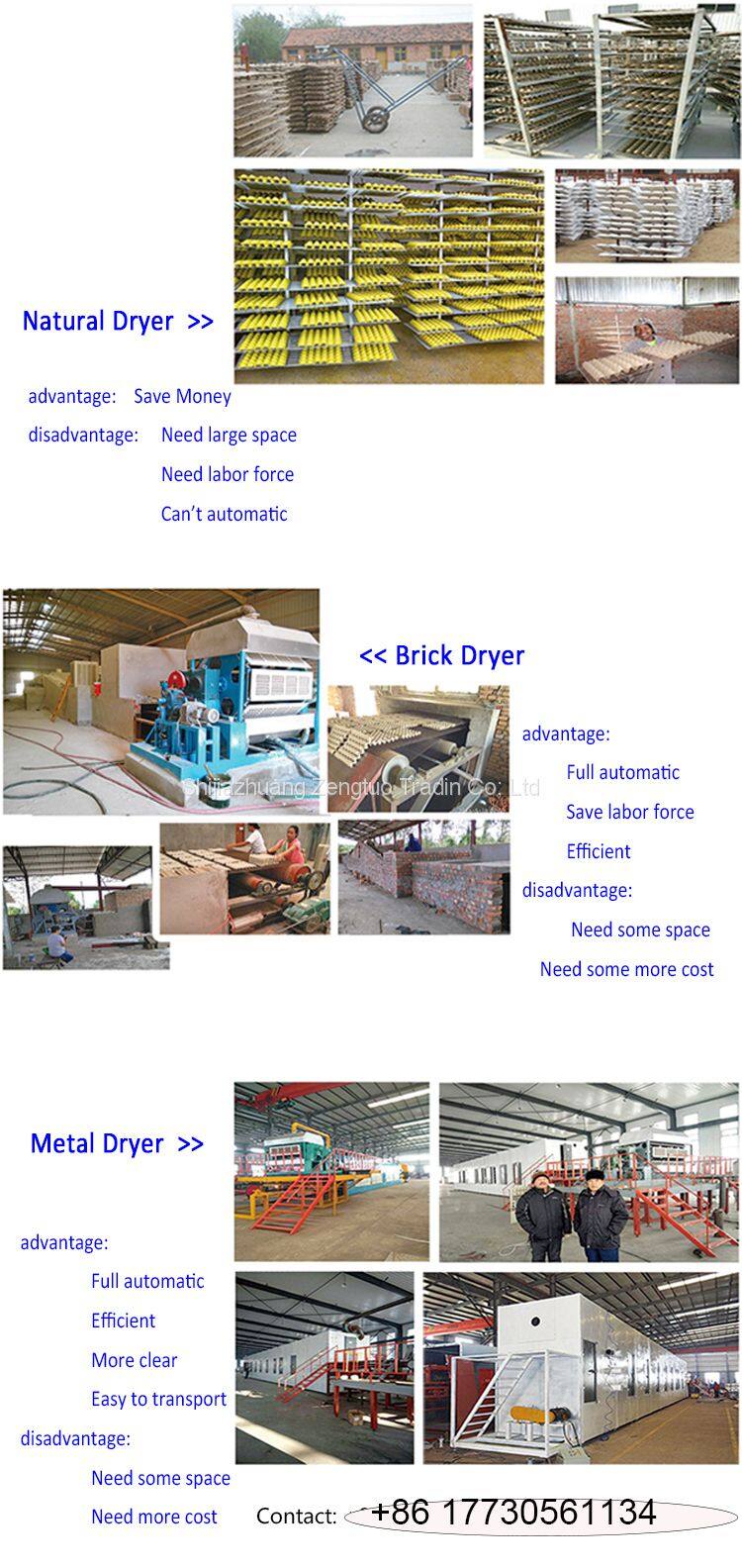

Different Dryer System of the egg tray machine:
natural wind drying frames and pallets;
traditional brick built dryer(fuel can be coal, diesel, gas, or lpg);
metal multi layer dryer and metal signle layer dryer( fuel can be coal, diesel, gas, or lpg)

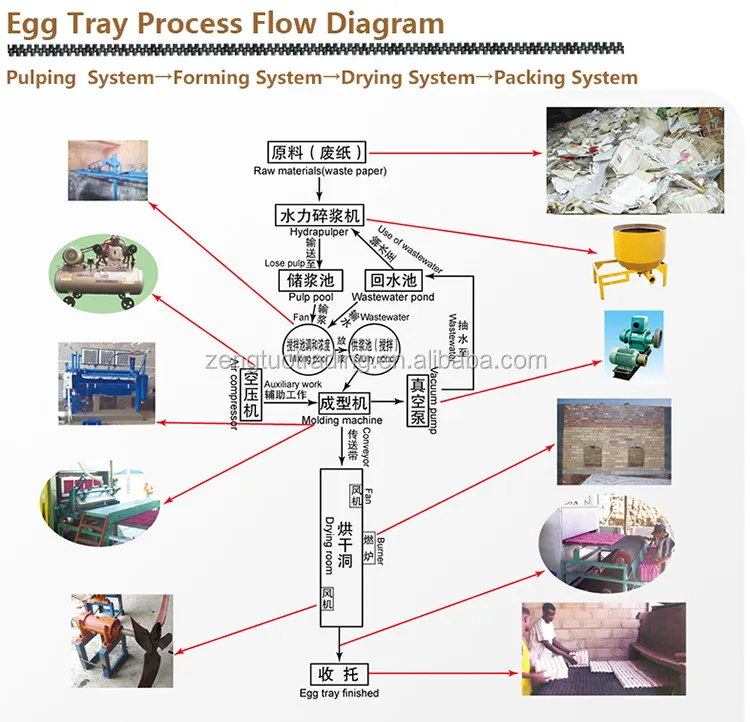

Egg Tray Process Flow Diagram of the egg tray machine:
Pulping System+Moulding System+Drying System+Packaging System
Packaging & Shipping of the egg tray machine:
Packaging & Shipping
Wrapped with corrugated sheets, then fixed by steel wires in the container.
Shipping of our egg tray machine:
* 1x20GP(For this 800-1000pcs/hr egg traymachine)
* Delivery Port: Tianjin xingang Port
Payment term & Delivery of our egg tray machine:
TT: 30% prepayment, 70% before delviery.
Delivery time: 30 days after recieving the prepayment.
Our Service of the egg tray machine:
Pre-sales service for our small egg tray machine
*Any questions about our egg tray forming machines by email/phone will be replied with 24 hours.
* According to the customer's requriements and circumstance to recommend the best egg tray production lines
* Cost/Benefit analysis according to your budget plan.
* To support factory layout design and construction.
* Design the egg tray/fruit tray mould for you according to your needs(You need to pay for the new mould develop cost)
In the sale of services for ordered egg tray production machine

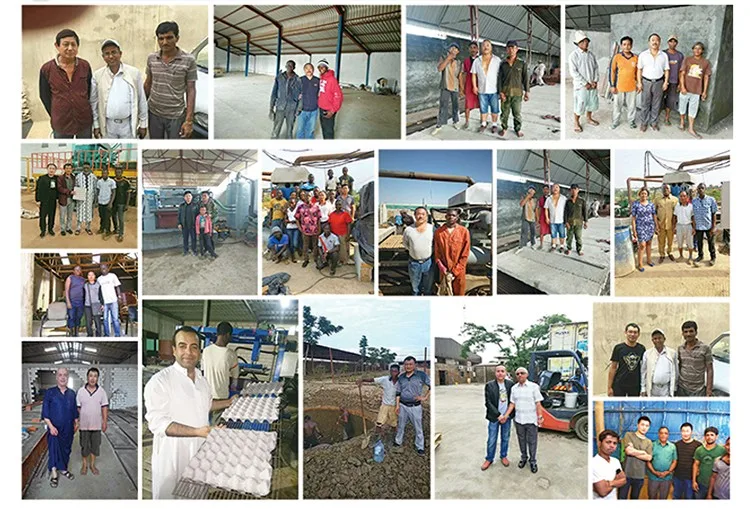

* we will arrange engineers go to the buyers factory for installing,debugging and training in the buyer need it(In charge of it).
* technical guidance of frequently asked questions
After-sales service for the installed egg tray production machine
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support online
What's app: 008617730561134
* quick wear parts supply and maintainence instruction.
What you might want to know about our paper egg tray production machine
What is the egg tray forming machine’s frequency, can it apply 60Hz, how about the Voltage of our shoe tree making machine?
Yes, our machine can use 50Hz and 60Hz; Our standard is 380V,50Hz, 3 Phase; 220V-460V working voltage can be customized.
* What is the raw material of the paper egg tray production line?
Generally, waste office paper,newspaper,old magazine, carton board and other kinds of waste paper material. We can also make use of waste pulp from paper machine factory.
* Which kind of fuel can be used in the drying system?
Electricity, 0# diesel oil, natural gas, LPG, coal and rice husk.
* Is there any requirements for the production area?
Different production capacity egg tray lines with different factory layout sizes.
If you have more questions or ideas about our paper egg tray making machine , email us freely!
