Product Details

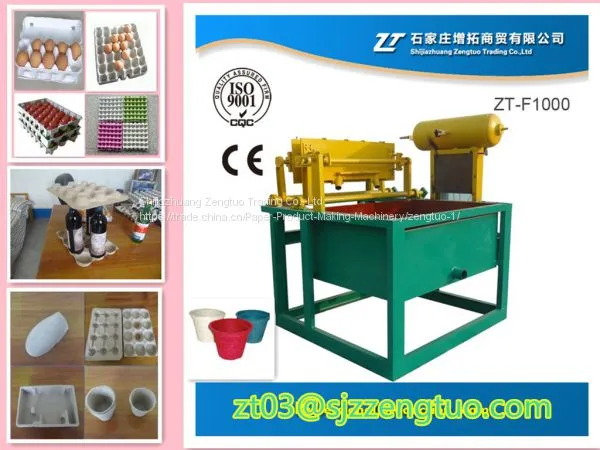

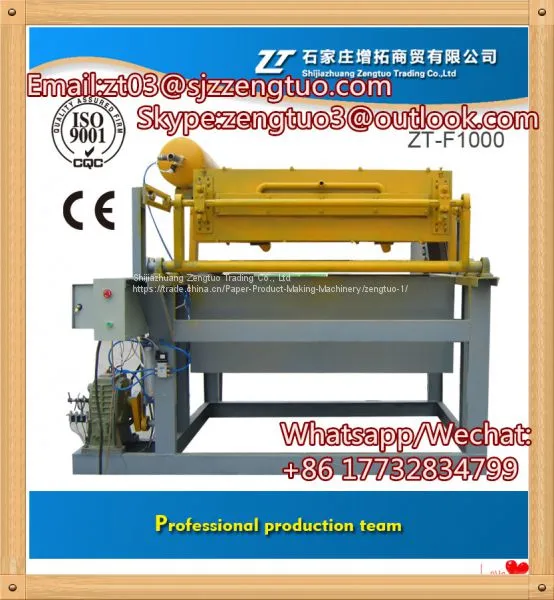

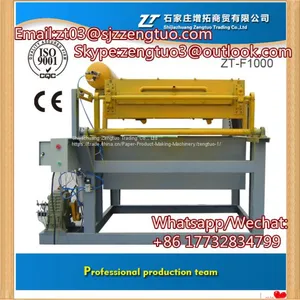

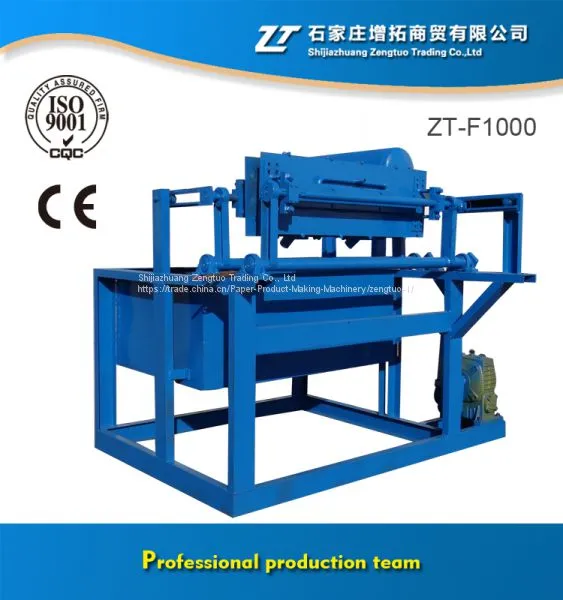

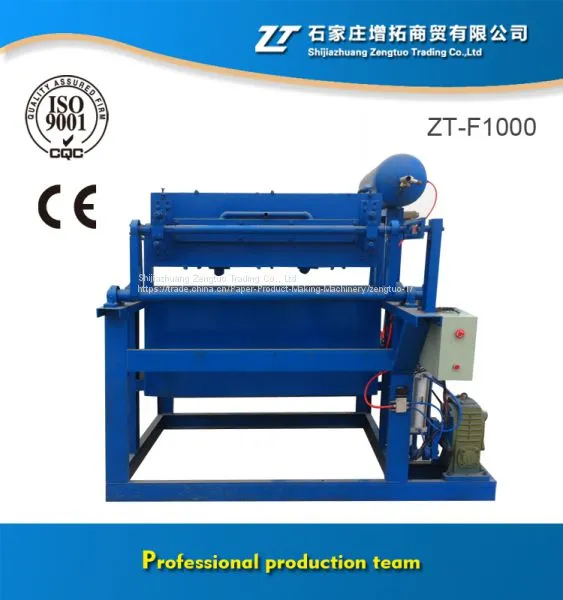

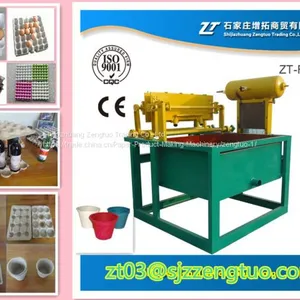

small egg tray molding machine1000 Capacity Egg Tray Making Machine Machine Whatsapp 17732834799
1.Brief introduction of small egg tray molding machine:
This equipment is the one-side rotary molding machine.
It is applicable to the small-sized production with all kinds of paper tray.
Model |
Production/hr |
Mold |
Total power |
Labor force |
Paper consumption/hr |
Vacuum pump |
Pulper |
Drying equipment |
ZT-F2000 |
2000pieces |
6 chunks |
37kw |
4-6 people |
120kg |
11kw |
7.5kw |
7.5kw |
ZT-F1000 |
1000pieces |
3 chunks |
33kw |
3-5 people |
60kg |
7.5kw |
7.5kw |
5.5kw |
ZT-1500 |
1500pieces |
4 chunks |
49 kw |
4-6 people |
87kg |
11kw |
7.5kw |
16kw |
1. Total power;28.5 kw, the actual power consumption 20 kw.(per hour)
2. Paper 500 kilograms every day (8 hours)
3. 1.5 tons of water every day (8 hours)
4. The drying system, cart drying 20 meters (5.5 kw), cart drying cement size (0.5 m by 1.2 m) 90 pieces.16000 pieces of ordinary red brick.Conveyor belt drying 35-40 meters (18 kw), floor slab size reference (4 x 2500)
5. Coal consumption 1.5 tons every day (24 hours)
6. Air way need 200 shelves, shelves size (0.6 m * 0.7 m * 1.5 m), 2000 - square - meter air space, 5200 tray
7. Workers operating equipment, drying need 4 to 6 people, air basks in 3-4.
8. Production workshop covers an area of 60 square meters.
9. The equipment warranty, the motor warranty for 3 months, the host warranty for one year.Except the wearing parts.
10. The advantage;Safety performance is high, the product is homogeneous and suitable for egg and industrial packaging.
11. The loading without drying 10 cubic, including drying 13 cubic.
12. Weight does not contain dry 2 tons, including drying 3 tons.
2.Production Line of small egg tray molding machine
Pulping + Forming + Drying
3.Drying system
A.Natural Dryer
Semi Automatic,Economic
B. Traditional Conveyor Belt Dryer
Fully Automatic,Economic and High Efficiency
C. Single Layer Dryer
Fully Automatic, High Efficiency
D. Multi Layer Dryer
Fully Automatic, Save space, High Effciency
4.Packing & Shipping of small egg tray molding machine
Packing detail: packed in containers or as request
Shipping: by train ,by air, take a truck or as request
5.Our service:
A: The Seller will send two engineers to the buyer’s factory, they are responsible for the instruction of installing machine and training the operator until the machine working normally. All the expenses out of china (including the round-trip air tickets, foods and hotel, salary 70usd/day/enginner) should be borne by the buyer. The buyer should prepare onetranslator for our engineers to communication.
B: Forming machine warranty time: 12 month. (not including the mould and quick-wear parts)
The seller will provide below quick-wear parts for free to buyer:
Proximity switch --10 units.
Solenoid valve –1 unit (10 leather packing)
Mold core –10 boxes
C: Within 3 months, if Vacuum pump, motors or Air compressor was broken because of the quality of machine itself, the buyer should send the problem part back to seller , the seller will provide the new one immediately. But as for the wrong operation of the workers, the seller will not be responsible for them.
D: After guarantee period the Seller will send engineer on the Buyer’s request. All the expenses of this engineer will be borne by the Buyer’s company, and service charge will be negotiated by the Buyer and the Seller.
6.Company Intorduction:
Shijiazhuang Zengtuo Trading Co., Ltd has 25 Years experiences on manufacture various Kinds of Paper Pulp Molding Production Lines, ZT-3x4 Series, ZT-4x4 Series, ZT-4x8 Series, ZT-4x12 Series, ZT-5x8Series, ZT-F1000 Series, ZT-F1500 Series.We produce the whole system including molding machine, pulp machines, dryer, The capacity is variety from 1000 pcs per hour to 10000 pcs per hour. Every year we produce and sell over 200 sets egg tray machine to world 80 countries.
