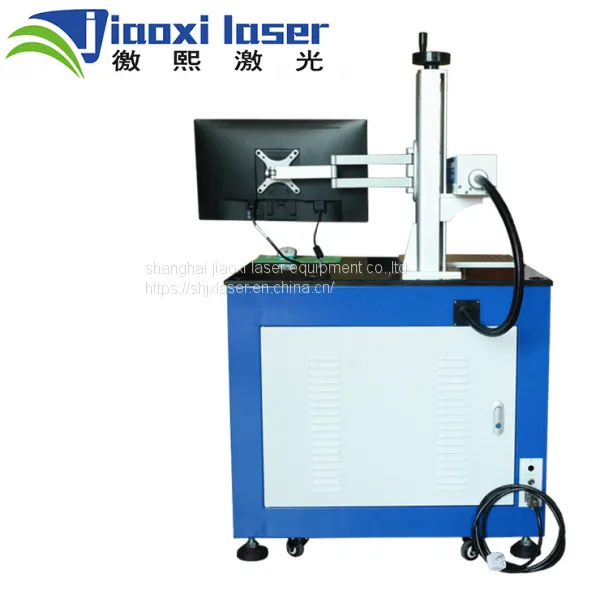

1. Description of Laser Marking Machine
Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It’s very cost effective. It boasts fast marking speed and high marking precision. It’s widely used and well accepted in prevailing international market.
2. Key Information of Laser Marking Machine
Product Type |
Laser Marking Machine |
|
Marking Materials |
Both metals and some non-metals Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold,silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) Non-metals: plastics, rubber, resin, carton box, etc. |
|
Applicable Industries |
electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts,hardware, tools, building materials, PVC tubes, etc.
|
Marking Content |
logo, character, serial number, bar code, data matrix |
|
Main Parts |
Fiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer |
|
Core Parts & Brand & Lifetime |
Core Parts: Fiber Laser Source Brand: IPG, SPI, Raycus, Max, JPT (optional) Lifetime: 100, 000 hours |
Cooling Mode |
Air Cooling |
Continuous Working Hours |
22 hours |
|
Marking Software |
English Version Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc. Easy Operation With Powerful Function |
Certification |
CE, FDA |
3. Feature of Laser Marking Machine
Firstly. Permanent Marking
Secondly. Free Of Maintenance, Without Consumables, Cost Effective
Thirdly. Long lifetime (100, 000 hours)
Fourthly. English Printing Software With Powerful Functions, Easy Operation

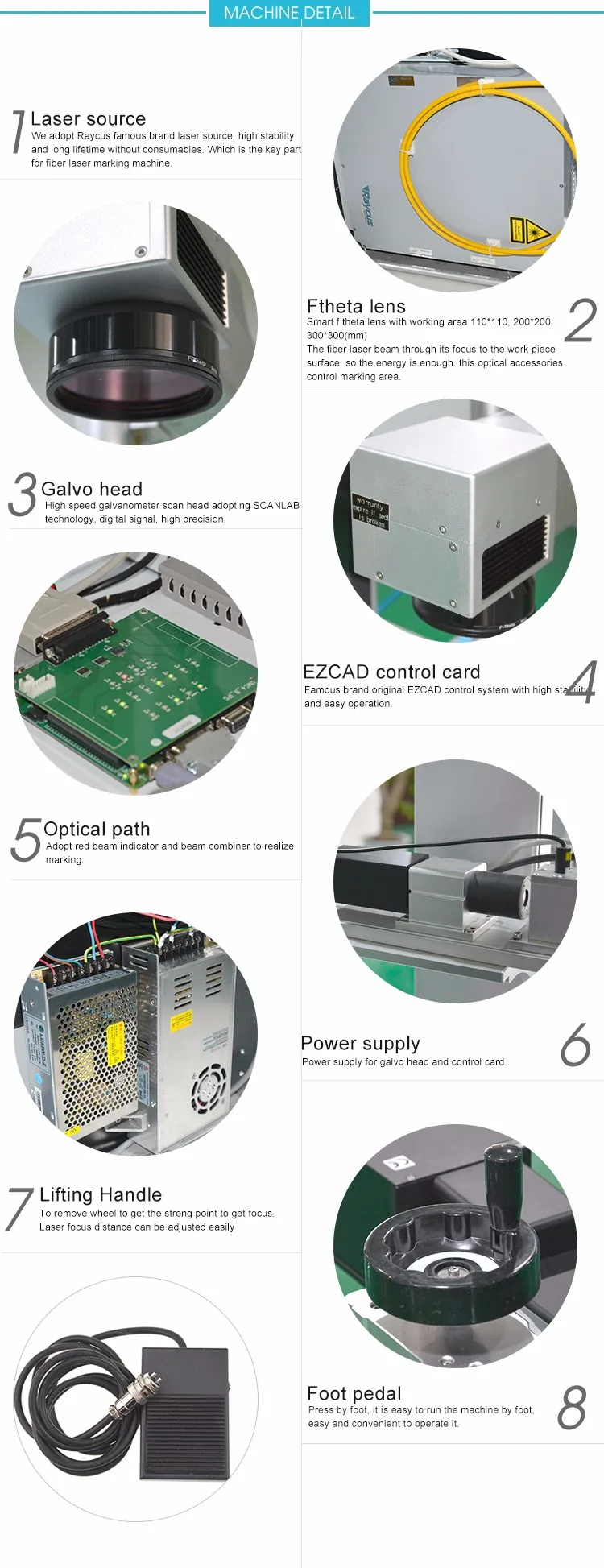

4. Main Parts of Laser Marking Machine
Fiber Laser Source
Scan Head
F-theta Lens
Marking Software
Rotary Device (for rotary printing)
5. Technical Parameters of Laser Marking Machine
Model |
JX-TSBB-Y30 |
Laser Power |
30W |
Wavelength |
1064nm |
Fiber Laser Source |
IPG, SPI, Raycus, Max. JPT (optional); Lifetime: 100, 000 hours |
Engraving Area |
Max. 110mmx110mm; Max. 200mmx200mm; Max. 300mmx300mm (optional) |
Min. Line Width |
0.03mm |
Min. Character Size |
≤0.5mm |
Engraving Speed |
≤16000mm/s |
Pulse Width |
≤60us |
Repetition Positioning Accuracy |
10urad |
Positioning Way |
Red Light |
Power Supply |
Single Phase AC 220V, 50/60HZ |
6. Marking Samples of Laser Marking Machine
7. Delivery Time & Package & Transportation Mode of Laser Marking Machine
Delivery Time: 5-7 working days after receive the payment.
Package: plywood case.
Transportation Mode: Laser marking machine would be shipped by ocean transportation, air transportation or by express.
8. Our Service Regarding Laser Marking Machine
We provide two-year machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer’s plan for machine repair. We will respond to customer’s question within two hours.
9. Quality Control of Laser Marking Machine
Laser marking machine is our core competencies. Quality is our culture. Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse. Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.
