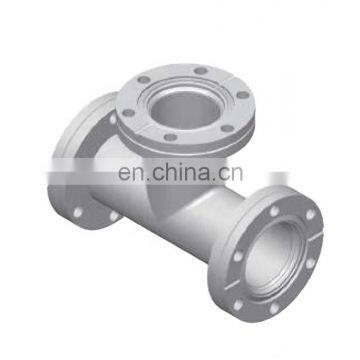

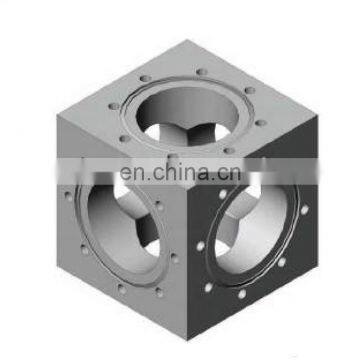

CF Stainless 304 Clamp Fitting for Vacuum Bellow With Flange Components
US$ 100 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVP
Place of Origin:
Shanghai, China
Model Number:
Fittings
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Promotion EVP Brand Replace Busch Series Vacuum Pump Air Filter and Blade Used in Rotary Vane PumpUS$ 56 - 56MOQ: 1 -
HFV High Vacuum Pump Oil China Make Identical to Leybold Alcatel Food Grade for Oil Diffusion PumpUS$ 46 - 46MOQ: 1
-
ISO Stainless Steel Vacuum Flanges Vacuum Components Vacuum Pipe Fittings SS304US$ 100 - 100MOQ: 1 Piece
-
ISO Stainless 304 Vacuum Fitting Vacuum Bellow With Flange ISO Flexible HosesUS$ 100 - 100MOQ: 1 Piece
-
EVP Brand Factory Price Russian Technology GDQ-J25/KF Pneumatic High Vacuum Damper ValvesUS$ 100 - 100MOQ: 1
Brand Name
EVP
Place of Origin
Shanghai, China
Model Number
Fittings
Shape
Equal
Technics
Casting
Connection
Flange
Head Code
Square
CF Stainless 304 clamp fitting for Vacuum bellow with flange components
Product Description
Features:
The high sealing effect and the low leak rates performance of CF flange connections is a result of gasket material. Whenassembling the CF flange connect, the knife edge is pressed into the flat copper gasket and force the seal material both axiallyas well as radially outwards to the flange. The material is enclosed and cannot flow even at high bakeout temperature. Due tothis deformation of the seal such connections may sometimes stick together. They can be easily separated with a special tool or screwdriver.
Offered in both rotatable and nonrotatable versions with through holes and tapped bolt holes. Metric tapped holes anduntapped holes flanges are identical products. UNC or UNF or other tapped holes can be ordered as specials.
Offered in both rotatable and nonrotatable versions with through holes and tapped bolt holes. Metric tapped holes anduntapped holes flanges are identical products. UNC or UNF or other tapped holes can be ordered as specials.
Specifications:

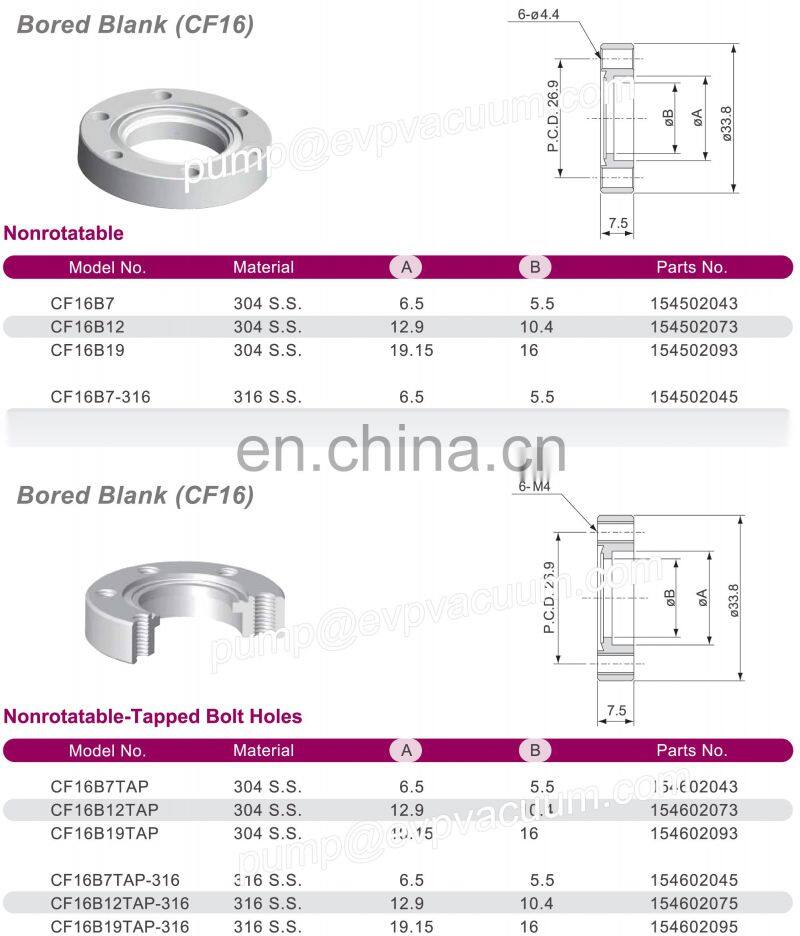

Blanks & Flanges: 304 S.S. (Other material available upon request)

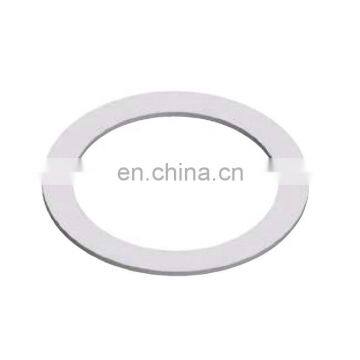

Gaskets : OFHC Copper or Viton Bolt : 304 S.S.
Temp. Range :-200 "C~ 450 "C( OFHC Copper )
Temp. Range :-200 "C~ 450 "C( OFHC Copper )
Vacuum Range : 10-13ttorr
Torque Rating : CF35 and smaller 220 kgf-cm
CF63 and larger 360 kgf-cm
Larger or special size available upon request
Torque Rating : CF35 and smaller 220 kgf-cm
CF63 and larger 360 kgf-cm
Larger or special size available upon request
Please click here for more information!
Tech specifications
Please click here for more information!
