Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Portable Surface Roughness Measurement Tester
Portable Surface Roughness Measurement Tester
US$ 980 - 15.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JIURAN
Place of Origin:
Shanghai, China
Model Number:
JKR220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Surface Roughness Measurement Tester GaugeUS$ 1,157 - 15.00MOQ: 1 Set -
Automatic Film ApplicatorUS$ 1,000 - 3,500MOQ: 1 Set
-
Coating Red Bule Devil Paint Shaker Shaker Disperser Homogenizer Paint Ink CoatingUS$ 5.00 - 15.00MOQ: 1 Set
-
Vacuum Film Applicator Bed Board PlateUS$ 200 - 500MOQ: 1 Set
-
Zirconia Beads For GrindingUS$ 30 - 100MOQ: 1 Kilogram
Brand Name
JIURAN
Place of Origin
Shanghai, China
Model Number
JKR220
JKR220 Surface Roughness Tester
| | JKR220 |
| Testing parameters | Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; |
| Measuring range (um) | Ra: 0.005-16.000 Rz: 0.02-160.00 |
| Sample length (mm) | 0.25, 0.80, 2.50 |
| Evaluation length(mm) | (1-5)L |
| Maximum drive stroke | 17.5mm/0.7inch |
| Indication accuracy | 0.001 |
| Indication error | ±(7-10)% |
| Variability | <6% |
| Data Storage | 100 groups |
| Power | Rechargeable li-battery |
| Working temperature | -20℃~40℃ |
| Relative humidity | <90% |
| Size | 158mmx63.5mmx46mm |
| Weight of Host | 0.3kg |
Main feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance.

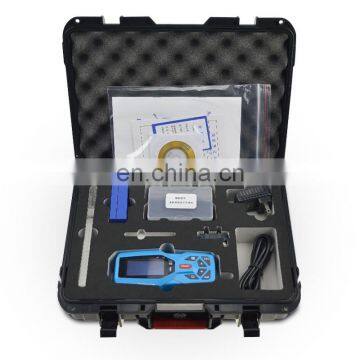

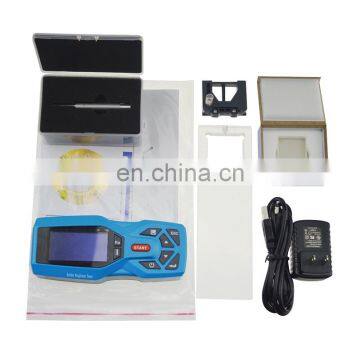

Standard configuration:
| | Name | QTY |
| 1 | Host | 1 |
| 2 | Standard Sensor | 1 |
| 3 | Calibration block and bracket | 1 |
| 4 | Bracket | 1 |
| 5 | Charger | 1 |
| 6 | Adjustable support | 1 |
| 7 | Operating manual | 1 |
| 8 | Warranty card | 1 |
| 9 | Certificate of approval | 1 |
| 10 | Instrument case | 1 |
