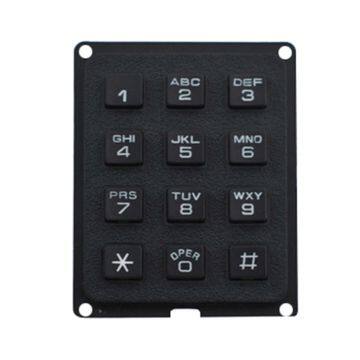

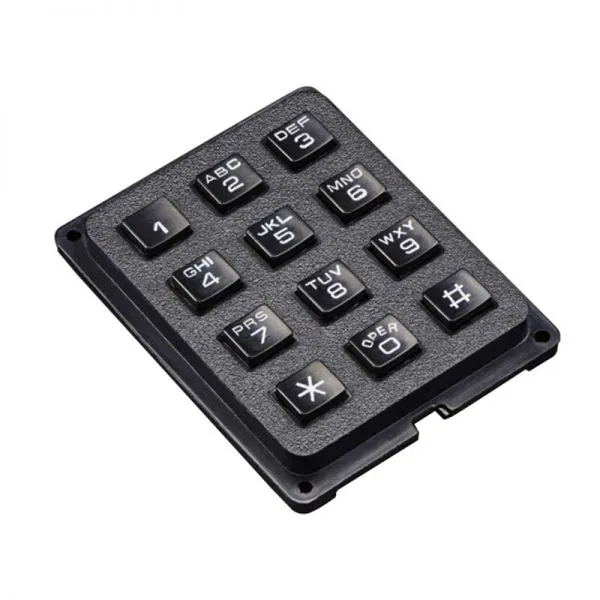

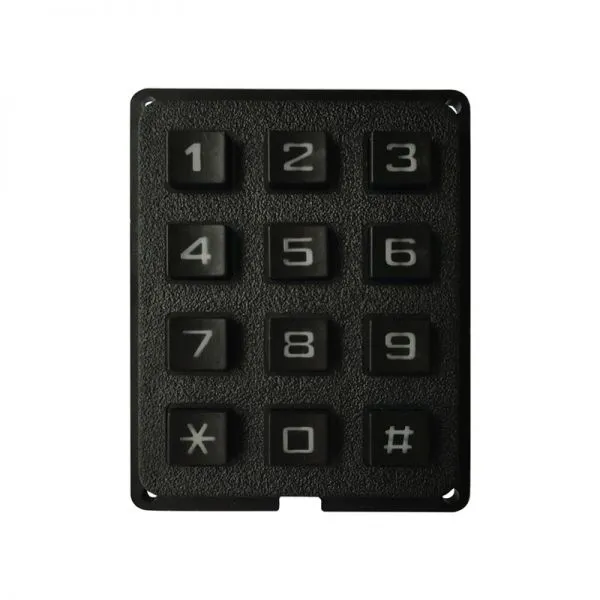

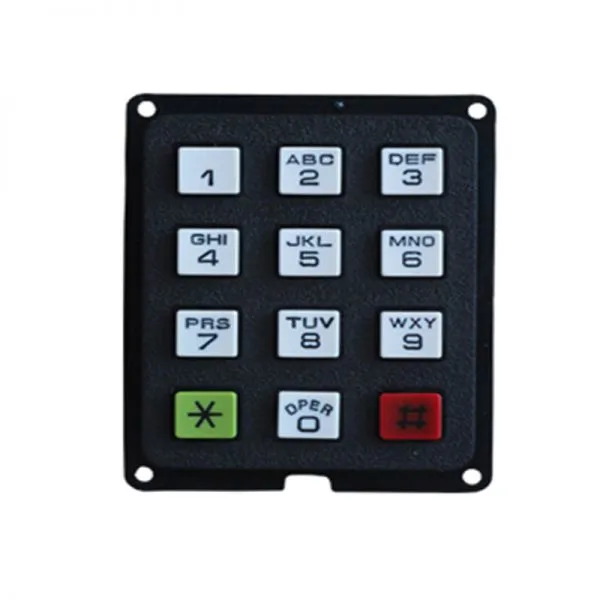

3x4 Safe Key and Natural Silicone Electroconductive Rubber Keypad
1.12Keys vandal-proof IP65 zinc alloy 3*4 matrix keypad.10 number keys, 2 function keys.
2.Keys are good touch feeling and accurate data input without any noise.
3.Easy to install and maintenance; flush mount.
4.Our keys and key frame are made of using special PC / ABS plastic.
5.Font and pattern of key surface can be customized.
6.The keypad is anti-drilling and removal-proof.
7.The keypad uses double-sided PCB, touching gold-finger use of gold process; Good contact.
8.Conductive rubber is made of natural silicone,corrosion resistance, aging resistance.
1.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.
2.The colors of frame and keys:b lack character on white background;white character on black background.
self-service library | self-service kiosk | CNC machine |
household applications | oiling machine | charge spot |
industrial telephone | ATM | access control |
ticket machine | vending machine | medical facility |
security system | fingerprint attendance machine |
Model number | B110 |
Defend Grade | IP65 |
Keys | 16 keys |
Vandal resistant | IK09 |
Electrical lifetime | > 5 years |
Contact resistance | 200 ohm (max) |
Current Rating | appr. 45mA |
G.W. | 0.100kg approx |
Dimensions | 64mm *51mm*11mm |
Frame/keys materials | Plastic |
life span | ≥500,000 |
Elasticity of key | 2.5-3N |
Key Stretch | 180-200g |
Travel Distance | 2mm |
Atmospheric pressure | 60-106Kpa |
Operate Temperature | -25~+65℃ |

General Packing Details:
One small white box for 2 pieces
40 pcs per carton
Carton Size:430x350x115cm.
Customized package requirements are also available.

Shipping Method:
For samples or small orders, we'd like to recommend to ship by express and we have good cooperation with DHL,UPS,FEDEX and TNT.
For large volume orders, we can also arrange shipping by air or sea.
1. Q: How long is the warranty period?
A: 1 year.
industrial keypad
2. Q: How to pay?
A: TT,Paypal, Western Union, Alibaba Trade Assurance.
metal keypad
3. Q: How to pay the deposit?
A: 100% T/T for small order, and 30% deposti and 70% balance before shipping for large orders.
numeric keypad
4. Q: How to ensure the quality of the products?
A: Every piece of our products are under strict and repeat tests before delivery.
And representative inspector are also welcomed.
backlit keypad
5. Q: What about the delivery time?
A: 1000 pcs or more within 30 days and samples will be shipped within 2 days. m
keypad
6. Q: How will you deliver the products?
A: Samples and small orders usually are shipped through international expressa and large ones are shipped by air or sea.
7. Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery.
customized keypad
8.Q: Do you accept customized keypad ?
A: Yes, OEM and ODM are available for us, Our R&D team work have been in this field for 11 years.
