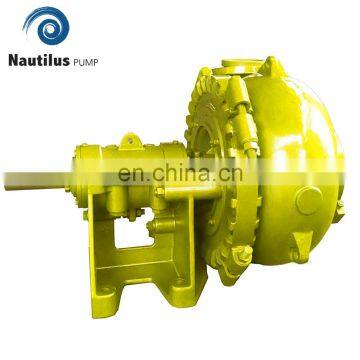

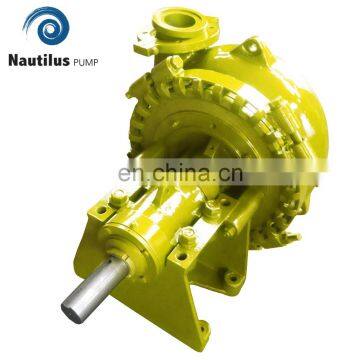

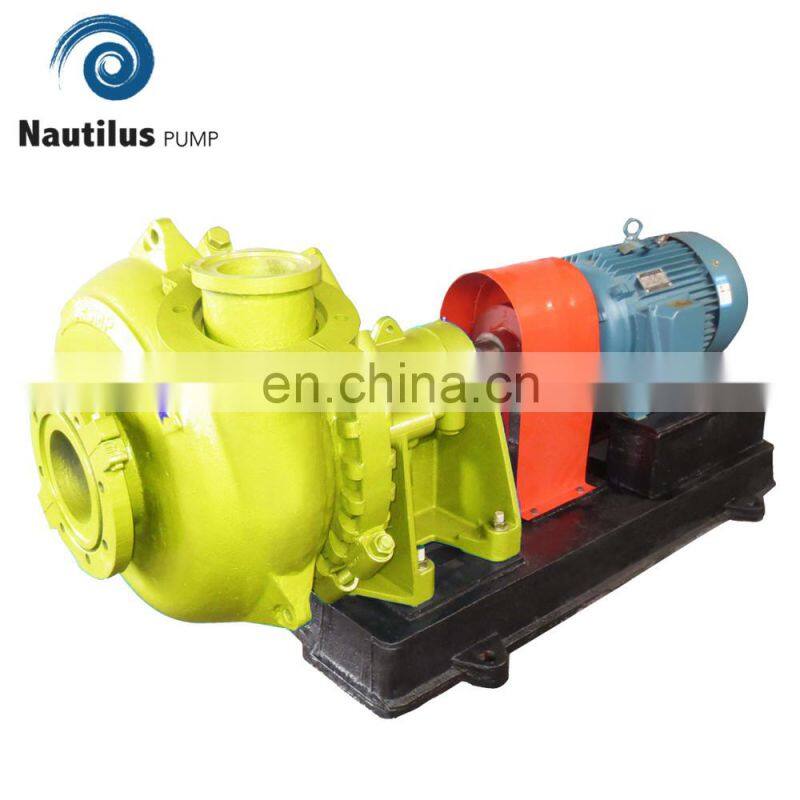

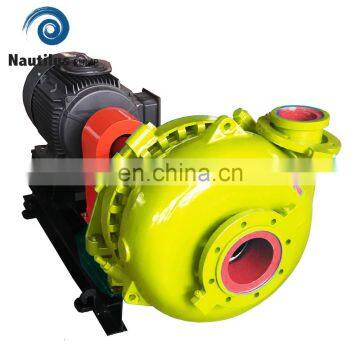

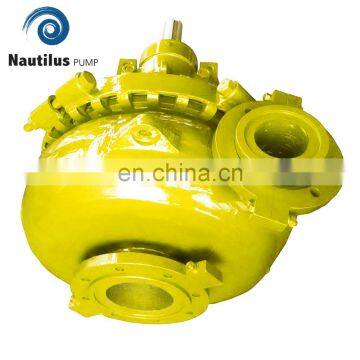

T series sand dredge gravel pump is a kind of cantilevered single-stage centrifugal pump. It can be equipped with diesel engines or electric motors driven directly. The
wet parts are made of anti-wear Cr alloy, including impeller, pump body , front plate
and back plate.
Model List
| TYPE | Capacity | Head | Speed | Allowable Max.Solids size | Weight |
| 6X4ND-G | 36-252 m3/H | 3.5-51 m | 600-1400 r/min | 82 mm | 460 KG |
| 8X6NE-G | 137-580 m3/H | 10-48 m | 800-1400 r/min | 127 mm | 1120 KG |
| 10X8NF-G | 220-1000 m3/H | 13-50 m | 500-1000 r/min | 178 mm | 2250 KG |
| 12X10NG-G | 360-1520 m3/H | 11-58 m | 400-850 r/min | 220 mm | 4450 KG |
| 14X12NG-G | 500-3100 m3/H | 6-66 m | 300-700 r/min | 241 mm | 5400 KG |
| 16X14NG-G | 650-3610 m3/H | 9-48 m | 250-500 r/min | 254 mm | 12247KG |
Features
b) The impeller and liner are all made of high chrome alloy(Cr26) material with
features of anti-wear, anti-abrasive, high efficiency and long service life.
c) Sand pump's bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when
being repaired. Bearing assembly use grease lubrication.
Application
a) Ports, rivers, lakes and other dredging, dredging, removal of mud and so on;
b) The extraction of sand, gravel, etc., sea construction projects;
c) Iron ore, tailing, concentration and other mine slag, plaster and all the solution containing solid matter;
d) In metallurgy, steel and other industries used to absorb high concentrations of
tailing, slag and high temperature iron slag, iron and so on;
e) Pumping sand, gold and so on.
