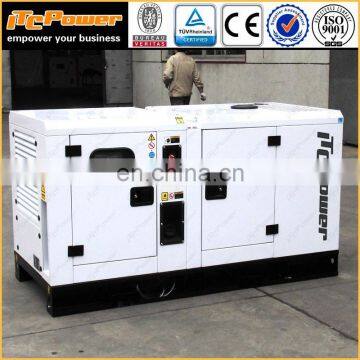

DG22KSE 22kVA FAW Engine 3 Phase Water Cooled Diesel Silent Generator6

DG22KSE 22kVA FAW Engine 3 Phase Water Cooled Diesel Silent Generator6 thumbnail-1
DG22KSE 22kVA FAW Engine 3 Phase Water Cooled Diesel Silent Generator6 thumbnail-2
DG22KSE 22kVA FAW Engine 3 Phase Water Cooled Diesel Silent Generator6 photo-1
DG22KSE 22kVA FAW Engine 3 Phase Water Cooled Diesel Silent Generator6 photo-2
US$ 3,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ITCPOWER
Place of Origin:
Jiangsu, China
Model Number:
DG22KSE
Contact Supplier Request Quote Chat Now
Hyperflow Flow Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ITCPOWER
Place of Origin Jiangsu, China
Model Number DG22KSE
Rated Current 28.9A
Output Type AC Three Phase
Speed 1500rpm/1800rpm
Frequency 50HZ/60HZ
Rated Voltage 230/400V
Rated Power 20-22kVA

DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6

ITCPower DG22KSE

22kVA china FAW engine 3 phase water cooled diesel silent generator

Model   DG22KSE
Prime Power KVA 20
  KW 16
Standby Power KVA 22
  KW 18
Power Factor   0.8
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 28.9
Controller   IL-NT MRS10
Control Voltage V 12
Battery Capacity AH 55
Coolant Capacity L 10.2
Fuel Tank Capacity L (Base frame) 77.5
Fuel Consumption L/Hour 5.7
Running Time Hour 12
Sound @7 meter                       Db 62
Open Type Product size L×W×H 1560×900×980
Open Type Weight net kg 505
Canopy type product size L×W×H 1950×900×1120
Canopy Type Weight net kg 786
loading capacity units/container


Model   4DW91-29D
Prime power KW 21
Structure   4 Cylinders,inline
Fuel type   Diesel
Fuel consumption L/Hour 6.3
Lubricant consumption L/Hour 0.0315
Governor   Mechanical
Coolling   Water
Lubricant capacity L 8
Air intake flow m³/min 1.7
Exhaust gas flow m³/min 4.6
Exhaust gas temperature °C 450
Exhaust gas back pressure Kpa 5
Compression ratio   17
Aspiration   Natrual
Bore  mm 90
Stroke mm 100
Displacement L 2.5
SAE   4/7.5
Dimension L×W×H 734×530×682
Net weight Kg 240


Model   184E
Prime power KVA 23
Structure   1 bearing
Excitation mode   Self-excitation
Insulation class   H
Protection class   IP23
TIF   <50
THF   <2%
Air flow m³/s 0.071
AVR Model   AS440





About ITCPower

ITC POWER Group is a company specialized in the development,manufacturing, importing and distribution for Generating Sets up to 500 Kva, Engines, Water Pumps and High Pressure Washers both gasoline and diesel powered.
We are Licensee Company for HYUNDAI brand generators for more than 35 countries all over the world.
ITC POWER has developed a large range of Generating Sets and Engine pumps in order to cover all needs for professional and consumers.
Our mission is to offer a complete range of products at competitive prices and excellent performances with the best After Sales Service at the same level as other well known brands in EUROPE and the US and in JAPAN.
To achieve this goal, we have established our own production facilities with own staff lo check "in situ" all the processes of assembly, settings and testing to make sure that the products delivered are the products expected for our customers quality wise. Each unit is tested one by one during the assembly process and more deeply before packing to assure a constant and controlled quality to our customers.
Another point of greatest attention is the After-Sales Service.
We have the most complete information available to our partners and distributors to have the best support for the maintenance and repair of our machines.
The firm was founded in EUROPE on 2001 by two partners with extensive experience in the international markets for machinery and especially the Generating Sets and Water Pumps.
The range is in constant evolution to meet the needs of our most exigent customers.
ITC POWER is present In 5 continents and more than 50 countries with Europe, America, Oceania and Africa as our main markets.
Our facilities with 120 persons, 20.000sq meters allow us to produce over 100.000 units per year.



ITCPower Team
DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6



ITCPower Factory
DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6



ITCPower generator Certificate   Show

DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6





ITCPower generator Show
DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6


How to come to ITCPower

DG22KSE 22kVA FAW engine 3 phase water cooled diesel silent generator6


Service assurance of generator and other machines



1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.



2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.



3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.



4. Spare parts supply:
We provide all kinds of spare parts and technical support.



5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.



ITCPower, professional supplier of power,changzhou jiangsu china.
