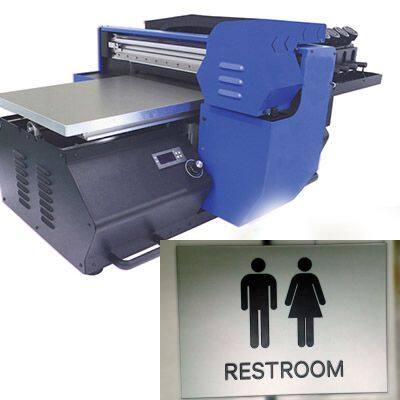

UV Acrylic Digital Printing Machine Printing Size 32*56CM

Key words:Digital Printing Machine,Acrylic Printing Machine,UV Printing Machine

UV Acrylic Digital Printing Machine Printing Size 32*56CM

HH-UV3050-Red

Specification

Key words:UV Printer,Signature Printer, Art Galleries Printer

UV Signature Printer,UV Art Galleries Printer

Print head:F1080

Printing method: White/Multicoloured/Varnish

Max printing size:32cm*56cm

Printing mode:CMYKWW

Printing height:10CM

Printing precision:360dpi*720dpi*1440dpi

Printing Speed:180seconds per A3 image

Ink type: UV environmentally ink

Ink consumption:15ml per squire meter

Ink system:250ml*6 colors

Operation system:win95,98,2000,XP,win7,win8,win10

Voltage:110-220V  50-60HZ

Printing interface:USB2.0

Solidification:LED UV Lamp

Net and Gross weight:62kg/84kg

Outsize:820*625*430(mm)

Packaging size:920*750*620(mm)

Warranty:3years,Not included Printing head

Functions :

1,Automatic curing when printing by using LED UV Lamp.

2,Automatic pump out the waste ink when cleaning the print head.

3,Automatic detect the height of object to make sure print position very well.

4,Using fan to cool down the machine when operating.

5,Automatic stirring ink.

6,Being sensitive with the volume of ink, to make sure the ink is enough for proceeding.

Advantages:

1. It can print out white ink and print on both light and dark products.

2. It can print out the embossing  effect.

3. It can print on case of any color.

4. It dry immediately after printing.

5. It can print picture from computer onto flat product directly.

FAQ

1. What materials this printer can print on?

POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.

2.What is the printer production capacity / printing speed?

Single head uv printer is 180 sec. for A3(420*297mm) page

3.How much will cost for printing one square meters?

We can calculate the cost according to the price of ink, kindly note the ink consumption is about 15ML/M2.

4.How to move the machines?

UV printers belong to precise instrument, when you move them, please turn off all power, remove the cartridges and waste cartridge, keep other parts on the printer, and handle with care, keep shaking and heavy goods away from the printer.

5.How to make 3D effect texture.

Freecolor 3D printing technology, to accumulate UV ink to reach 3D effect. The 3D range can re-print to reach more 3D effect, e.g. Mountain, use the can reach more layering.

6. How to do when the status of the printhead is not good ?

A.Turn off power, move the printhead to the initial position, check if the printhead and cap top is in the same line.Do one time cleaning action, and print the test status.

B.If above operation still can't solve this problem, then disassembly the printhead, cleaning the printhead manually or use cleaning machine to clean the printhead

C.If the status keep the same after above all operations, then check other pars or change a new printhead to test.

7. How to maintain the printer if couple of days no using the printer?

If the printer won't use more than 3 days, you must cleaning out all ink in the printhead, otherwise, the ink will be dry because the solvent volatilization, even cause irreversible damage for the nozzles of the printhead. Below is the solving methods:

A.Move the printhead to the cleaning position, put a corrosion resistant container below the printhead for filling the waste cleaning solution.

B.Turn off the power of the printer

C.Unplug the printhead from the ink damper, then using the special cleaning solution to cleaning the printhead by glass syringe, and do this some times, at last do not suction out all cleaning solution from the printhead, put enough cleaning solution in the inner of the printhead, because the printhead can keep the nozzles moisture.

D.Please put the printhead into the clean container and seal it.

9.What RIP your machine use ? Did your price include RIP?

All prices include RIP, Different machine use different RIP, but all can reach the best vivid color.

10.Could your technician Come and install the machine to our address?

No problem, The technicians can come install and train your operators in person, but all fees like round tickets, VISA, lodging and boarding should be assured by buyer.

11.How long time of the warranty for your printer?

Our quality is guaranteed 100%, the printers have one year warranty, the spare parts can be replaced within 3 year free of charge, except for the print head and some damageable parts. The technician can provide help for print-head problems.we also provide online service for fast trouble sulution by teamvewer, wechat, whatsapp etc. we could send engineer to your place if problem can not be solved by online guide. Customer pay the tickets and hotel for our engineer.

12.Can we buy the ink from our local market or just yours?

Sure. You can buy the ink from other suppliers, as long as the ink is suitable for our printer and UV led lamp wave length.

Supply Ability:100pcs/month.

Packaging and shipment:

Packaging:

Wooden box with export standard.

Production finish time:3-5days.

Shipment:

The production will be shipped as required by sea cargo/air/truck/express.
