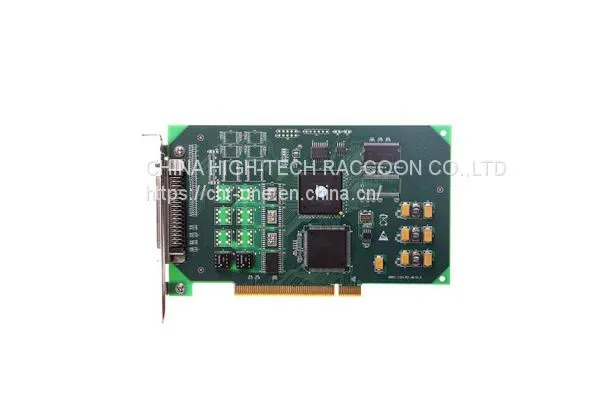

CHR MIL-STD-1553 PCI Single Channel Interface Card
CHR's MIl-STD-1553 PCI single channel interface cards are independently developed and produced. These cards are based on the latest 32-bit FPGA protocol engine and has reliable performance. MIL-STD-1553 Serial Data Bus is widely used in analysis, simulation, monitoring and test platform construction，as well as other fields. CHR can provide customized MIl-STD-1553 interface cards.
Key Features:
* Single Dual Redundant MIL-STD-1553 channel.
* PCI bus.
* Single function and Full function optional:
Single function: BC or RTs or Mon
Full function: BC and RTs and Mon
* Advanced 32-bit FPGA protocol engine.
* Communication rate: 1M, 4M and 1/4M optional:
1M: Inter-message gap times up to 1μs
4M: Inter-message gap times up to 250ns
* 32-bit, 1μs hardware time tags.
* Large on-board memory: 16M*16bit.
* Software support: Windows，Linux，LabVIEW/RT，RTX, QNX and other operating systems.
* API and Customized ICD software available.
* Programmable response time: 0-32768μs.
* Programmable single message sending interval time minimize to 1ms.
* Support interrupt and monitor message receive.
* Programmable message insert.
* Size: Standard PCI size：175*106mm （4.2*6.9in.)
* Connector: SCSI-68 connector.
* Extended temperature model: -40℃～+85℃.
* Humidity：0-95% RH, noncondensing.
CHR 1553 PCI interface card part Number:
CHR NO. |
No LOGO No. |
CHANNEL |
FUNCTION |
RAM |
CHR31301 |
1553-PCI-1S |
1 |
BC,RTs or Mon |
1M |
CHR31311 |
1553-PCI-1M |
1 |
BC & RTs & Mon |
1M |
CHR31321 |
1553-PCI-1SB |
1 |
BC,RTs or Mon |
4M |
CHR31331 |
1553-PCI-1MB |
1 |
BC & RTs & Mon |
4M |
CHR31341 |
1553-PCI-1SC |
1 |
BC,RTs or Mon |
1/4M |
CHR31351 |
1553-PCI-1MC |
1 |
BC & RTs & Mon |
1/4M |
