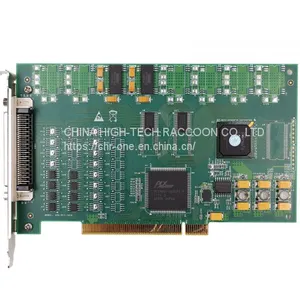

CHR Arinc 429 PCI 8 channels interface modules
CHR Arinc 429 PCI interface modules are designed base on the most advanced 32-bit Arinc FPGA protocol engine. CHR Arinc 429 PCI interface cards have configurations with 2 channels, 4 channels, 8 channels and 16 channels. All cards have high reliability and stable performance. They are widely used in the test of Arinc 429 bus in PCI system, the construction of simulation, monitoring and test platform of Arinc429 bus, and the analysis of airborne electronic system. CHR offer customized Arinc 429 interface cards.
* 8 Tx channels, 8 Rx channels.
* Software selectable Tx/Rx Arinc 429 date format.
* Programmable system time.
* Timely sending, date can be updated at any time.
* Receive filtration and interrupts.
* Baud rates selectable: 10K,12.5K,48K,50K,100K,150K.
* Transmit FIFO： 511 ×32 Bit,
Receive FIFO：（1M-1）×32Bit.
* Size: 175mm ×106mm.
* Connector： SCSI-68 connector
* Extended temperature model: -40℃～+85℃.
* Humidity：0-95% RH, noncondensing.
* Software supports:
Windows7（32bit） 98/2000/2003/xp system.
VxWorks5.5/6.8/6.9 ,RTx,QNx,LabviewRT system.
DDL Dynamic link library.
Support standard development platforms such as VC,VCI,LabVIEW.
Windows platform demo program supply.
CHR Arinc 429 PCI interface modules part numbers:
CHR No. | No Logo, No. | Channel |
CHR32302 | 429-PCI-22 | 2TX/2RX |
CHR32304 | 429-PCI-44 | 4TX/4RX |
CHR32308 | 429-PCI-88 | 8TX/8RX |
CHR32316 | 429-PCI-1616 | 16TX/16RX |
