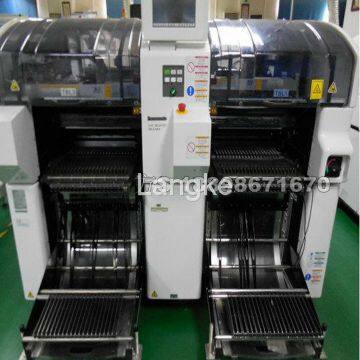

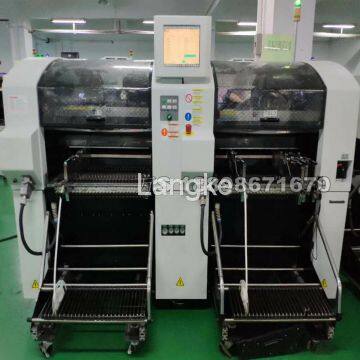

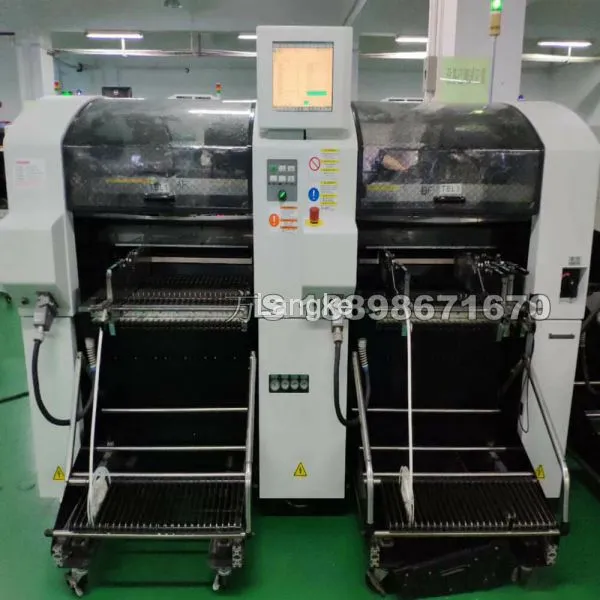

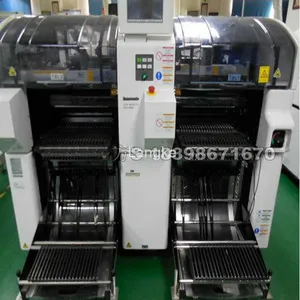

Original Panasonic CM602 SMT Placement machine
Specifications
Model ID |
CM602-L |
PCB dimensions (mm) |
L 50 x W 50 to L 510 x W 460 |
High-speed head |
12 nozzles |
Max.speed |
100 000 cph (0.036 s/chip) |
Placement accuracy |
±40 µm/chip (Cpk1) |
Component dimensions (mm) |
(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm |
High-flexibility head |
LS 8 nozzles |
Max.speed |
75 000 cph (0.048 s/chip) |
Placement accuracy |
±40 µm/chip, ±35 µm/QFP 24 mm, |
Component dimensions (mm) |
(01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8 |
Multi-functional head |
3 nozzles |
Max.speed |
20 000 cph (0.18 s/QFP) |
Placement accuracy |
±35 µm/QFP (Cpk1) |
PCB exchange time |
0.9 s (Board length:up to 240 mm Under optimum conditions) |
Electric source |
3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA |
Pneumatic source *1 |
0.49 MPa, 170 L /min(A.N.R.) |
Dimensions (mm) |
W 2 350 x D 2 290 *2 x H 1 430 *3 |
Mass *4 |
3 400 kg |
Used Panasonic CM602-L, SMD MACHINE, Panasonic pick and place machine, Panasonic CM602, CM602,Panasonic placement machine, Panasonic chip mounter, Panasonic chip shooter, Panasonic smt machine, Panasonic smd machine, smt machine, smt pick and place machine, smd pick and place machine, surface mount technology, second-hand CM602, second hand Panasonic pick and place machine, second-hand Panasonic chip mounter, used Panasonic machine, used chip mounter...
The other machines you might looking for:
Lead free reflow oven, solder paste printer, pcb linking conveyor, solder paste inspection machine, assembly line, wave solder...
please kindly click the above keyword to see the more detailed machine.
Contact: Elaine
Wechat: czsffy1223
Skype: elaine19920114
E-mail: elaine@smdmachine.com / smttechpnp@gmail.com
http://www.smdmachine.com
Address: Shenzhen/Zhongshan, Guangdong Province, China
