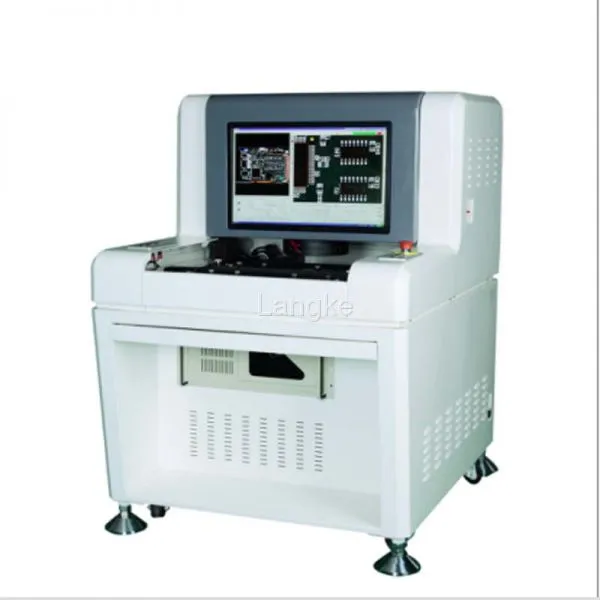

High Precision off-line AOI Machine
Applicable PCB |
Application |
After stencil printing, after/before reflow oven, Can check both sides and multiple PCBs at same time |
PCB dimension |
20×20mm-450×350mm |
|
PCB thickness |
0.3-5.0mm |
|
PCB space |
top：≤30mm; bottom:≤45mm |
|
Inspection items |
After reflow oven |
Missing or excessive component, misalignment, uneven, edging, opposite mounting, wrong or bad component; excessive or missing solder, empty soldering, bridging, solder ball, IC NG ,copper stain etc. etc. |
Visual system |
Image system |
CCD camera |
Lighting system |
Three-channel white led light source or RGB light source |
|
Resolution ratio |
18um(FOV dimension：28.8 mm*21.6 mm) |
|
Inspection mode |
Color calculation, color extraction, gray-scale operations, image matching, etc |
|
Mechanical system |
X/Y driving system |
AC servo motor, precise ball screw |
PCB fixing mode |
Auto fixture |
|
Positioning accuracy |
||
Moving speed |
800mm/s(MAX) |
|
Orbital adjustment |
Manual |
|
Software system |
Operation system |
Windows XP |
Interface language |
Chinese/English optional |
|
Inspection output |
PCB ID, PCB description, component description,defect description, defect image |
|
Power |
AC220±10%，50/60HZ,1KW |
|
Operation temperature |
-10-40℃ |
|
Operation humidity |
20-90%RH(non condensing) |
|
Machine dimension |
900*1100*1300mm |
|
