SMD Inline AOI Machine for SMT Production Line

Name: SMD Inline AOI Machine for SMT Production Line
Brand: LANGKE
SKU: 160211685
Availability: InStock

SMD Inline AOI Machine for SMT Production Line thumbnail-1

SMD Inline AOI Machine for SMT Production Line thumbnail-2

SMD Inline AOI Machine for SMT Production Line thumbnail-3

SMD Inline AOI Machine for SMT Production Line thumbnail-4

SMD Inline AOI Machine for SMT Production Line photo-1

SMD Inline AOI Machine for SMT Production Line photo-2

SMD Inline AOI Machine for SMT Production Line photo-3

SMD Inline AOI Machine for SMT Production Line photo-4

US$ 1000 - 1500 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

LANGKE

Place of Origin:

China

Model Number:

A2000

Contact Supplier Request Quote Chat Now

Langke

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

5 days

Product Details
Company Profile
Contact Us

Brand Name LANGKE

Place of Origin China

Model Number A2000

inline AOI machine for SMT production line

keywords: AOI machine, AOI, automated optical inspection, AOI machine cost, AOI machine for PCB, SMT AOI machine, SMT AOI, SMD AOI, SMD AOI machine

CATEGORY	ITEM	SPECIFICATION
Recognition System	Inspection	The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction(RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc... More than 30 kinds of the most advanced algorithms.
	Camera	Distal high speed CCD 5M Pixel camera
	Resolution	20um（25um/15um for option）
	Lens	High-resolution telecentric Lens
	Depth of focus	5mm (option: other specification)
	Lamp-House	Rings RGB LED lamp-house. Optional: special white coaxial lamp-house.
	FOV	40.95mm×40.95mm (20um) ,30.68×30.68mm(15um)
	0201 Chip
	Per-image Time	220~450ms
	Paste Printing Defects	Missing, overflow, insufficient, pasting open, stain
	Component Defects	Missing, shift, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged
	Solder Defects	Overflow, insufficient, short solder, stain
	Wave Soldering Inspect	Overflow, insufficient, short, Excess Solder, solder void
	Inspection Items	0201&0.4mmpitch （20um） 01005& 0.3mm pitch（15um）
Machine System	PCB Conveyor	Left to right(Optional, right to left) PCB fixing: bottom-up, PCB warp correction. Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Orbit clearance: 900±20mm
	PCB Size	50×70mm-510×460mm can make bigger size according to clients’ demands
	PCB Thickness	0.5mm – 3.0mm
	PCB Warp Tolerance
	Component Clearance	TOP≤30mm, BOT≤30mm（can be customized）
	Driver	AC server， camera moves in the directions of X/Y.
	Orientation
	Moving Speed	Standard：500mm/s，Max：800mm/s
Soft System	Operation System	Microsoft Windows 7 X64
	Characteristic	Basis on Vector analysis algorithm, integrated variety of software algorithms of Color Extraction、 Luminance Extraction 、Color Distance，for SMT components and the position of the solder joints , appearance , accurate positioning and analysis accurately eliminate all kinds of bad points
	Operation	Graphic programming, Chinese, English
	Programming	CAD、handwork programming, Support offline programming（Optional）
	Computer	Industrial Computer, Intel four-core I7 CPU, Memory:16G, Hard disk: 1TB
	Display	21 inch TFT
Network	Multi machine control	The operator can control multi same machines in the control terminal
	Network	NG adaptable, check and correct PCBA defects at repair station
	Communication port	SMEMA, RS232,RJ45
Other	Air Supply	0.5MPA.80cm³/min
	Machine Dimensions	105×110×160cm(wihout include light）
	Weight	750kg
	Power Supply	AC220V, 10%, single phase 5A 50/60HZ, power consumption1000W with UPS inside
	Working Environment	Temperature10-40℃, humidity 30-80% RH

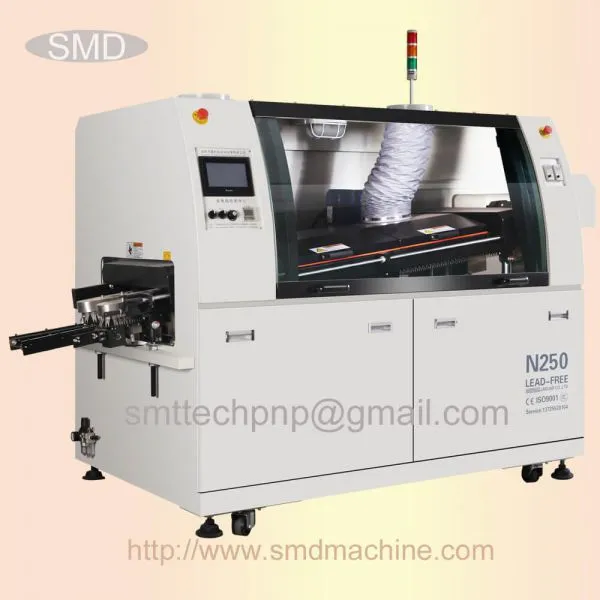

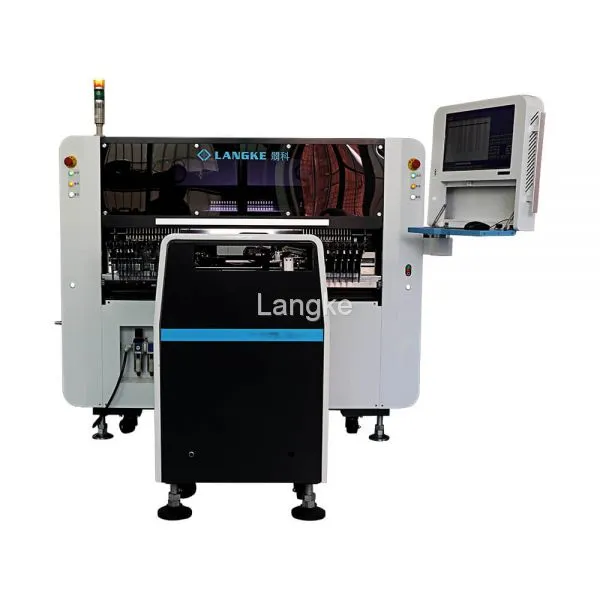

we also sell different smt machine and spare parts as following

SMT lead free reflow oven machine

SMT chip mounter machine

DIP lead free wave soldering machine

SMT feeders: Samsung, juki, Yamaha, Panasonic, Fuji, Sony...

Welcome to contact for more detailed:

Please scan the following code and save

Mobile:whatsapp/wechat:+86 18898671670

QQ: 2277025763

elaine@smdmachine.com

smttechpnp@gmail.com

http://www.smdmachine.com

Product Tags: AOI machine , SMD AOI machine , online AOI , aoi manufacturer , inspection machine , smt aoi , smd aoi , inspection supplier , inspection machine price
