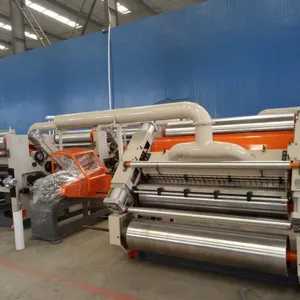

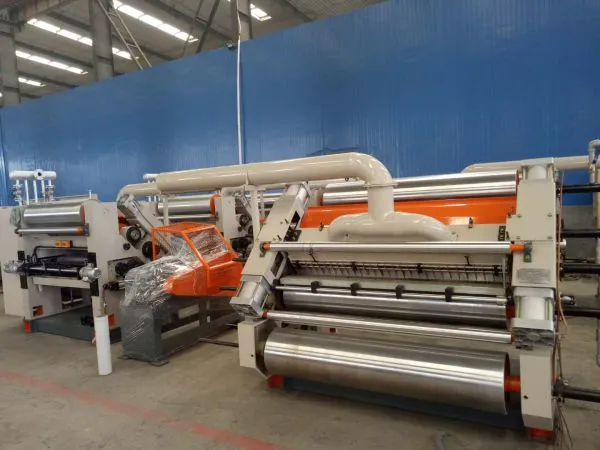

Help CenterFingerless Type Single Facer Corrugated Cardboard Machine/Single Facer Carton Box Machine
Related Products
-
2 Ply Corrugated Cardboard Production Line/single Face Corrugated Paperboard Production/carton Packing MachineryUS$ 50000 - 60000MOQ: 1 Set -
Single Facer For Corrugated Cardboard Making MachineUS$ 25000 - 35000MOQ: 1 Set
-
Hydraulic Shaftless Mill Roll StandUS$ 6580 - 7320MOQ: 1 Set
-
5-layer Corrugated Cardboard Production LineUS$ 280000 - 350000MOQ: 1 Set
-
TOP SELLER 5 Ply Corrugating Machine Transmission Machine, Down Stacker,DMT-120 Paper Sheet Delivery and Side ConveyerUS$ 9800 - 10800MOQ: 1 Set
Structural features:
1.Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet,not less than 1.5 meters away from the host,Fully enclosed full operation side.
2.Base and wallboard cast iron wall,Wallboard thickness130mm,universal Joints.
3.Corrugated roller material adopt 48CrMoalloy steel,quenched,Laser hardening,Surface finish,main roll of corrugated diameter φ280mm,surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
4.Pressure roller φ284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
5.Pneumatic control glue to glue back, glue roller diameter φ215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.
6.Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper.φ160mm cylinder with compression cylinder.
7.Preheat roll adopt seamless steel pipe production by tiangang φ300mm,connecting with metal Hose.
Regular technical parameters:
l effective width:1800mm
l operation direction:left or right(determined in accordance with customer plant)
l design speed:100m/min
l temperature range:200—260℃
l corrugated flute:(UV type or UVV type)
Roller Diameters parameters:
l diameter of corrugated roller: φ280mm
l diameter of pressure roller: φ284mm
l diameter of glue roller: φ216mm
l diameter of preheat roller: φ320mm
Powered motor parameters:
l main drive motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard
l suction motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard
Related Products
FAQ
Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company , so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
