| HRB-1800 SINLGE FACER LINE | ||
| 1 | ELECTRIC MILL ROLL STAND | 1 SET |
| 2 | SINGLE FACER ELECTRIC HEATING | 1 SET |
| 3 | NC SHEET CUTTER | 1 SET |

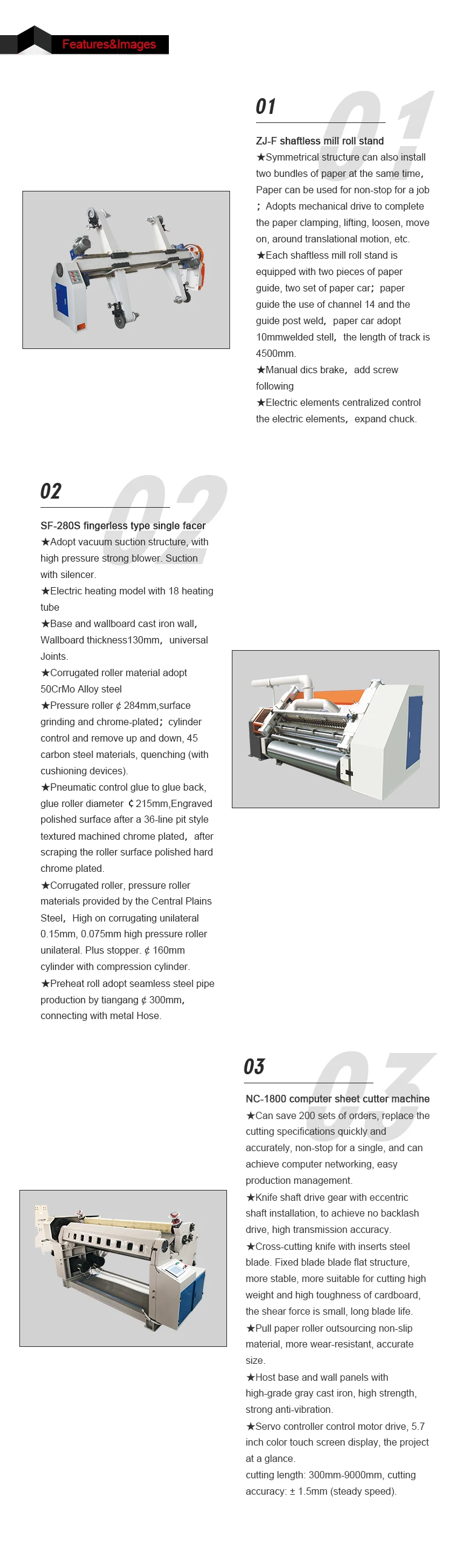

ZJ-F shaftless mill roll stand
1,Backstands action mode:mechanical electric operation
2,The range of paper jams:maximum:1800mm minimum:600mm
3,The diameter of paper jams:maximum:φ1400mm minimum:φ400mm
4,Unilateral maximum load:maximum2000Kg
5,Powered motor parameters:
Paper jams motor 550W×4set 380V 50HZ short(S2)working standard
lift motor 1.5Kw 380V 50HZ short(S2)working standard
SF-280S fingerless type single facer
1,effective width:1800mm
2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min working speed:40m/min
4,temperature range:200—260℃
5,corrugated flute:(UV type or UVV type)
6,diameter of corrugated roller: φ280mm
7,diameter of pressure roller:φ284mm
8,diameter of glue roller: φ216mm
9,diameter of preheat roller: φ320mm
10,main drive motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard
11,suction motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard
FAQ
Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company , so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
