Flour Mill Impact Detacher, Impact Detacher, Flake Disrupter
- QINGDAO TIANJIN SHANGHAI
- T/T Credit Card
You May Like
-
Continuous Vibration Flour Vibrating Discharge Closed
-
China Discharge Vertical Rotary Vibrating Sifter Screen
-
High Efficiency Vibro Bin Discharger, Discharge Machine
-
Reasonable Price 1000tons Capacity Steel Silo for Grain Storage
-
Customized Grain Storage Steel Silo Used for Farm
-
ISO CE Certified Grain Storage Silos for Sale, Hopper Bottom Grain Bin Prices
Product Details
| Brand Name | HNLY | Place of Origin | Henan, China | |
| Model Number | Impact Detacher | Certification | ISO, CCC, BV, SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Weight | 220-640Kg | Dimension(L*W*H) | according to the modle | |
| Production Capacity | 0.9-3T per hour | Condition | New | |
| Voltage | 380V | Power(W) | 4.5kw |
Product Description
flour mill impact detacher, Impact Detacher, flake disrupter
Principle:
- This machine is designed for detaching endosperm particles after reduce milling by smooth rollers to increase the extraction of flour in flour mills.

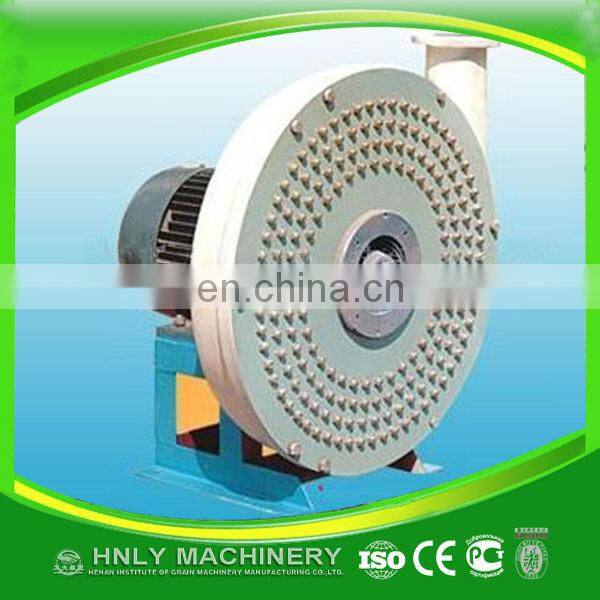

- The circular machine comprises casting iron housing and the motor is flanged installed on the housing. A rotary pins plate is fixed on the motor axis directly. A fixed is pin plate combined with the housing. The materials are fed into the machine from the center and discharged from its outlet which is on the tangential direction. Meanwhile, intensive impact occurs between:
a, the pins fixed on the motor and the pins on the housing.
b, the rotoring plate and the pins on the housing.
c, the pins fixed on the motor and the housing.
Thus some endosperm sheets caused by smooth roller are released and become flour; some granular semolina is crashed to flour or falls off from bran.
- The rotor is dynamically balanced, and painted with a transparent food lacquer to prevent rusting. The impacting pins surfaces are heat treated to ensure wear resistant.
Features:
- Advanced design and excellent fabricating.
- Newly type machine adopts welded housing.
- Dynamically balanced rotor ensures smooth running.
- The impacting pins surfaces are heat treated to ensure wear resistant. The surfaces of the impacting pins are special heat treated to ensure wear resistant.
- Round pins and square pins for different passages and impact intensities.
- High quality motor ensures the machine running normally.
Technical Datas:
Application
- Please feel free to contact us if more information is needed.
Main parameter:
| Type | Sieve tube diameter | Sieve tube length | Axis speed | Capacity | Power | Weight | Dimension(L×W×H) |
| mm | mm | r/min | t/h | kw | kg | mm | |
| FPDW-30 ×1 | 300 | 800 | 1300-1600 | 0.9 | 2.2 | 220 | 1319×520×1350 |
| FPDW-30×2 | 300 | 800 | 1300-1600 | 1.8 | 2×2.2 | 440 | 1319×1016×1350 |
| FPDW-45 ×1 | 450 | 1100 | 1000-1100 | 1.5 | 5.5 | 320 | 1700×650×1620 |
| FPDW-45×2 | 450 | 1100 | 1000-1100 | 3 | 2×5.5 | 640 | 1700×1300×1620 |

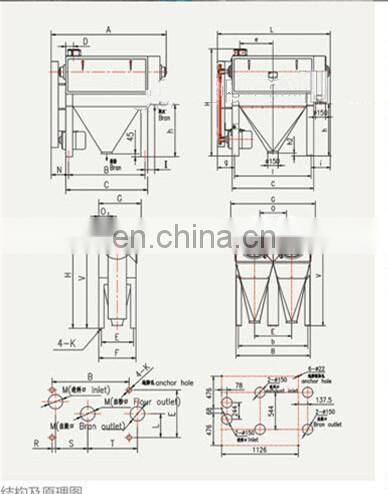

Drawing:
Service
- One year guarantee for whole machine and the whole flour milling line.
- 24 hours technical support by e-mail or other methods by internet.
- Calling or door-to-door service.
- If need our service on the spot, we will arrange our technicians
Q: Electricity Voltage, frequency only can be 380V, 50Hz or others all avaible?
A :Yes, we can customized as your requirement.
Q: Sieve hole size can be customized or not?
A: Yes!
Q: LCL or FCL which you prefer?
A: We can provide LCL and FCL shipping service, but LCL cost is really lower for you and us!
