Color Sorter Used for Corn, Beans, Wheat for Sale

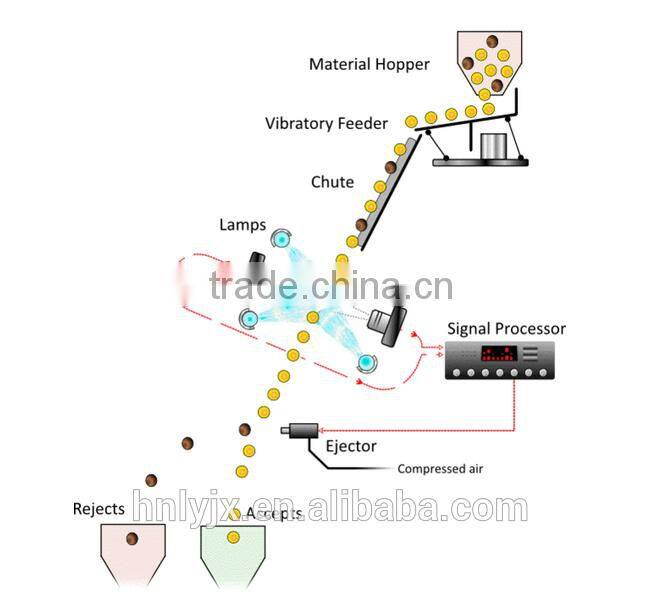

Flow chart

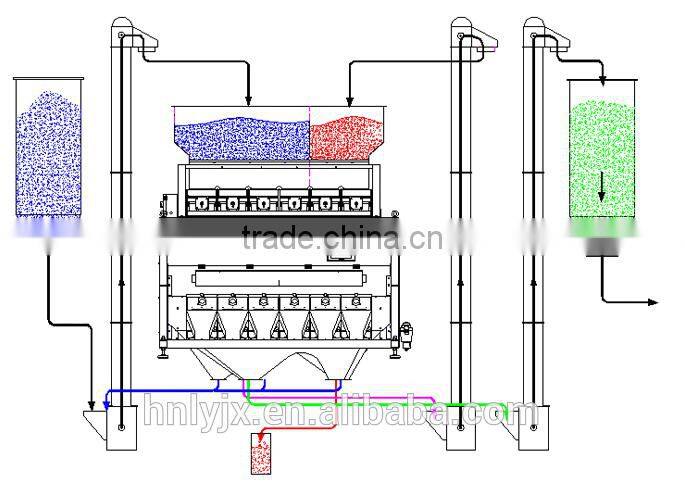

After moved by a lifter into color sorters from the top, grains will go through a two-stage sorting process. At the first stage, good-quality grains will be sorted out from inferior grains; then at the second stage, the inferior grains will be subject to a secondary sorting action after being moved into a secondary-sorting channel, whereby good-quality grains will be further sorted out and moved by a lifter back to the inlet of color sorters for re-sorting, and inferior grains will be taken as waste and discarded.
(First-stage Sorted Grain Barn, Second-stage Sorted Grain Barn, Unsorted Grain Barn, Inlet of Unsorted Grain, Secondary-stage Sorted Good Quality Grain (Front Port), Final Inferior Grains (Rear Port), First-stage Sorted Inferior Grain (Rear Port), First-stage Sorted Inferior Grains (Front Port), Final High-quality Grain Barn Marked with Green Lines; First-stage Sorted Inferior Grains (Front Port) Marked with Red Line; First-stage Sorted Inferior Grains (Rear Port) Marked with Purple Lines; Second-stage Sorted High-quality Grains (Front Port) Marked with Black Lines; Final Inferior Grains (Rear Port); Flow Chart for Z Series of Color Sorters )

specification:

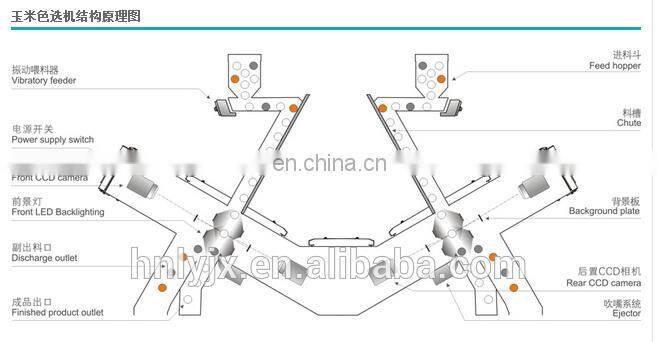

core technology

1.Global initiative hawkeye technology is adopted.

2.Global initiative cloud technology camera can deeply recognize tiny spot,light yellow and some other impurities that normal color sorter can not   recognize. It shows perfect HD scanning, accurate identification and high computing.

3.Global initiative operation by clicking one button realizes fully automatic   sorting without need of professional.

4.The internet of things technology adopted initiatively all over the world   enable to operate and monitor machine on line as well as service machine on   line by manufacturer.

5.Global initiative cloud image capture and processing and spectrum analysis   technologies are adopted

6.The international top-level cloud processing system with incomparable   arithmetic capability and perfect program design create a new era of large   data.

7.The material sorting can be captured dynamically at very high speed as well as analyzed and showed. It realizes truly visualization.

8.The new high-frequency solenoid valve exclusive to color sorter with ultra-  low air consumption ensures optimized carryover ratio and high sorting   accuracy. It features perfect self-recovery system, low maintenance cost and   long lifetime above 10 billion times.

9.The high performance LED optical system design and light control technology   ensure maintenance free and reduce 35% of energy consumption.

10.The global leading infrared technology can easily recognize impurities like   glass, stones, etc. (optional)

application:

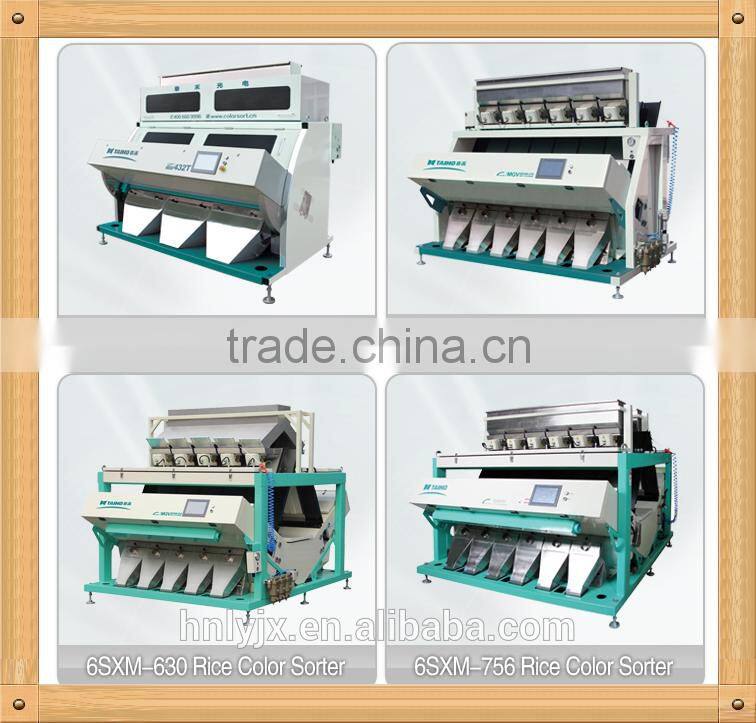

some of our other types:

a. rice color sorter

b. grain color sorter

c. wheat color sorter

d. tea color sorter

e. corn color sorter

f. beans color sorter

g. customerize color serter
