1. Fermentation system is usually composed of 6/12 fermenter tank, specifications is from 100L to 2000L and all species diversity, can also be customized according to your need;the equipment bladder using international standards of high quality stainless steel material welded together, PU high pressure foaming insulation cone bottom structure;outsourcing can use stainless steel mirror, dumb light ,carbon steel ,spray and other forms according to customer demand .
2 .Adopts international standardization beer fermentation production technology, the internal mirror polishing which can achieve ≤0.8um≤0.6um≤0.2um polishing quality standard and fully meet the beer fermentation, PLC automatic cleaning ,disinfection system requirements.
3 .Fermenter cooling jacket, can meet the technical standard of countries all over the world, adopts the Maitreya edition ,arch channel ,corrugated channel ,screw and clip swap hot way to meet different cooling medium and the pressure of the heat exchange technology needs.
4.Connection with washing sterilization pipeline is between the fermenter material pipelines, cooling return pipe and Co2 pipeline. All stainless steel pipeline contact with material adopts health level ISO or PIN standard pipe, both inside and outside wall polishing to meet the food hygiene standards.

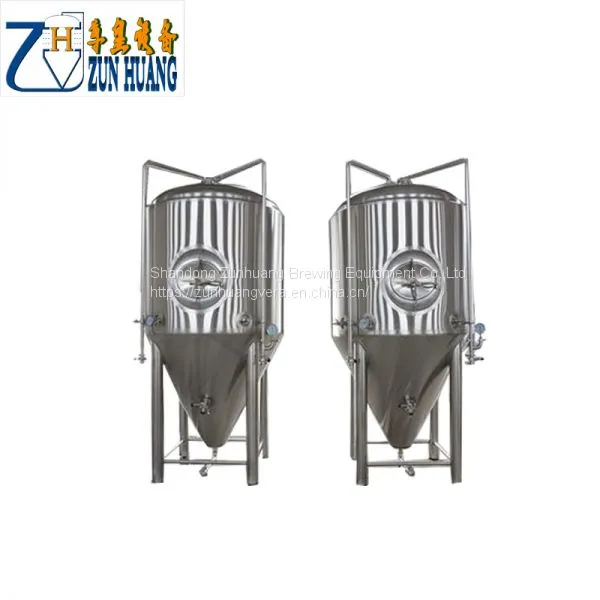

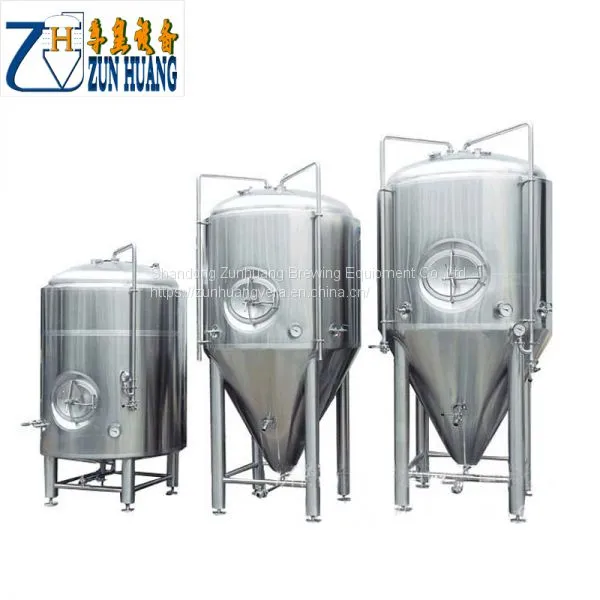

Fermentation tank
1.Dish head and cylinder tank;
2.Inside surface: SUS304, TH:3mm,
Outside surface: SUS304, TH:2mm,
Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 75MM.
3.Manhole: side manhole.
4.Design pressure 3bar, Working pressure: 1.5-2.0bar;
5.Bottom design: 60 degree cone for easy to exist yeast.
6.Cooling method: Dimple cooling jacket.
7.Cleaning system: Fixed-round rotary cleaning ball.
8.Control system: PT100, temperature control;
9.Dry hops adding device on the top.
With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, thermometer etc.
10.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;
11.Complete with associated valves and fittings.
Details
Dimple cooling jacket is cooling uniformity.
Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and tradecomprehensiveenterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, corollary equipment, our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.
Ten provide to service you
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.
Internationally recognized: Zunhuang technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.
1. Ocean shipment,railway shipment,express delivery.
2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.
3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.
4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
