Home > Tools & Hardware > Hardware Accessories > Clamps > Stainless Steel W2 Germany Type Hose Clamp

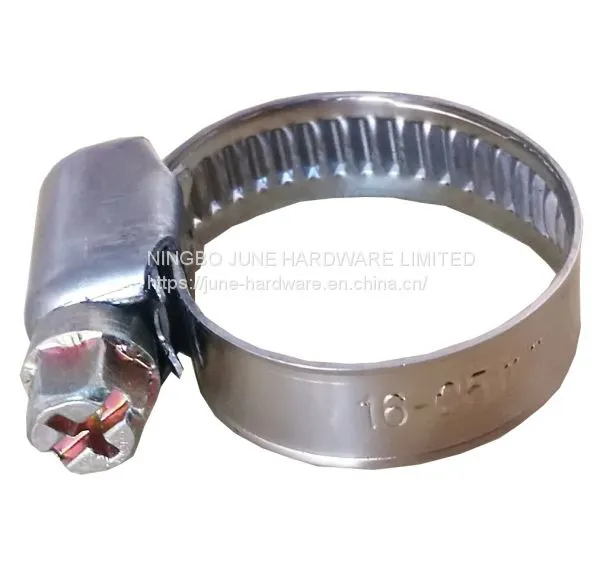

Stainless Steel W2 Germany Type Hose Clamp
US$ 0.01 - 0.1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
BEFIX
Place of Origin:
China
Model Number:
104
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
25 days
Related Products
-
Stainless Steel W4 Germany Type Hose ClampUS$ 0.01 - 0.1MOQ: 500 Pieces -
Stainless Steel W2 Germany Type Eccentric Hose ClampUS$ 0.01 - 0.1MOQ: 500 Pieces
-
Galvanized Steel W1 British Type Blue Housing Hose ClampUS$ 0.01 - 0.1MOQ: 500 Pieces
-
Stainless Steel W4 Quick Release Hose ClampUS$ 0.01 - 0.1MOQ: 500 Pieces
-
Galvanized Steel W1 Mini Hose ClampUS$ 0.01 - 0.1MOQ: 500 Pieces
Brand Name
BEFIX
Place of Origin
China
Model Number
104
Material
Metal
Usage
Pipe Clamp
Standard or Nonstandard
Standard
Structure
Saddle Clamp
| Material: |
| W1:All parts steel zinc plated. |
| W2:Band & hosing stainless steel, |
| screw zinc plated. |
| W4: All parts stainless steel |
| Code | Width(mm) | Dia(mm) | a(mm) | b(mm) | c(mm) | d(mm) | e(mm) |
| 104012 | 9/12 | 8-12 | 0.7 | 7 | 5 | 21 | 19 |
| 104016 | 9/12 | 10-16 | 0.7 | 7 | 5 | 21 | 19 |
| 104022 | 9/12 | 12-22 | 0.7 | 7 | 5 | 21 | 19 |
| 104027 | 9/12 | 16-27 | 0.7 | 7 | 5 | 21 | 19 |
| 104032 | 9/12 | 20-32 | 0.7 | 7 | 5 | 21 | 19 |
| 104040 | 9/12 | 25-40 | 0.7 | 7 | 5 | 21 | 19 |
| 104045 | 9/12 | 30-45 | 0.7 | 7 | 5 | 21 | 19 |
| 104050 | 9/12 | 35-50 | 0.7 | 7 | 5 | 21 | 19 |
| 104060 | 9/12 | 40-60 | 0.7 | 7 | 5 | 21 | 19 |
| 104070 | 9/12 | 50-70 | 0.7 | 7 | 5 | 21 | 19 |
| 104080 | 9/12 | 60-80 | 0.7 | 7 | 5 | 21 | 19 |
| 104090 | 9/12 | 70-90 | 0.7 | 7 | 5 | 21 | 19 |
| 104100 | 9/12 | 80-100 | 0.7 | 7 | 5 | 21 | 19 |
| 104110 | 9/12 | 90-110 | 0.7 | 7 | 5 | 21 | 19 |
| 104120 | 9/12 | 100-120 | 0.7 | 7 | 5 | 21 | 19 |
| 104130 | 9/12 | 110-130 | 0.7 | 7 | 5 | 21 | 19 |
| 104140 | 9/12 | 120-140 | 0.7 | 7 | 5 | 21 | 19 |
| 104150 | 9/12 | 130-150 | 0.7 | 7 | 5 | 21 | 19 |
| 104160 | 9/12 | 140-160 | 0.7 | 7 | 5 | 21 | 19 |
| Band not perforated. | |||||||
| Dentiform structure of the clamp recommand heavy torque to large diameter hose, and reiterative use is possible. | |||||||
| Inside of the band is completely smooth to protect the hose from any damages. | |||||||
| It has heavy torque and various material could be selected. | |||||||
| There are 9mm and 12mm band width available. | |||||||
