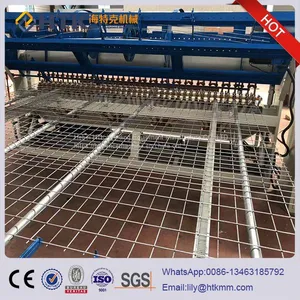

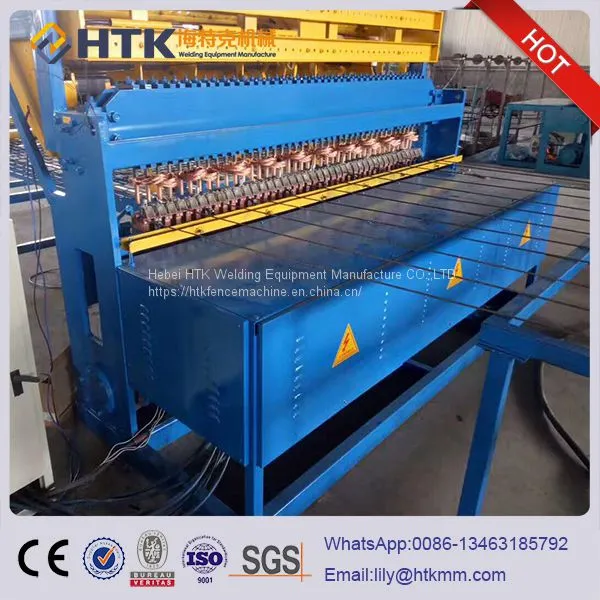

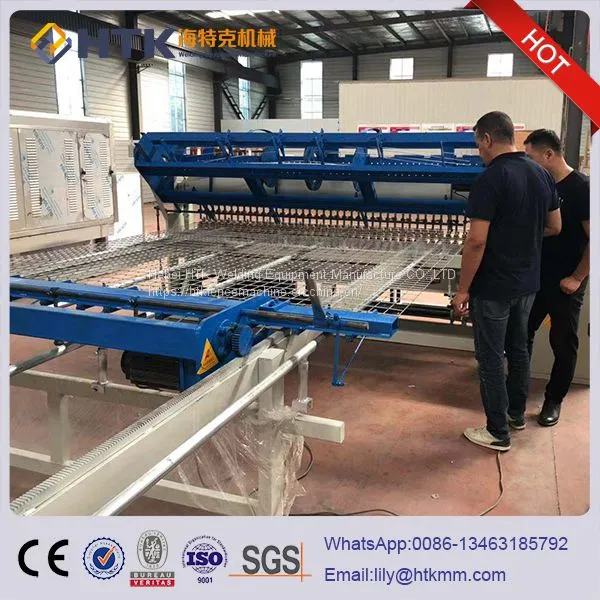

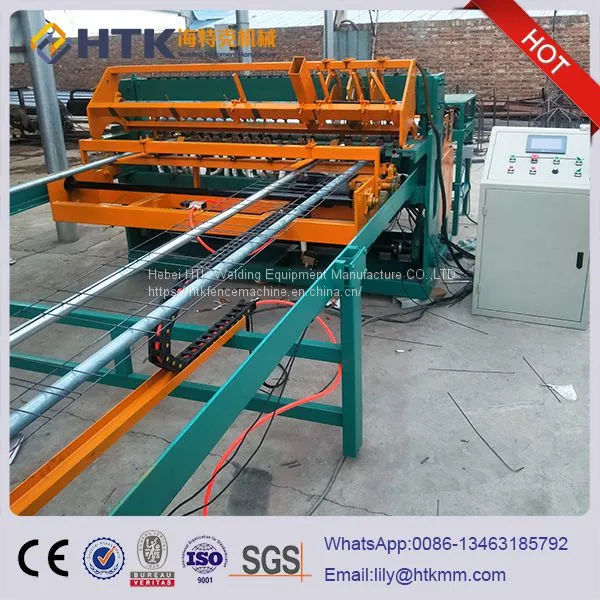

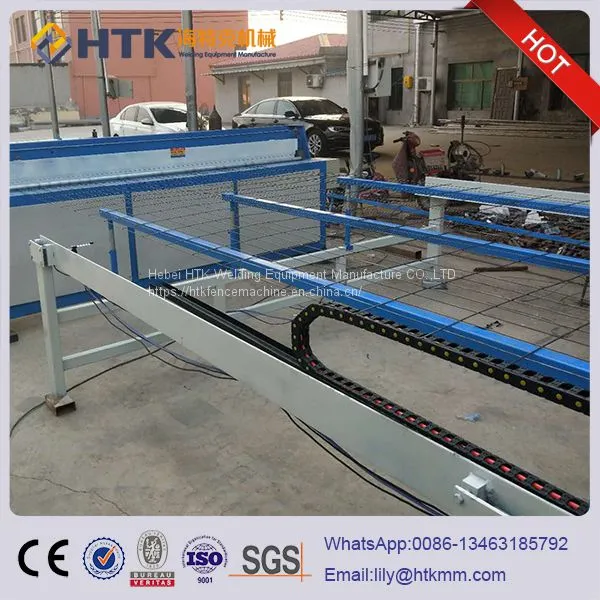

automatic 3-6mm welding wire mesh in roll or panel machine
- 10 Set / Sets per Month
- TIANJIN
- T/T L/C Other Cash
- 25 days
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Brand Name: | HTK | Place of Origin: | China | Model Number: | NHW-2000 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
popular automatic 3-6mm welding wire mesh (in roll or panel) machine professional manufacturer:
1.Direct factory
2.Voltage: 380V
3.Certificate: ISO9001 and BV
4.PLC Control System
Ⅰ.The characteristics of popular automatic 3-6mm welding wire mesh (in roll or panel) machine professional manufacturer
This equipment is the mechanical electronic computer integration advanced welds the net equipment , this machine biggest characteristics is the organzine may adjust may appear between the latitude and the latitude on the identical standing net the different size hole, the welding transform voltage uses the new highly effective transform voltage mesh, the wire diameter scope which the expansion may weld. Also this machine welds the net piece smoothly, diagonal line error small, is easy to operate. The flexibility is the ideal equipment which the net fence welds.
Ⅱ.The specification of popular automatic 3-6mm welding wire mesh (in roll or panel) machine professional manufacturer
DNW-1
DNW-1 | |||
Wire diameter | 2.5-6.0mm | Warp form | wire coil |
Weft wire spacing | 50-200mm | Weft form | wire coil |
Warp spacing | 50-200mm | Rated voltage | 380V |
Welding width | 3000mm | Rated power | 50KVA x 2 |
Welding speed | 55times/min | Overall dimension | 2400x2400x1400mm |
Welding point | 25 | Weight | 2.2T |
Note: special type can be made according to client’s requirements.
Ⅲ.The details of factory direct wire mesh fence making machine HOT SALE
1.Install: The machine need not install the anchor bolt, only need to put on the ground of plant.
2.Adjust: The weft wire space and warp space will be adjusted as your requirement.
All of the debugging working will be done in the factory manufacture by our engineers.
We will send the photos and video of the mesh machine to you.
3.Control systerm: PLC Control Systerm
4.Machine transformer: 120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.
5.Machine cooling device: Water colling
6.Machine accessories: Wire straightening and cutting machine
Application
1. mesh fence, casting roof mesh in the building
2. Construction panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh, animal cages
Service:
1. We offer installation service train workers for customer we supply enough spare parts for customers.
2. Guarantee period: one year
3. Special type can be made according to client’s requirements.
