Specifications
welded wire mesh machine1, width:1200mm-3000mm
2,wire diameter; 0.6-2.0mm
3,mesh:1/2''-4''

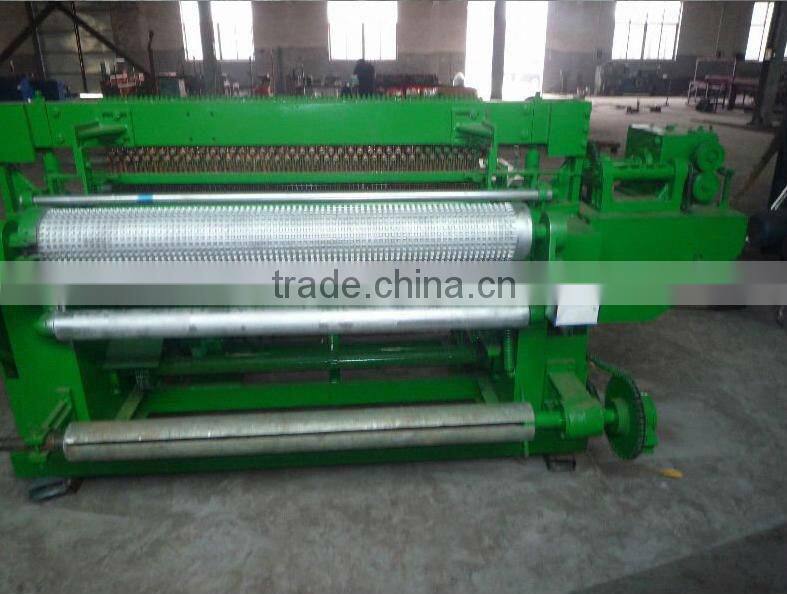

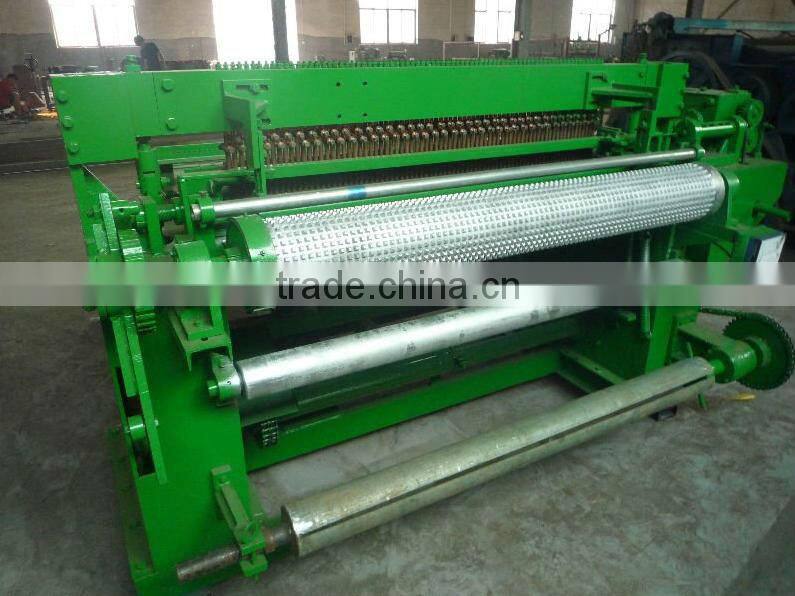

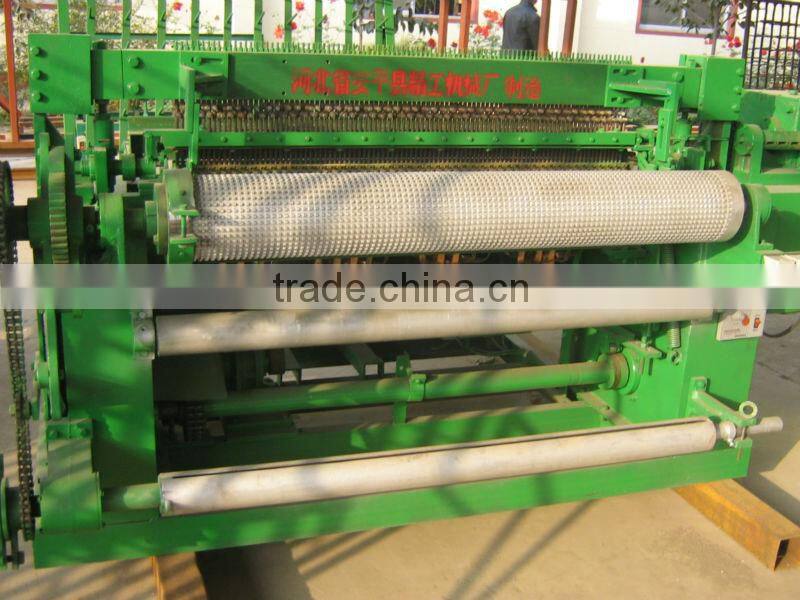

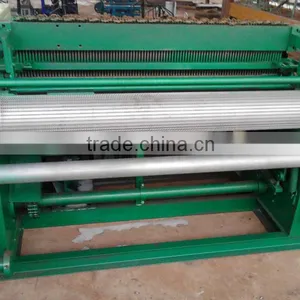

welded wire mesh machine
Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".
Size of mesh (mm) |
12.7-101.6 (1/2"-4") |
Width (mm) |
914.4-1219.2 ( 12"-48") |
Diameter of wire (mm) |
Dia.0.63-Dia.2 ( BWG23-BWG14) |
Max. rolled net size (mm) |
120 (400') |
Welding speed ( mesh/minute) |
65 ( radia) |
Power |
380/220V |
Outside size(mm) |
2600x1700x1350 |
Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.
Size of mesh (mm) |
25.4-152.4 (1"-6") |
Width (mm) |
1219.2,1524,1828.8 (48", 60", 72") |
Diameter of wire (mm) |
Dia.1.07-Dia.2 ( BWG19-BWG14) |
Max. rolled net size (mm) |
91.4m (300') |
Welding speed ( mesh/minute) |
45 ( radia) |
Power |
380/220V;50-60HZ;50KWAx6 |
Outside size(mm) |
3350x1800x1400 |
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of big width diameter 0.7- diameter 1.07; mesh 1/4" - 1/2".
Size of mesh (mm) |
6.35-12.7 (1/4"-1/2") |
Width (mm) |
1219.2-1828.8 (48"-60") |
Diameter of wire (mm) |
Dia.0.74-Dia.1.07 ( BWG22-BWG19) |
Max. rolled net size (mm) |
120m (400') |
Welding speed ( mesh/minute) |
48( radia) |
Power |
380/220V;50-60HZ;50KWAx6 |
Outside size(mm) |
3050x1900x1750 |
