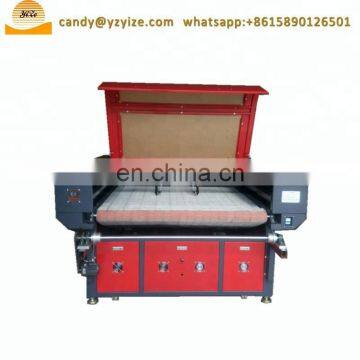

fiber fabric laser cutting machine , laser paper cutting machine
Introduction :
1: Red dot
2: PMI square guide rail from Taiwan; lens form USA; Belt from Germany; locating
percision: 0.03mm
3: Advanced LCD Touch Screen+ USB port+ DSP Offline Control
4: Water Cooling System with Alarm Protection
5: CE; FDA; ISO; SGS; BV certificates
6: 1 year quality warranty (some parts such as laser tube, focus lens & reflective mirrors is 3-8 months)
7: Big factory, short delivery time
Technical parameters :
MODEL |
YZJG1610 |
Working Area |
1600mmx1000mm |
Laser Power |
80W-150W(optional) |
Laser Type |
Hermetic CO2 glass tube |
Working Speed |
0-40000mm/min |
Laser Output |
1-100% software setting |
Power Supply |
AC220±10% 50HZ / AC110±10% 60HZ |
Locating Precision |
<0.03mm |
Operating Temperature |
0℃-45℃ |
Control Configuration |
DSP |
System Environment |
WINDOWS 2000/ WINDOWS XP/Vista/WINDOWS7/WINDOWS8 |
Cooling Way |
Water Cooling and Protection System |
Graphic Format Supported |
All formats which CorelDraw, Photoshop, AutoCAD can identify |
Cutting Thickness |
0-30mm (eg: if acrylic/wood board is30mm) |
Sloping Engraving |
Yes,slope can be designed discretionarily |
Guarantee |
1 year ,damageable spare parts(like laser tube,mirrors) 3 months |
Net Weight / Gross Weight |
310kg / 360kg |
Machine Dimension |
2180*1580*1120 (mm) |
Package Dimension |
2300*1700*1300 (mm) |
Packing :
We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly .
Delivery :
1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number
Service before sale
Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service on sale
We are confident that we sell our machines to customers at low prices and activated. Professionally
and patiently introduction
pictures and video to show machine
1, Free insurance for goods
2, 24 hours online to solve any
questions.Supply manual book
and technical support,maintain
video to help you.
Questions/Answer |
1,What is the voltage/phase for this machine ? |
|
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need |
2,What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
3,How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
4,How long is the guarantee? |
we promise guarantee as one year for non-human damage factor. |
5,How should I do if meet some trouble while using? |
|
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. |
6,What about Payment term? |
|
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
7,What’s your MOQ |
1 set |
8, How can i contact with you ? |
|
You can send inquiry to me . Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 15890126501 Skype: candy-yize,QQ: 2033530360 |
Zhengzhou Yize Machinery CO.,Ltd’s factory was built in 2008, its exporting company was
assessed gold supplier in 2015 by alibaba. It is specialized in the production of textile machinery,
We will supply 100% QC inspection before shipment and 100% guaranteed after sales service.
Top quality machinery is waiting for your choose.
We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:
