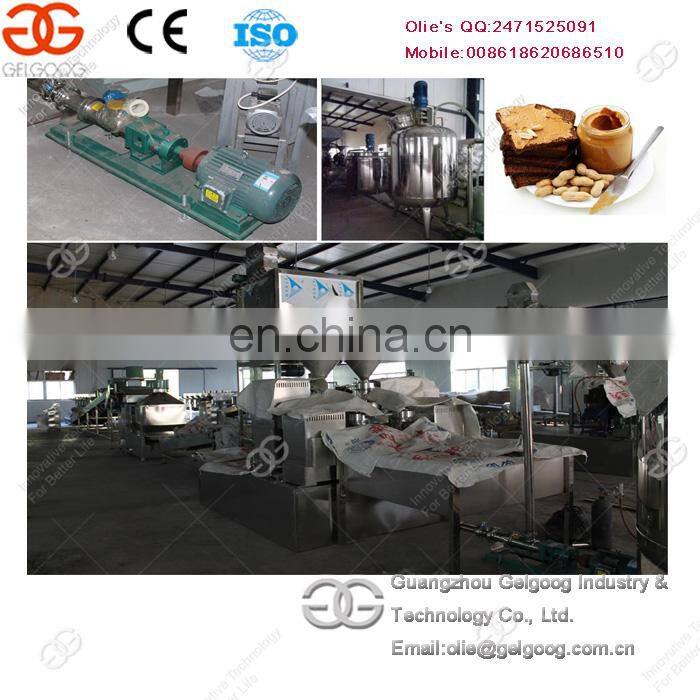

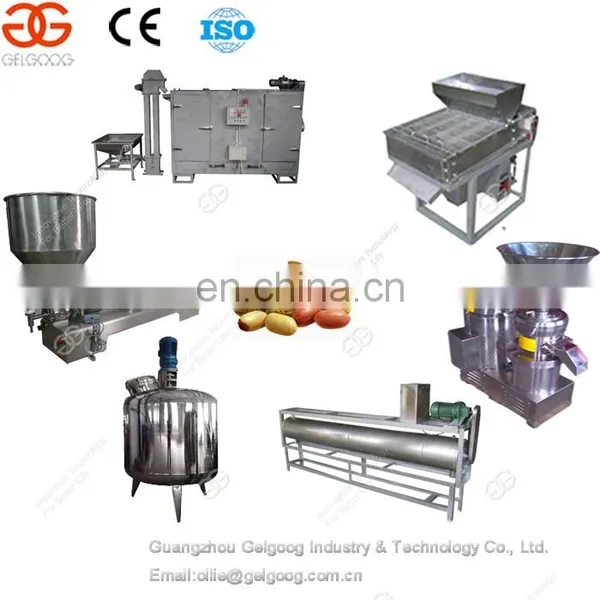

Introduction of Peanut Butter Production Line:

This peanut butter production processing line was designed by reference of the foreign tech. It is consisted of feed elevator, continuous roaster, conveyor, cooling machine, decorticating machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc. It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.

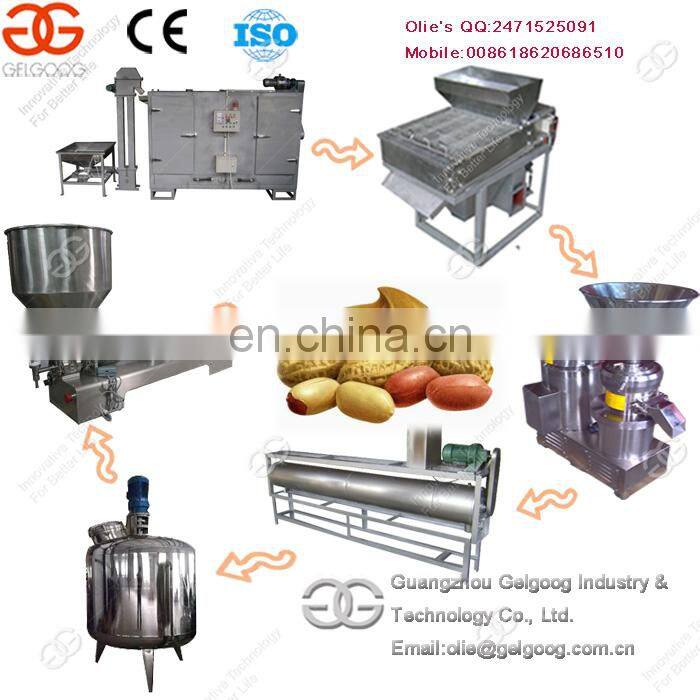

Instruction of peanut butter production line:

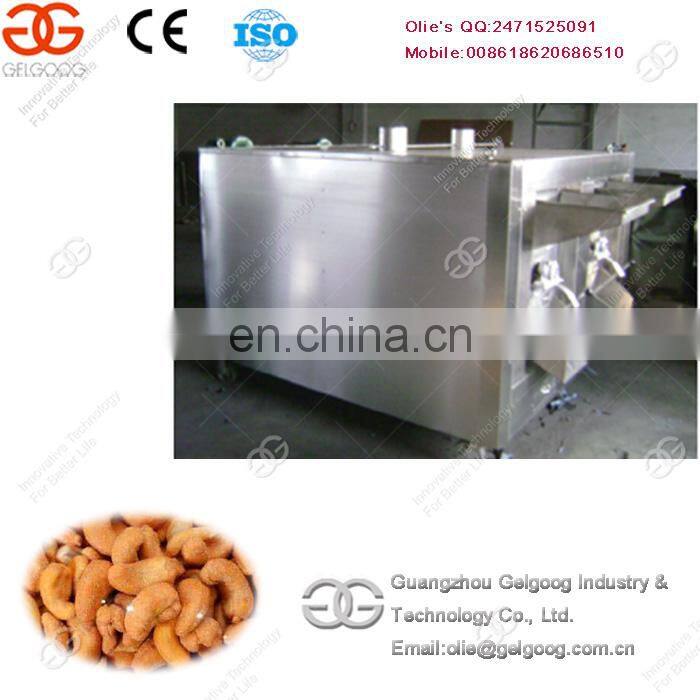

1.peanut butter production line-----Roasting:

Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.

2.peanut butter production line-----Cooling:

Peanut will be send cooling belt to cool.

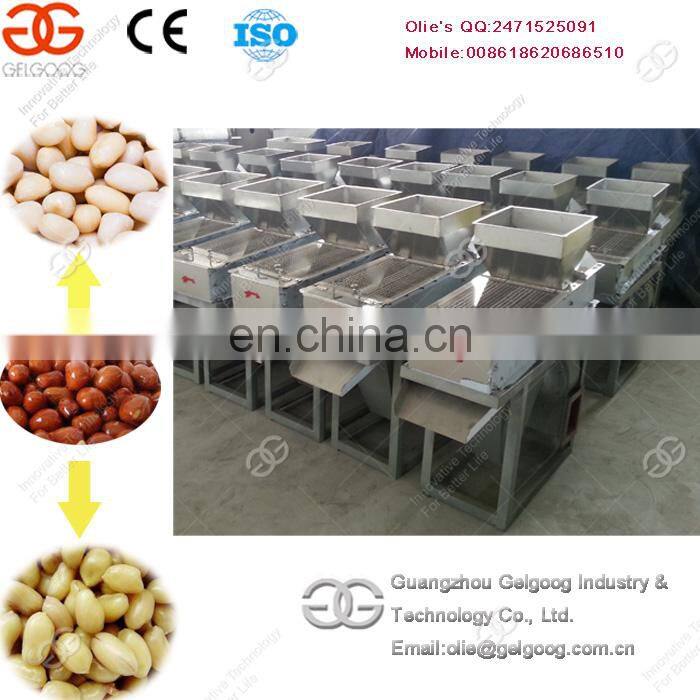

3.peanut butter production line-----Peeling:

Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.

4.peanut butter production line-----Primary grinding:

Using steel grinder to make the first grinding.

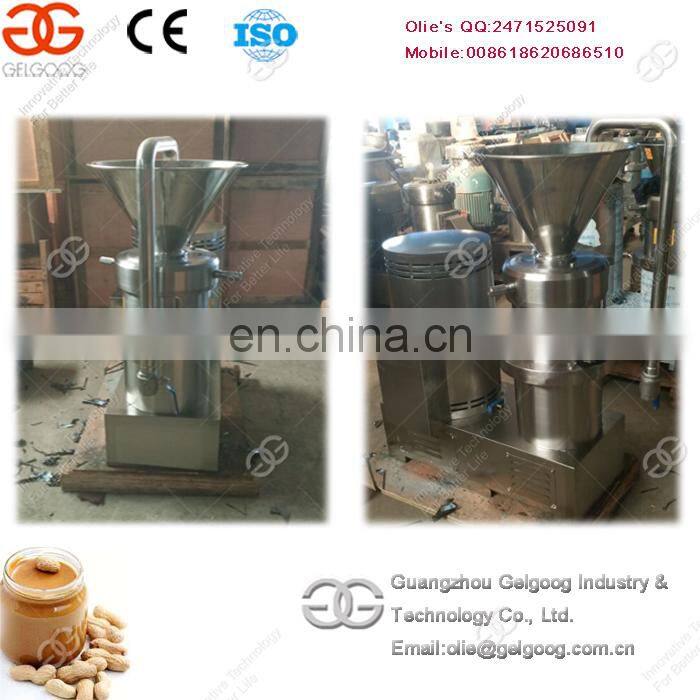

5.peanut butter production line-----Second grinding:

Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.

6.peanut butter production line-----Mixing:

Make the butter more homogeneous.

7.peanut butter production line-----Cooling:

The butter through second grinding should be cooled immediately. The temperature should go down 45C.

8.peanut butter production line-----Degasser:

Take out the air from peanut butter.

9.peanut butter production line-----Storage tank:

Settling down in the storage tank till the temperature drop to air temperature.

Main Parameter of peanut butter production line(200kg/h):

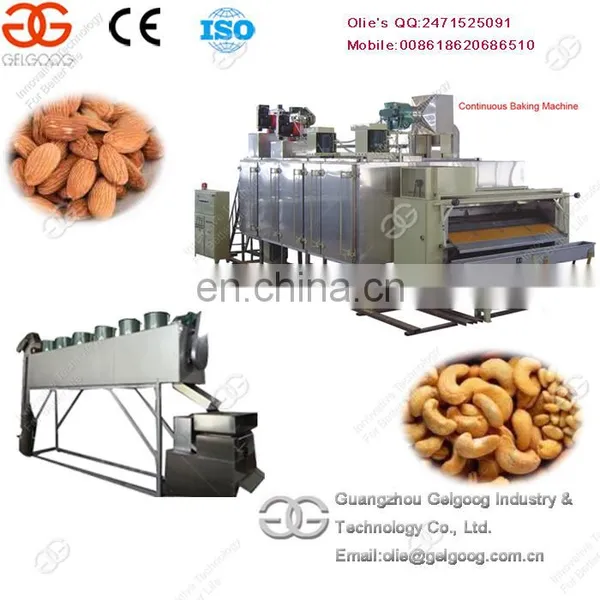

Baking Machine

Specification:GG-2

Size:2900*2100*1650mm

Weight:1000KG

Voltage and power:3phase 380V50HZ;47.2KW

Application:Baking the peanut

Specification:GG-12

Size:3500*700*1200mm

Weight:1000KG

Voltage and power:3phase 380V50HZ;0.75KW

Application:Conveying the peanut into the cooling machine

Cooling Machine

Specification:GG-8

Size:8000*1000*1600mm

Weight :1000KG

Voltage and power:3phase 380V50HZ;3KW

Application:Cooling the peanut which baked

Model:GGT-4

Size:1100X400X1100mm

Weight:200KG

Voltage and power:3phase 380V50HZ;0.37KW

Application:Peanut Peeling

 Model:GG-5000

Size:5000*800*1000mm

Weight:300KGGGJM-85

Voltage:3phase 380V50HZ;0.75KW

Application:In the process of conveying material artificial selection in addition to the mildew of peanuts

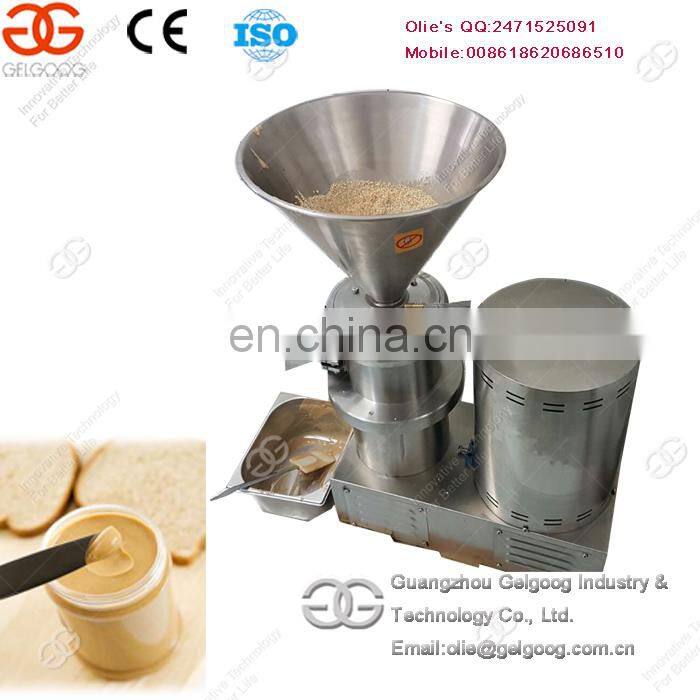

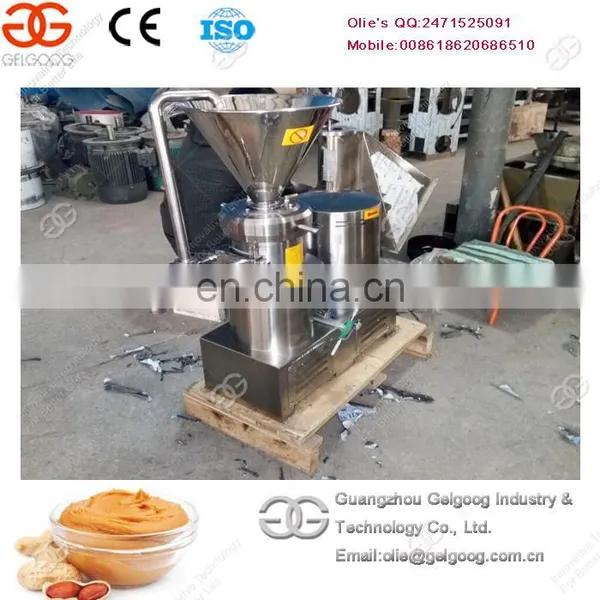

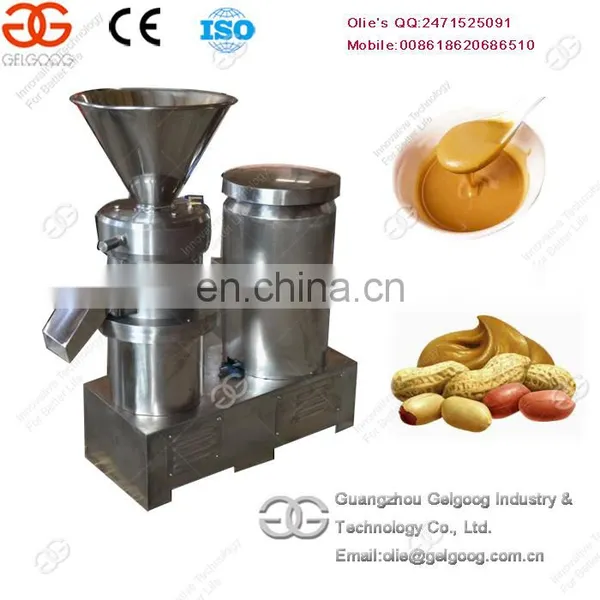

Model:GGJM-85

Name:Peanut Butter machine

Size:900*350*900m

Weight:170KG

Voltage:3Phase 380V50HZ;5.5KWx2stes

Application:Coarse fine combination grinding peanut butter

Model:GG-1.5

Size;1200*300*350mm

Weight:80KG

Voltage and power:3Phase 380V50HZ;1.5KW

Application:Conveying the peanut butter

Model:GG-250

Size:250L

Weight:200KG

Voltage:3Phase 380V50HZ;2.2KW

Application:Peanut butter flavor or additives

Model:GG-250

Volume:250L

Weight:300KG

Voltage:3Phase 380V50HZ;2.2KW

Application:Use vacuum to peanut butter in the air discharge, increase the shelf life
