Introduction of Peanut Butter Production Line:

This peanut butter production processing line was designed by reference of the foreign tech. It is consisted of feed elevator, continuous roaster, conveyor, cooling machine, decorticating machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc. It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.

Instruction of peanut butter production line:

1.peanut butter production line-----Roasting:

Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.

2.peanut butter production line-----Cooling:

Peanut will be send cooling belt to cool.

3.peanut butter production line-----Peeling:

Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.

4.peanut butter production line-----Primary grinding:

Using steel grinder to make the first grinding.

5.peanut butter production line-----Second grinding:

Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.

6.peanut butter production line-----Mixing:

Make the butter more homogeneous.

7.peanut butter production line-----Cooling:

The butter through second grinding should be cooled immediately. The temperature should go down 45C.

8.peanut butter production line-----Degasser:

Take out the air from peanut butter.

9.peanut butter production line-----Storage tank:

Settling down in the storage tank till the temperature drop to air temperature.

Some Advantages of peanut butter production line:

1.This production line include the peanut roaster,peanut dry peeling machine,automatic feeding machine,grinding machine,vacuum degassing machine,cooling machine and so on.

2.The character is high automation,good reliability,full enclosed production,No pollution,the finished peanut butter has the export standard.

3.The detailed technology and capacity can be customize according to the customer requirements.

4.This peanut butter production line can produce natural peanut butter,stable peanut butter,smooth type peanut butter,salty peanut butter,sweet peanut butter,particle type peanut butter and so on,it also can produce the tahini and walnut butter,can be equipped with variety of configuration and capacity according to the different customer requirements.

5.In a word,this production line has the advanced technology,stable quality of products.It a best choice for food processing plant.

Main Parameter of peanut butter production line(200kg/h):



Baking Machine

Specification:GG-2

Size:2900*2100*1650mm

Weight:1000KG

Voltage and power:3phase 380V50HZ;47.2KW

Application:Baking the peanut

Specification:GG-12

Size:3500*700*1200mm

Weight:1000KG

Voltage and power:3phase 380V50HZ;0.75KW

Application:Conveying the peanut into the cooling machine

Cooling Machine

Specification:GG-8

Size:8000*1000*1600mm

Weight :1000KG

Voltage and power:3phase 380V50HZ;3KW

Application:Cooling the peanut which baked

Model:GGT-4

Size:1100X400X1100mm

Weight:200KG

Voltage and power:3phase 380V50HZ;0.37KW

Application:Peanut Peeling

 Model:GG-5000

Size:5000*800*1000mm

Weight:300KGGGJM-85

Voltage:3phase 380V50HZ;0.75KW

Application:In the process of conveying material artificial selection in addition to the mildew of peanuts

Model:GGJM-85

Name:Peanut Butter machine

Size:900*350*900m

Weight:170KG

Voltage:3Phase 380V50HZ;5.5KWx2stes

Application:Coarse fine combination grinding peanut butter

Model:GG-1.5

Size;1200*300*350mm

Weight:80KG

Voltage and power:3Phase 380V50HZ;1.5KW

Application:Conveying the peanut butter

Model:GG-250

Size:250L

Weight:200KG

Voltage:3Phase 380V50HZ;2.2KW

Application:Peanut butter flavor or additives

Model:GG-250

Volume:250L

Weight:300KG

Voltage:3Phase 380V50HZ;2.2KW

Application:Use vacuum to peanut butter in the air discharge, increase the shelf life

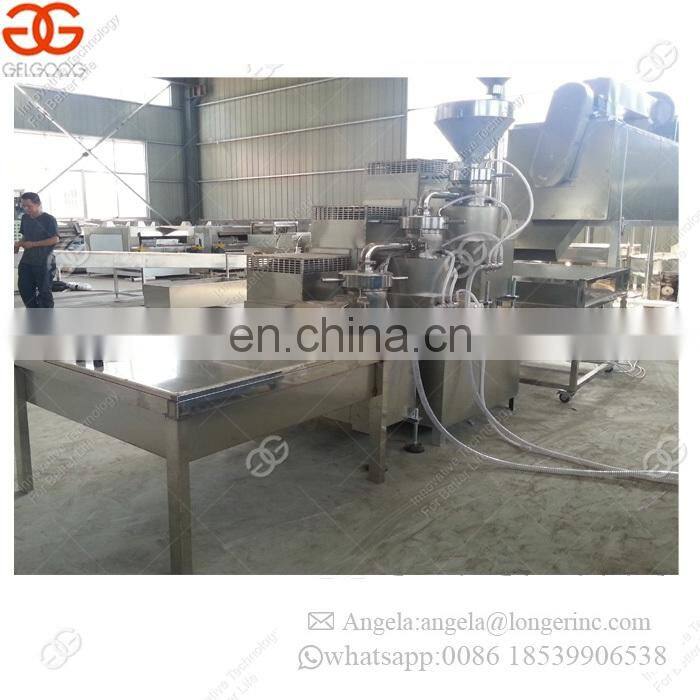

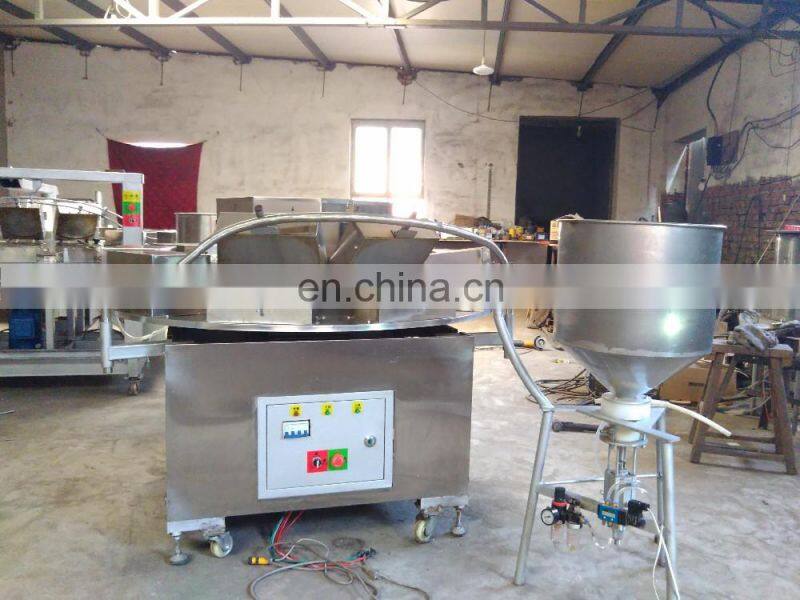

 More Pictures for you:

FAQ (Frequently Asked Questions)

Q1: What is your machine guarantee?
A1: Usually the guarantee period is for 1 year, and we will keep contact with our
customers for after-sales service. We're aim to produce better machines and let our customers be satisfied.

Q2:What's the machine voltage or power of your machine?
A2:Usually the voltage in our country is 220V,50HZ, single phase, or 380V, 50HZ, 3 phase. If you have special requirement, pls tell us, we will vetify the voltage according to your requirement.

Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you quotation soon.

Q4:Do you have automatic nuts butter production line?

Yes,we have several models can be choose.

Q7: What about the shipping methods?
A5: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost.
Q8: How much does it cost to ship to my country?
A7: It depends on seasons. Shipping cost is different in different seasons. You can consult us all the time.

Q9: What’s your delivery time?
A8: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machine itself, if you place order with us, and need to customize the  machine as your requirement, the producing time is longer.

Q10:Which kind of payment method you can accept?

T/T.Western Union,L/C.

1.Packaging Specification:

Wooden Packing as Exportand Standard.

2.Delivery time:

10 days after full payment.

3.About Shipping:

We can be responsible for the shipping,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.

1. Free consultation service before, during, and after sales.

2. Free project planning and design services upon clients' special demands.

3. Debugging and inspecting of equipment until everything is functional before leaving the         factory.

4. Overseas installation and training of equipment maintenance and operating personally.

5. Provide basic production techniques and formulas.

6. 1 year complete warranty for sesame tahini production line.

After Sale Service

1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.

Our machines' quality are very good, we have a good reputation among customers, they like our machines very much, here it is their feedback as following:
