PTFE SEALING TAPE – HELPING TO SEAL THE JOINT WITHOUT HARDENING
PTFE Sealing Tape is a Teflon film tape commonly used in plumbing for sealing pipe threads. The tape is sold cut to specific widths and wound on a spool, making it easy to wind around pipe threads.
It has an expanded network composed of superfine fibers and joints. The combination of flexibility, high longitudinal strength, and easy deforming ability in the transverse direction makes expanded PTFE unsintered tape very suitable for packing and thread sealing applications.
It is widely used by plumbers for General Water Plumbing applications.
TYPES
White PTFE sealing tape. (Suitable for low pressure, air, water and hydraulic applications. Particularly suited for plastic fittings.)
Yellow PTFE sealing tape. (It is designed and manufactured for natural gas, propane, butane, water, oil and chemical lines.)
Pink PTFE sealing tape. (Suitable for water lines, sewage lines and sprinkler systems.)
Green PTFE sealing tape. (Extra processing makes this degreased tape suitable for Oxygen use.)
Gold PTFE sealing tape. (Thickest and densest PTFE tape for chemical applications where high quality sealing is imperative.)
PTFE tape for stainless & aluminum. (An added feature of our stainless steel thread sealing PFTE tape is the well above average thickness and density ensuring effective seals.)

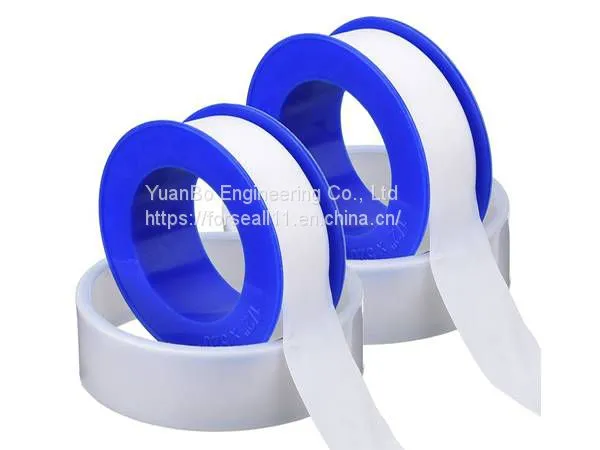

The white PTFE sealing tape straps around the blue shaft on the white base on a white background.
White PTFE sealing tape
The yellow PTFE sealing tape straps around the yellow shaft on a white background.
Yellow PTFE sealing tape
The pink PTFE sealing tape straps around the white shaft on a white background.
Pink PTFE sealing tape
The green PTFE sealing tape straps around the white shaft on a green base on a white background.
Green PTFE sealing tape
The gold PTFE sealing tape straps around the white shaft on a white background.
Gold PTFE sealing tape
The stainless and aluminum PTFE tape with gray color on a white background.
PTFE tape for stainless & aluminum
COMMON SPECIFICATIONS
Thickness: 0.0025" to 0.0035".
Elongation: > 100%.
Tensile strength: 15 N/mm2.
Temperature range: -450 °F to +500 °F (-268 °C to +260 °C) PTFE is completely stable up to +500 °F or +260 °C. Decomposition is slow up to 750 °F or 400 °C.
Pressure rating: 10,000 psi or 69,000 kPa.
Density: 0.4 g/cm3.
Color: white, yellow, pink, green, gold, gray.
Item Width Length
PST-01 1/4" 520"
PST-02 1/2" 100"
PST-03 1/2" 260"
PST-04 1/2" 520"
PST-05 1/2" 610"
PST-06 1/2" 1296"
PST-07 1/2" 1429"
PST-08 3/4" 260"
PST-09 3/4" 310"
PST-10 3/4" 520"
PST-11 3/4" 610"
PST-12 3/4" 1296"
PST-13 3/4" 1429"
PST-14 1" 260"
PST-15 1" 310"
PST-16 1" 520"
PST-17 1" 610"
PST-18 1" 1296"
PST-19 1" 1429"
PST-20 2" 1429"
FEATURES
Prevent leaks.
Compatible with a broad range of gases and liquids.
Compatible with a broad range of piping materials.
Will not harden or crack on the joints.
Effective across a broad range of pressures.
Acts as a thread lubricant and anti-seize.
Prevents electrolytic corrosion of threads.
Withstands harsh temperatures (from -450 °F to +550 °F).
No curing time.
Unlimited shelf life.
Flame resistant.
Non-toxic.
Clean.
CLASSICAL APPLICATIONS
Hydraulic and high-pressure lines
Shower Heads
Sprinklers
Pipe fittings
Gas heaters
Filters
A roll of evolving white PTFE tape wrapped around the hydraulic fittings on a green background.
In hydraulic line
A roll of evolving white PTFE tape wrapped around the pipe fitting on a hand on the white background.
