REINFORCED GRAPHITE GASKET WITH METAL MESH, FOIL OR TANGED METAL
Reinforced Graphite Gasket is an improved semi-metal gasket reinforced by a metallic mesh, foil or tanged metal. It is laminated from compressed layers of purified natural graphite flake and mechanically bonded with the stainless steel tangs to ensures the material retains dimensional stability in high temperatures.
Reinforced graphite gasket has many excellent sealing properties, such as heat stability, self-lubrication, corrosion resistance and without being brittle and aging. In addition, under extreme conditions, reinforced graphite gasket can be used stably for long time without maintenance. So it is suitable for pipe, valve, pump, pressure container, heat exchanger and condensate.
Reinforced graphite gasket can be made into special shapes.
COMMON SPECIFICATIONS
Reinforced material:
Low carbon tanged metal.
Stainless steel tanged metal.
Stainless steel flat sheet.
Stainless steel mesh sheet.

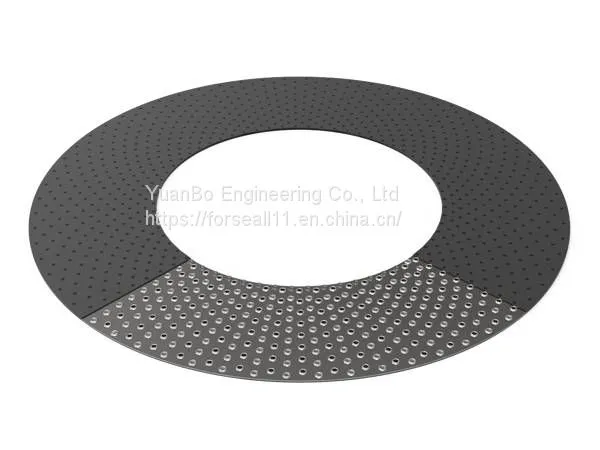

A piece of reinforced graphite gasket with low carbon tanged reinforced layer.
Low carbon tanged metal reinforced layer
A piece of reinforced graphite gasket with stainless steel tanged reinforced layer.
Stainless steel tanged metal reinforced layer
A piece of reinforced graphite gasket with stainless steel flat sheet reinforced layer
Stainless steel flat sheet reinforced layer
A piece of reinforced graphite gasket with stainless steel mesh sheet reinforced layer
Stainless steel mesh sheet reinforced layer
Reinforced Materials Pressure (N/mm2) Compressibility (%) Recovery (%) Gas Permeability (cm3/min) (T=1.5 mm) Sealing Quality (T=1.5 mm) Sealing Constant
N2m (1/hr) Bumming Oil AM (1/hr) "M" "Y"
Tanged Carbon Steel Gasket ≥ 4.8 30–35 15–20 ≤ 0.8 30 3.0 9000
SS304/SS316 Tanged Gasket 30–35 15–30 ≤ 0.8 60 2.5 4000
SS304/SS316 Flat Gasket 30–40 10–15 ≤ 0.4 35 2.0 900
SS304/SS316 Mesh Sheet 40–50 15–20 ≤ 0.1 70 3.0 5000
FEATURES
Corrosion proof.
High purity and density.
Long using life.
High temperature resistance.
Excellent compressibility and recovery.
No softening point.
APPLICATIONS
Reinforced graphite gasket is suitable for pipe, valve, pump, pressure container, heat exchanger, condensate punched flange, cylinders of diesel engines and water meter.
Reinforced graphite gaskets are used on the valves on the white background.
Reinforced graphite gaskets for valve
One hand is using a brush to wipe the reinforced graphite gasket mounted on the flange.
Reinforced graphite gaskets for flange
