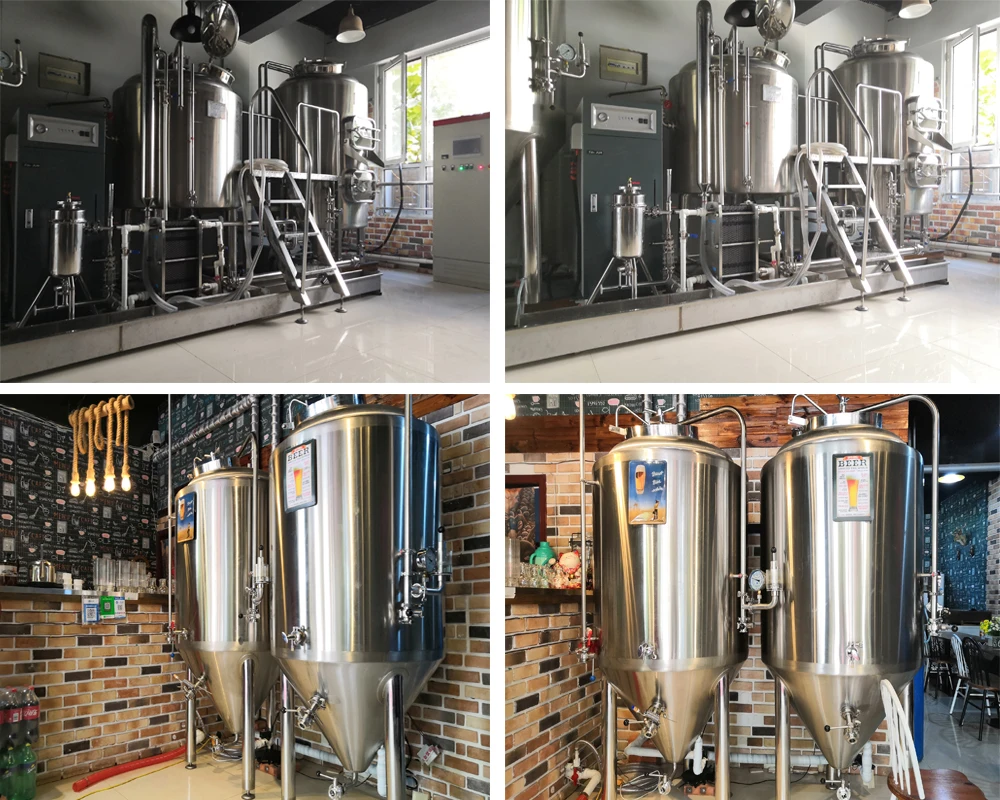

Beer Mash System/fermentation Tank/bright Beer Tank

ZHBrew- craft beer brewing equipment

Applications area: Beer Bars, Hotels, Restaurants, Micro brewery,etc.

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

nergy consumption of about 20%;

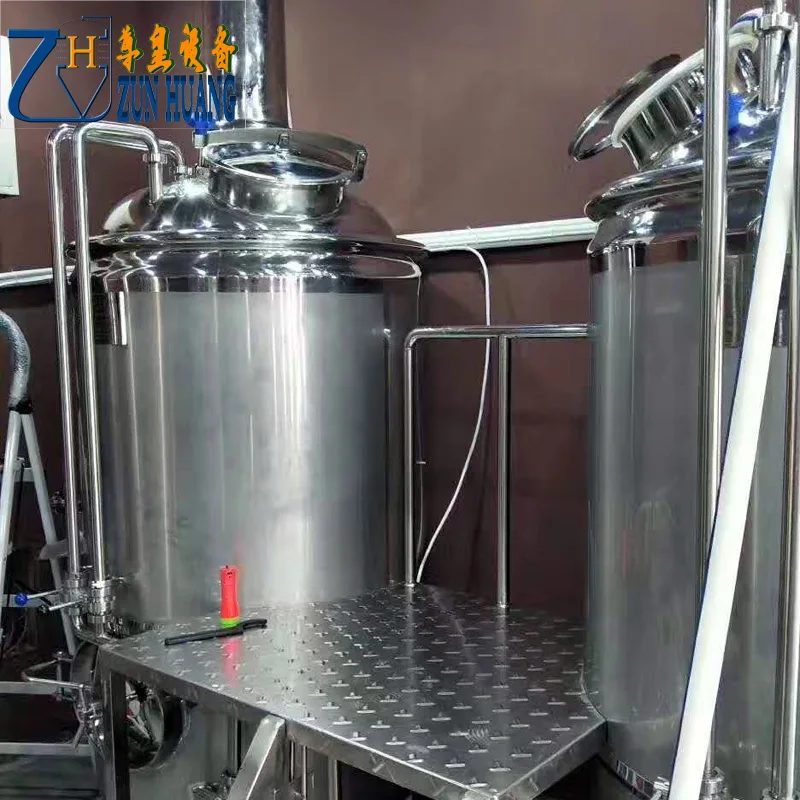

Mash system:

2vessel 3 tank, this unit is separated by lauter tank and whirlpool, which can get more clear beer, also easy to operate the equipment.

Also, we adopt milled false bottom in lauter tank to ensure filter quality.

1.System is mainly composed by mash/lauter tun, boiling pot, whirlpool tank, hops adding equipment etc.

2.The main body of mash tun, mash copper system all using international standards, high-quality 304 stainless steel.

3.The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.

4.The full mirror polished technology for the inside of the tanks which expose to materials such as wheat mash; external matte polished to ensure customers with high quality and low price, beautiful mash system.

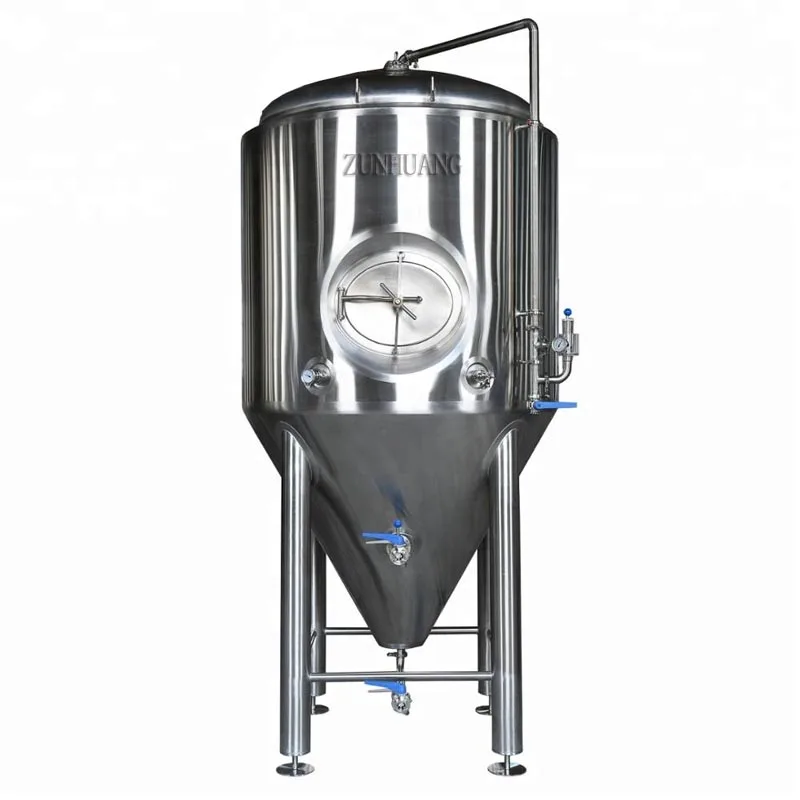

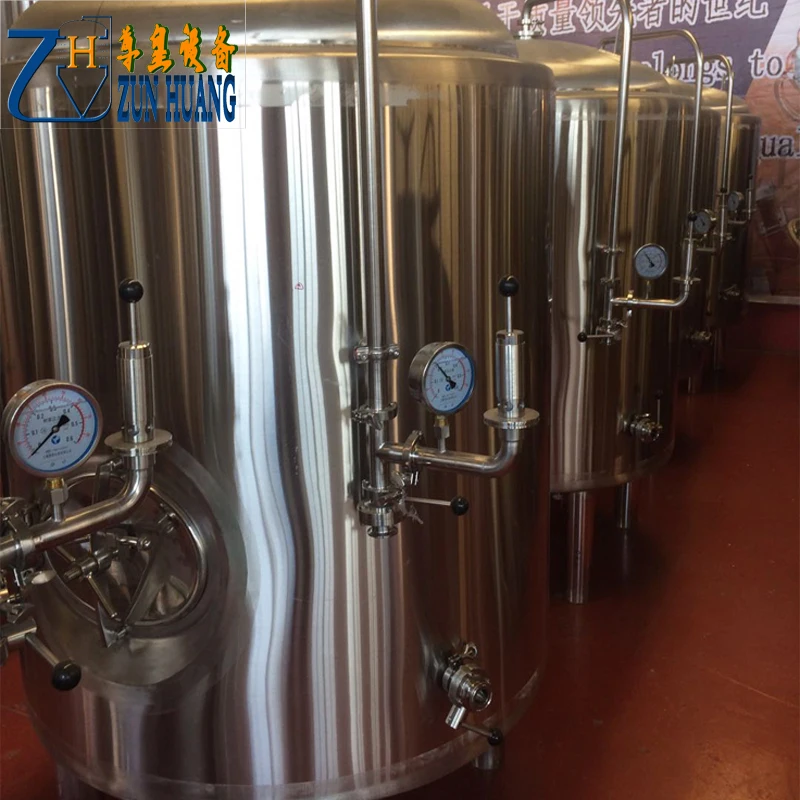

Fermentation system:

1.The inner of the fermentation tank are adopted 304 stainless steel.  Use polyurethane to keep warm. The outside scarfskin is according to the customer’s requirement.You can choose stainless steel polishing, carbon steel, spray finishing and so on.

2.Adopted the international standard of fermentation technology, diverse methods to control the temperature. The inner surface of the tank is mirror-polished. The standard is≤0.8um ≤0.6um ≤0.2um. Completely meet the demand of PLC and sterilize system.

3.The cooling jacket can achieve all countries’ standard, supply Miller, arch, corrugated plate and so on. Meet all kinds of demand of cooling technology of coolant and pressure.

1.Ocean shipment,railway shipment,express delivery.

2.No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3.And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4.We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.

Internationally recognized: Zunhuang technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.
