200l 300L 500L Micro Brewery Equipment Brewing Beer Brewing Kettles Stainless Steel Conical Fermenter Beer Brewing Equipment

Zunhuang is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, installation at site and brewing technology transfer.

We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.

Mash System Specifications:

1.Inside surface:  SUS304, Thickness:2.5mm

2.Outside surface: matte polishing stainless steel, Thickness:1.5mm;

 Thermal insulation material: rock wall, thickness: 80MM,

 Polishing coefficient: 0.4µm

3. Materials: Stainless steel 304

4.Heating method: steam heating jacket, heating area:1.5m2,side and bottom part.

5. Feedstock method: it is designed by seal pump to pump out design, Mash pump with high power and low speed.

6. Sealing method: Top pressure manhole feeding, overpressure automatic discharge function.

7. Temperature measurement method: PT100 temperature probe

8.Cleaning method: CIP Fixed rotate cleaning ball and sparage coil. top manhole,

9. With:thermometer, level all necessary valves and fittings;

10.Stainless steel legs, with screw assembly to adjust leg height.

11. Matching valve accessories

12.Process: TIG welding, polished inside and outside, no welding dead, fluid quality assurance.

13.The upper part is equipped with a reducer and a connecting mixer.

14.The internal mixing device is equipped with the connection speed reducer and evenly heated.

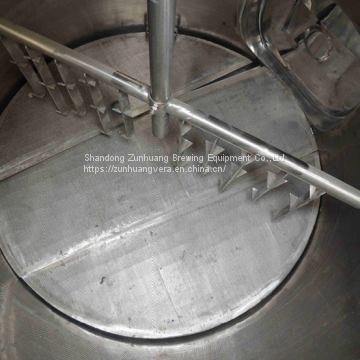

Upper tillage mechanical stirring, rotation speed: 30 rev / min

high power, low speed to ensure complete bad layer

milled sieve plate, gap 0.75MM, anti-blocking ladder structure.

All materials are 304 stainless steel, argon arc welding,

internal and external polishing,

polishing coefficient 0.4um, polishing without dead angle,

not only hygienic, but also guarantee the quality of the fluid

One of the reducers is installed in the upper part and the stirring device is connected.

Uniform stirring and heating.

 Specific parameters:

1.cylinder tank; Inside surface: SUS304, Thickness:2.5mm,Outside surface: polishing stainless steel, Thickness:1.5mm,Polishing coefficient: 0.4µm

2.Thermal insulation material: Polyurethane (PU) foam,Insulation thickness: 80MM.

3.Design pressure :3bar, Working pressure: 1.5bar;

4.Bottom design: 60degree cone for easy to exist yeast. Polishing coefficient: 0.4µm

5.Cooling method: Dimple cooling jacket(Cone and cylinder 2 zone cooling); Or screw type belt

6.Cleaning system: Fixed-round rotary cleaning ball.

7.Temperature measurement method: PT100 temperature probe

8.Control system: PT100, temperature control;

9.Manhole: side manhole on the cylinder, Shadowless manhole.

10.With: CIP arm with spray ball, pressure gauge, mechanical pressure regulating valve, hops adding device and CO2 adding device,sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.

The top manhole

The side manhole

The fermenter you have seen is made by this way.

BEER BREWING SYSTEM CONFIGURATION

If you don't know which brewery equipment is you need, please see belows questions, just tell me the answers according to the prompt:

01.The production capacity one day that you want to ?

02.The heating system:electric heating/steam heating/direct fire heating.which one heating is you prefer.

03.The material:stainless steel 304./red copper which material is you need ?

04.The brewery set up in hotel/pub or small brewery or for home brewery ?

05.The other request of the brewery:fermenters quantities,the capacity.

06.How many batches one day can be production ?

07.For the bottle filling machine,beer filter,keg washing and filling machine if you need we also can supply it.
