Product Details
| Brand Name: | FAST | Place of Origin: | China | Model Number: | SKZ40/2 |
Product Description

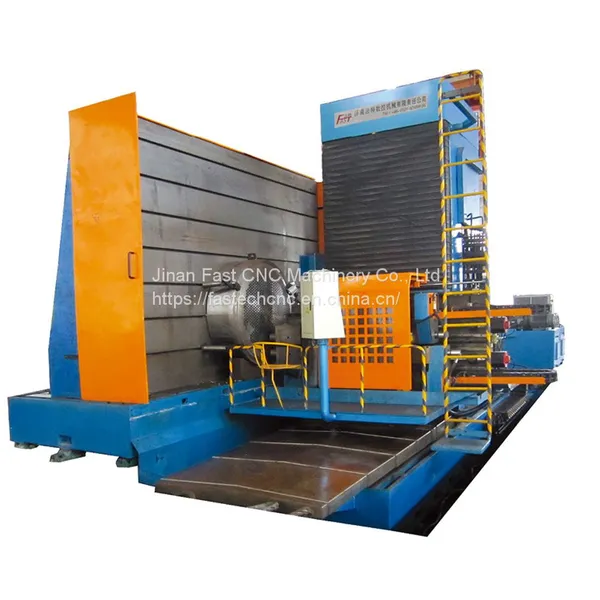

CNC Horizontal Double Spindle Deep Hole Drilling Machine Model SKZ40/2
APPLICATION
This machine is mainly used to process deep holes on the tube plate of heat exchanger for petrochemical, boiler, and thermoelectricity industries.
ADVANTAGES
● This machine is double-spindle drilling simultaneous, high efficiency.
● There are two kinds of drilling when needed as option, BTA drill or gun drill.
● This CNC drilling machine uses carbine external chips cleaning gun drilling or internal chips cleaning BTA drill, with advance technology, high processing accuracy, and stable quality.
● The cooling liquid can be used recycling. Germany imported air-cooling system.
● This machine can clamp work piece Φ4000mm, drill hole deep 750mm. This machine can drill Max. Φ40mm. The Max. Depth of drilling is 800mm. The rotation speed of spindle is 2500r/m.
TECHNICAL DATA
| Model | SKZ40/2 |
| Max. Drilling Diameter of Workpiece (mm) | Φ4000 |
| Max. Drilling Thickness of Workpiece (mm) | 750mm |
| BTA drill Drilling Diameter (mm) | Φ7~Φ26 |
| Gun drill Drilling Diameter (mm) | Φ16~Φ40 |
| Dimension of Clamping Worktable Bend Plate (W*H) (mm) | 4200*2450 |
| Quantity of Drilling Head | 2 |
| Center Distance of Drilling Head (mm) | 170~220 adjustable |
| Rotation Speed of Drilling Head (r/min) | 750~2500 |
| Drilling Head Power (kW) | 11*2 |
| X-Axis Stroke (mm) | 4000 |
| X-Axis Max. Speed (r/min) | 4 |
| X-Axis Servo Motor Power (kW) | 4.5 |
| Y-Axis Stroke (mm) | 2000 |
| Y-Axis Max. Speed (r/min) | 4 |
| Y-Axis Servo Motor Power (kW) | 4.5 |
| Z-Axis Stroke (mm) | 900 |
| Z-Axis In-feeding Speed (r/min) | 0~4000 |
| Z-Axis Max. In-Feeding Force (kN) | 28 |
| Z-Axis Servo Motor Power (kW) | 2 |
| Hydraulic System | Ask Sales For More Info. |
| Cooling System | Ask Sales For More Info. |
| Chip Removal | Ask Sales For More Info. |
| CNC Axes Numbers | 5 |
| Total Motor Power (kW) | 85 |
| Processing Precision | Ask Sales For More Info. |
| Total Weight (Ton) | 75 |
| Outline Dimension L*W*H (mm) | 9000*6000*4400 |
★ All of these models can be customized according to customer requirements.
