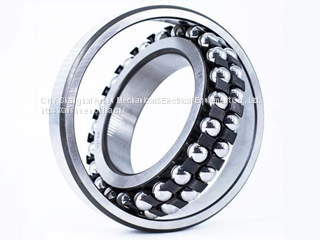

Self-aligning Ball Bearings 1200 2200 1201 2201 1202 2202 1203 2203 1204 2204 1205 2205 1206 2206

FOB Price

US$ 1 - 30 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHY	Place of Origin	China
Model Number	1200 2200 1201 2201 1202 2202 1203 2203 1204 2204 1205 2205 1206 2206	Number of Row	Double Row
Seals Type	open, -2RS,EK	Precision Rating	P0
Outside Diameter	30, 200	Bore Size	10, 110

Product Description

Emailbearing：@anshu-electromech.com

The self-aligning ball bearing is a bearing with spherical balls and a centering function between the inner ring of the two raceways and the outer ring of the spherical race. The radial load capacity is large, and it is suitable for heavy load and impact load. The self-aligning ball bearing cage is made of steel plate or synthetic resin. The characteristic is that the outer ring raceway has a spherical shape and has self-aligning property, but the relative inclination of the inner and outer rings must not exceed 3 degrees. The inner diameter of the self-aligning ball bearing is cylindrical or conical. The conical inner bore has a taper of 1:1 2 or 1:30. In order to enhance the lubrication performance of the bearing, an annular oil groove and three oil holes are machined on the outer ring of the bearing. Self-aligning ball bearings with dust caps and seals are filled with the right amount of grease. They should not be heated or cleaned before installation. No lubrication is required during use. Adapt to operating temperature - 40 °C to + 120 °C. between.

model	d	D	B	seal	Accuracy level	weight（kg）
1200	10	30	9	A、AK	P0	0.033
2200	10	30	14	A、AK	P0	0.042
1201	12	32	10	A、AK	P0	0.0411
2201	12	32	14	A、AK	P0	0.053
1202	15	35	11	A、AK	P0	0.0497
2202	15	35	14	A、AK	P0	0.06
1203	17	40	12	A、AK	P0	0.0734
2203	17	40	16	A、AK	P0	0.088
1204	20	47	14	A、AK	P0	0.116
2204	20	47	18	A、AK	P0	0.136
1205	25	52	15	A、AK	P0	0.139
2205	25	52	18	A、AK	P0	0.158
1206	30	62	16	A、AK	P0	0.219
2206	30	62	20	A、AK	P0	0.251
