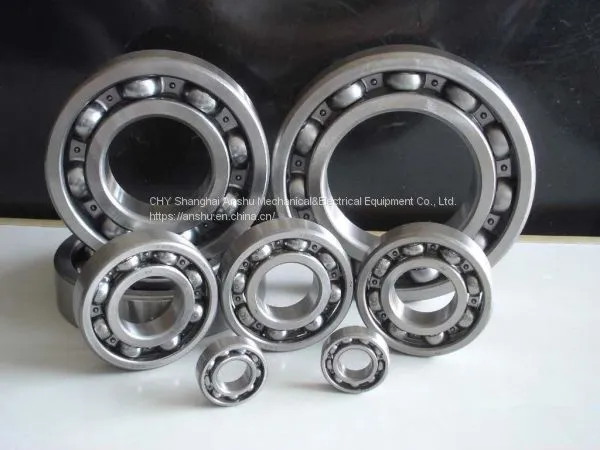

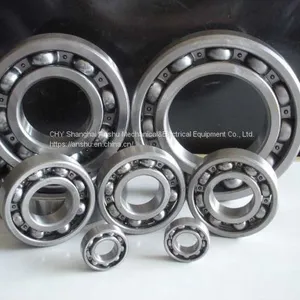

Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852

Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 thumbnail-1
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 thumbnail-2
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 thumbnail-3
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 thumbnail-4
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 photo-1
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 photo-2
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 photo-3
Deep Groove Ball Bearings 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852 photo-4
US$ 0.1 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHY
Place of Origin:
China
Model Number:
6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHY
Place of Origin China
Model Number 6826、6828、6830、6832、6834、6836、6838、6840、6844、6848、6852
Number of Row Single Row
Seals Type open, -2Z, -2RS
Precision Rating P0, P6, P5
Outside Diameter 3, 1100
Bore Size 1, 800

  Email：bearing@anshu-electromech.com

Deep groove ball bearings are widely used rolling bearings. It is characterized by low frictional resistance and high speed. It can be used on parts with radial load or combined load of radial and axial action. It can also be used for parts subjected to axial load.

The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. The deep groove ball bearing types are single row and double row. The deep groove ball structure is also divided into two types: sealed and open. The open type refers to the bearing without sealing structure. The sealed deep groove ball is divided into dustproof seal and oil proof. seal. The dust seal cover material is stamped from steel plate, which is simple to prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease inside the bearing from overflowing. The single row deep groove ball bearing type code is 6, and the double row deep groove ball bearing code is 4.

model d D B seal Accuracy   level weight（kg）
61826 120 150 16 open、2Z、2RS P0 0.537
61828 140 175 18 open、2Z、2RS P0 0.832
61830 150 190 20 open、2Z、2RS P0 1.15
61832 160 200 20 open、2Z、2RS P0 1.23
61834 170 215 22 open、2Z、2RS P0 1.86
61836 180 225 22 open、2Z P0 1.98
61838 190 240 24 open、2Z P0 2.53
61840 200 250 24 open、2Z P0 2.67
61844 220 270 24 open P0 2.9
61848 240 300 28 open P0 4.48
61852 260 320 28 open P0 4.84



Product Tags: Bearings , Ball Bearings , Deep Groove Ball Bearings
