Automatic Double PE Coated Forming Paper Cup Machine For 12OZ Cup
- Shanghai/Qingdao
- T/T Credit Card
You May Like
-
Professional Mini Paper Cup Maker Coffee Cup Forming Machine
-
Automatic Paper Cup Form Machines Automatic Used Paper Cup Machine
-
Semi Automatic Paper Cup Forming Machine for Sale
-
Stainless Steel Home Use Mesh Scrubber Knitting Machine
-
Automatic Metal Wire Clean Ball Making Machine in Nepal
-
High Quality Bamboo Clothes Pin Making Machine/clothes Peg Production Line/Clothes Hanger Making Machine
Product Details
| Brand Name | WANTUO | Place of Origin | Henan, China | |
| Certification | CE | |||
| Warranty | 1 Year | Weight | 850kg, 850kg | |
| Dimension(L*W*H) | 2555x 1250 x 1680mm | Voltage | 220V 50Hz or 380V 50Hz, 220V 50Hz or 380V 50Hz | |
| Condition | New |
Product Description

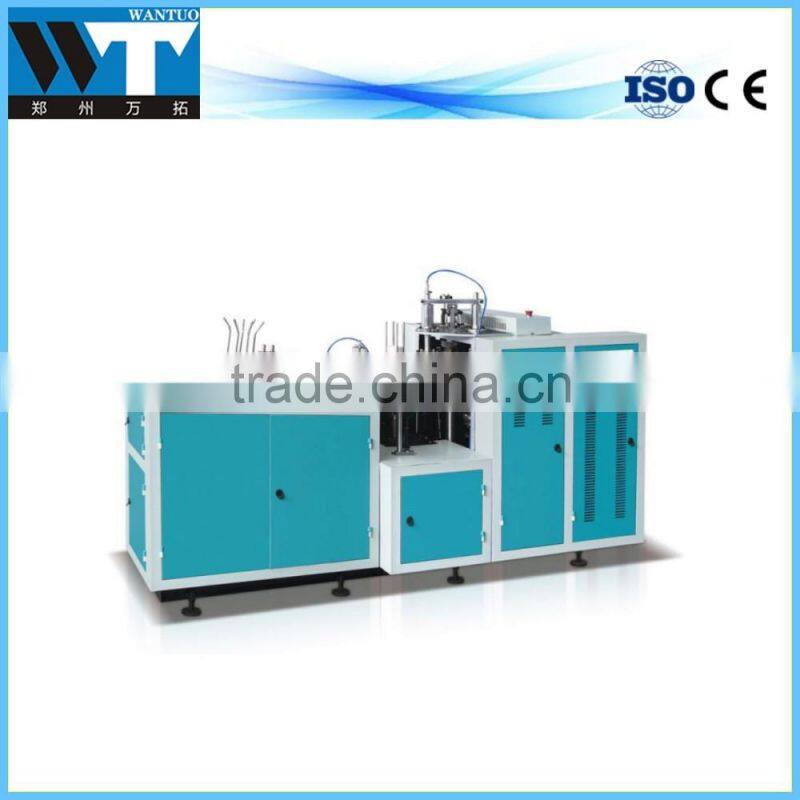

Automatic Double PE Coated Forming Paper Cup Machine For 12OZ Cup
Automatic Double PE Coated Forming Paper Cup Machine For 12OZ Cup

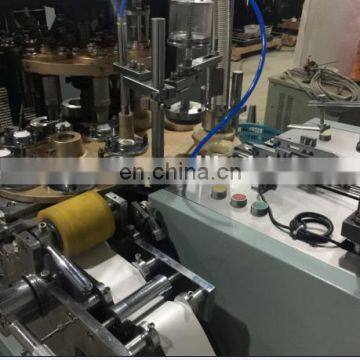

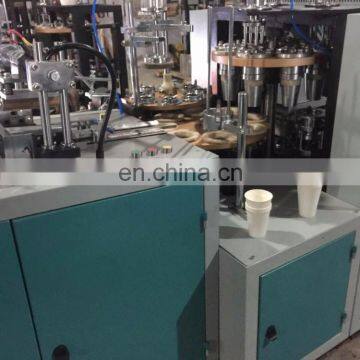

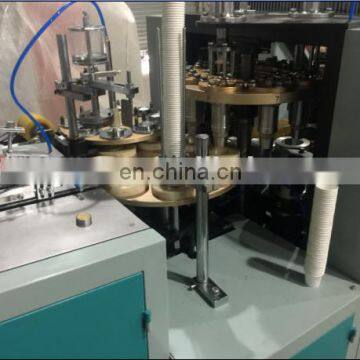

Our newly designed Coffee and Tea Cup Making Machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
1. Output is improved: The productivity is improved from 50-60 pcs/min to 60-70 pcs/min.

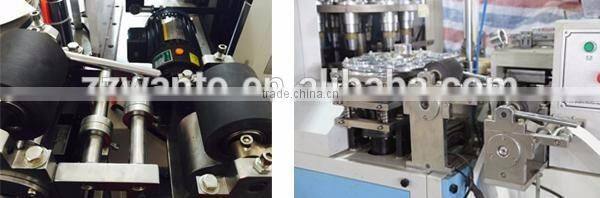

2. Stepping-motor is used to control the bottom paper feeding, so that the gap between the bottom-paper is controlled within 0.1mm, which can make machine more stable and save raw material. With light eyes under the paper roll,the machine will be stopped when out of bottom-paper, avoiding the waste in paper.

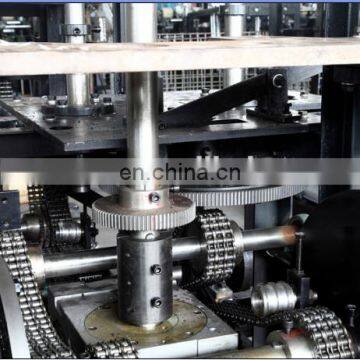

3. Gear drive is adopted to avoid the defect of loose gap of chain drive.

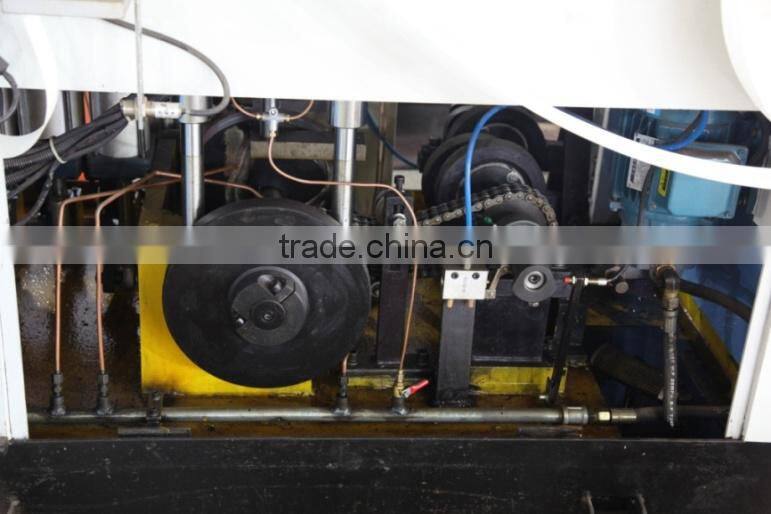

4. We use a self-lubrication system in the machine, which reduces the friction between the parts. And we do not need to add the oil manually. Sometimes worker are not willing to add the oil everyday. In this case the machine can be maintained without manually fueling.

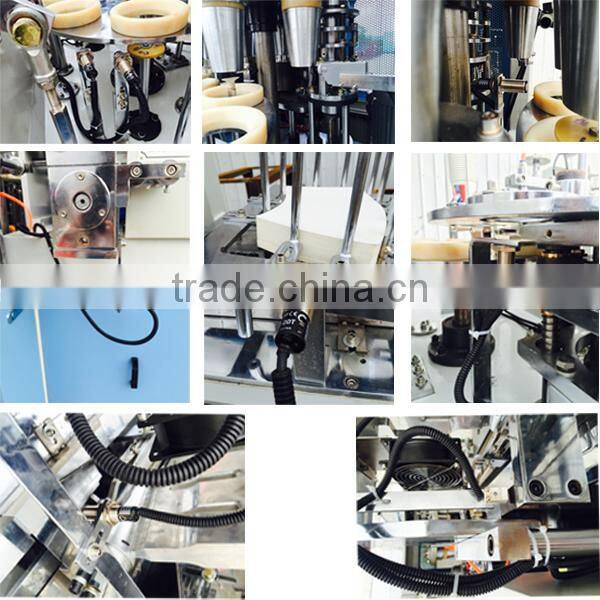

5. This device adopt non-contact multi-point light control switch (such as in paper holder, cup tube ,bottom paper and so on, according to customer demand). It can detectworking situation, then achieve a fault alarm preventing machine from collision, makes the machine more stable and longevous.
6. Paper tube station uses independent cam to handle cup holder. This is advanced in stability and will not make noise when it works.
7. The machine is equipped with gear motor simplifies the complicated system and makes the machine more stable.
Parameters,
Model | WT-DL12 |
Suitable size | 5-16oz cup / 20--50oz bowl |
Raw material | PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic);200-350g/m^2 |
Speed | 45-50pcs/ min |
Power | 4kw |
Voltage | 220v/380v, 50hz |
Weight | 850kg |
Size | 2100 x 860 x 1600 mm |

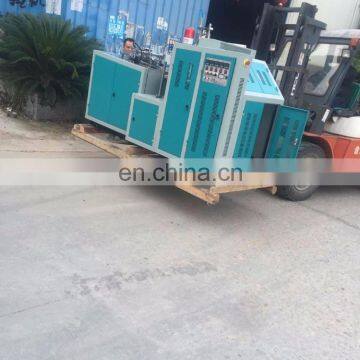

Packing: wooden box free of fumigation for Automatic Double PE Coated Forming Paper Cup Machine For 12OZ Cup
Quality Guarantee: Our Quality guarantee term is for one year, Malfunctions which are caused by operation mistakenly will be responsible for customers
1 Quality guarantee
2 Pre-Testing before forwarding
3 Operation Video and instruction
4 Full Technical service
1 Manufacturer for Automatic Double PE Coated Forming Paper Cup Machine For 12OZ Cup
2 Alibaba Assessed Gold Supplier
3 100% Quality control before forwarding
4 Competitive price withe best quality and service
1 Are you manufacturer
Yes we are the manufacturer and welcome to visit our factory
2 Can you change the machine voltage as our request
Yes we can change the machine voltage as customers’ request
3 How about your after-sale service
Our engineer can go outside to install and train your workers to operate the full machine line
4 Warranty time of your machine
2 years warranty time except for consumable spare parts
5 How about delivery time of your machine
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time.
