This cocoa process line is used to make cocoa liquor, cocoa butter and cocoa powder
The equipment include cocoa roaster, cocoa winnower, cocoa liquor machine, cocoa cake crusher and grinder, hydraulic cocoa butter press machine, cocoa powder making machine and so on.
How to make cocoa butter and powder
1. cocoa bean roaster
2. cocoa bean winnower
3. cocoa nibs grinder into liquor
4. liquor tank
5. cocoa butter press machine to make butter and cake
6. cocoa cake crusher
7. cocoa cake grinder into powder
Pcitures of cocoa butter as following:
please check some machines about cocoa process as following:
1. COCOA BEAN ROASTER
the process of cocoa roaster: the cocoa bean should be roasted at high temperature 100-120 degree ,
The whole process takes about 30 minutes to ensure that every cocoa beans after roasting, exudes a rich cocoa flavor.
the temperature of the roasted can be sdjustable as your requiement.
Technical data
| Model | Dimension | Capacity | Power | Heating type |
| SRS-1 | 2900*1200*1700 MM | 100-150 KG/H | 1.1 KW | ELECTRIC OR GAS |
| SRS-2 | 2900*2200*1700 MM | 150-250 KG/H | 2.2 KW | ELECTRIC OR GAS |
Pcitures of roaster
2. COCOA BEAN WINNOWER.
cooca bean winnower is used to remove the cocoa bean shell, after winnower, you can get the clean cocoa nibs for make liquor.
Technical data of winnower
| Model | DX-400 |
| Capacity | 200-400kg/h |
| Main Power | 2.2kw |
| Power of fan | 0.75kw |
| Dimensions | 1.1*0.9*1.6m |
| Weight | 140kg |

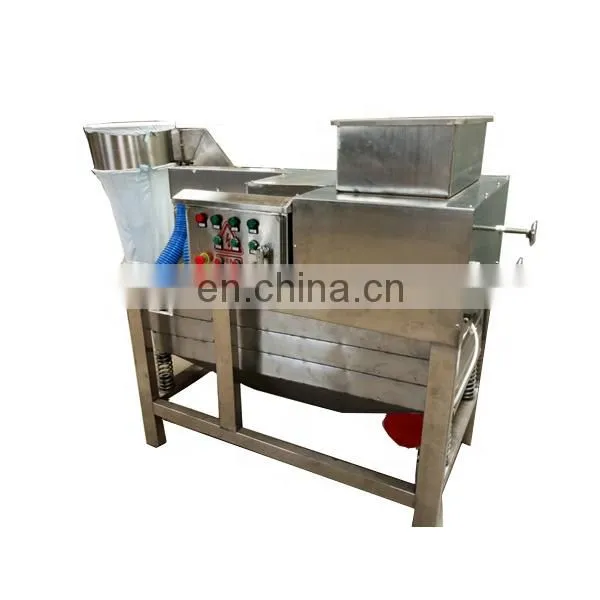

Pictures of winnower

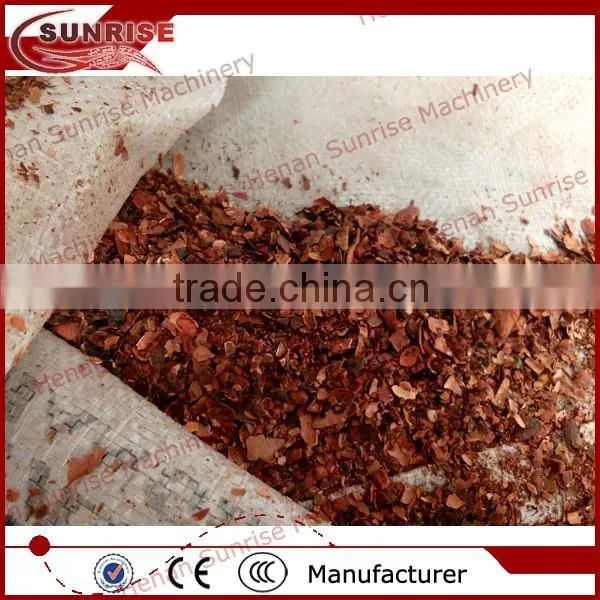

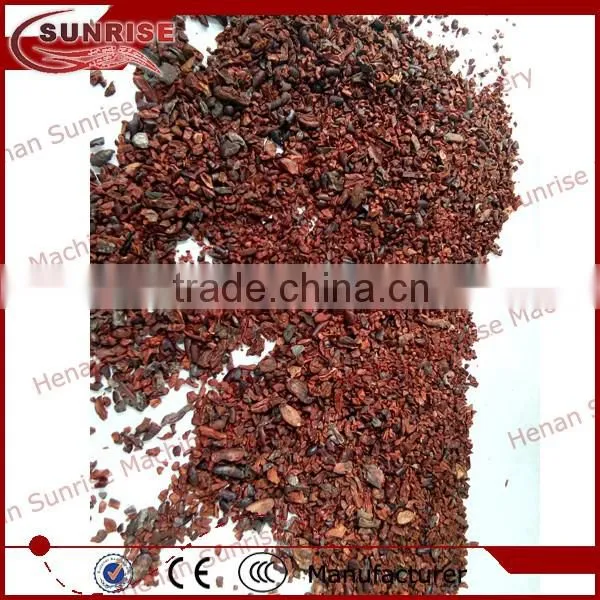

Final product
3. COCOA LIQUOR MAKING MACHINE
the grinder machine grind the cocoa bean into paste/ butter called cocoa liquor, also known as bitter cocoa material. Warmed Cocoa liquor having the characteristics of the liquid, cooled cocoa liquor into block.
The technial data of cocoa liquor
| Model | SRS-110 | SRS-130 |
| Final size | 2-50 micron | 2-50 micron |
| Power | 5.5 kw | 11 kw |
| Capacity | 200 kg/h | 300 kg/h |
| Dimension | 680*380*930 mm | 720*480*980 mm |
| Weight | 300 kg | 380 kg |
| Materail | 304 stainless steel | 304 stainless steel |

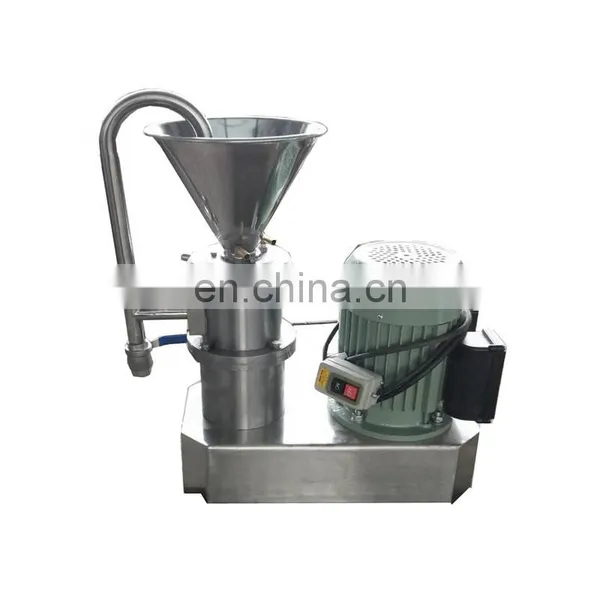

Pictures of liquor machine
4. COCOA BUTTER PRESS MACHINE
We can use hydraulic press machine to press the cocoa liquor to get the cocoa butter and cocoa cake.
We can use the cocoa butter to make chocolate, and use the cocoa cake to make cocoa powder.
Technical data
| Model | DYZ-460-III |
| Unit working pressure | 40 Mpa |
| Working thrust | 150t |
| Squeeze tube diameter | 460 mm |
| Squeeze height | 700 mm |
| Capacity | 150 kg/h |
| Average productivity | 1200 kg/ 8 h |
| heating power | 4 kw |
| weight | 2300 kg |
| dimension | 1.5*1.1*2.6 m |

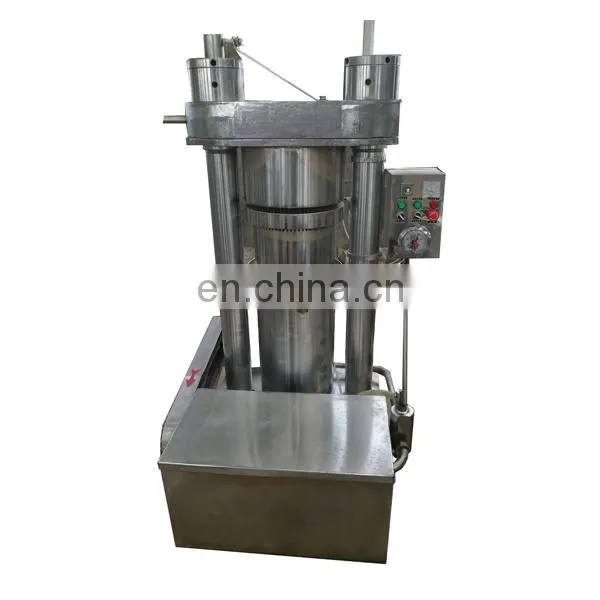

Pictures of cocoa butter press
Technical data
| Model | DYZ-230 | DYZ-410 | DYZ-460 | DYZ-460-II | DYZ-460-IIII |
| Capacity | 10-15 kg/batch | 80 kg/batch | 80-100 kg/batch | 100 kg/batch | 150 kg/batch |
| Max working pressure | 50 Mpa | 50 Mpa | 50 Mpa | 50 Mpa | 50 Mpa |
| Working thrust | 120 T | 120 T | 150 T | 210 T | 210 T |
| Diameter of tube | 230 mm | 410 mm | 460 mm | 460 mm | 460 mm |
| Pressing height | 500 mm | 500 mm | 500 mm | 550 mm | 700 mm |
| Heating power | 4 kw | 4 kw | 4 kw | 4 kw | 4 kw |
| Weight | 750 kg | 1200 k g | 1800 kg | 1900 kg | 2300 kg |
5. COCOA CAKE CRUSHER AND GRINDER
after press, you can get cocoa cake and cocoa butter, cocoa butter is used to make while chocolate.
cocoa cake is used to make cocoa powder.
cocoa cake is very big, you have to use a crusher to crush the cake into very small pieces. then you can use a grinder to grind the
cake into powder, by 30 mesh 50 mesh, 100 mesh 120 mesh and so on.
Pictures of cocoa cake crusher
Pictures of cocoa powder making machine
Technical data of cocoa powder making machine
| Model | SRS-20B | SRS-30B | SRS-40B | SRS-60B |
| Material of machine | 304 Sainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Fineness | 10-120 mesh | 10-120 mesh | 10-120 mesh | 10-120 mesh |
| Capacity | 60-150 kg/h | 100-300 kg/h | 150-600 kg/h | 500-1000 kg/h |
| Power | 4 kw | 5.5 kw | 7.5 kw | 11 kw |
| Dimension mm | 950*550*1250 | 1150*600*1330 | 1200*650*1550 | 1350*750*1680 mm |
| Weight | 200 kg | 300 kg | 420 kg | 620 kg |
Package: our machine are all with plywood case packing, one set machine with one case.
Payment: T/T, Westeran Union, L/C, Paypal, Secure payment of Alibaba.
Delivery time: We will deliver within 7-12 working days after receiving front payment.
Warranty period: All our machine is with one year warranty. We will provide free parts and techcical support for operation. After one year, we will provide spare parts with manufacturing cost.
After-sales Service:
1. Before deliver the machine, we will test and adjust everything properly.
2. Once all is done, we will make detailed picture for customer to confirm for delivery.
3. Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.
4. Any problems occur while using, we will provide profession advice and technical support ASAP.
5. Spare parts of the machien is provide whole serving life with resonable price.
Henan Sunrise Machinery Co., limited has been in food processing line for many years, with the advantage of high quality and reasonable price, safe packing and fast delivery, advanced testing equipments as well as perfect follow up service. Our machines have enjoyed great popularity worldwide market, sepcially in Asia and Africa countries such as India, Malaysia, South Africa, Tanzania, etc.
Q: What is the guarantee time ? if it broken or lost during sea freight who will take responsible?
A: Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it. if machine lost or broken during sea freight. we take responsible for it.
Q: During Guarantee time, if it broken by machine design, what should we do?
A: during guarantee time, if machine broken by machine design fault, we talk all responsible, for machine broken part free charge send to you, if after change broken part machine can not work, we would send new machine to you for exchange.
Q: Which kind documents your company can provided?
A: after ship depart from China port, we can get documents from Shipping company such as: bill or lading , insurance documents. packing list, commercial invoice. if you need, we can also apply CO, FORM F, FORM E etc.
Q: After guarantee time, if we need spare parts, can you provided it ?
A: we can provide spare part of fruit crusher.
Q: Which kind of package you will use ?
A: For export , we usually use plywood box. which meet export standard.
If you have any question of cocoa process machine, please contact me no hesitate!!!
