Low-pressure Screw Air Compressor

Low-pressure Screw Air Compressor

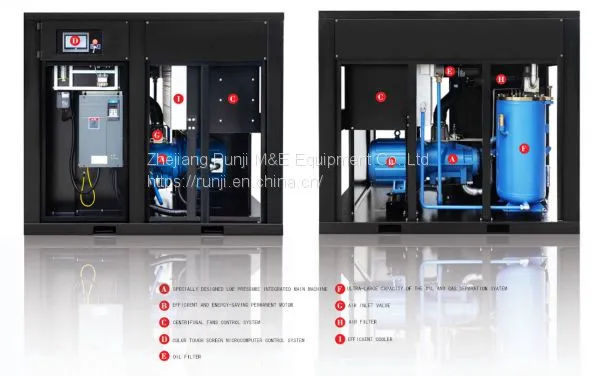

A.Apply AED series main machine of the same air volume,special optimized exhaust butterfly outlet,featured in low roating speedhigh efficiency,long service life ,low failure rate and low noise.thanks to the large rotor low speed design.The speed of permanent magnet motor is low,with low moise and remarkable energy efficiency.

B.This motor enables the  rotor to rotate via the magnetic field generated by AC voltage of the stator coil and the magnetic force of the magnetic field.

C.xiai-flow cooling fan applies frequency conversion control and can save about 50% energy.It controls speed of the fan according to exhaust temperature and prevents electricity waste.it keeps  temperature of  the system and all parts stable and improves durablility of parts.As the fan is controlled by frequency conversion,its noise is further reduced.

D.1.Advanced microcomputer control and driving sytem realizes intelligent control,automati adjustment of  variable speed aitr volume control,load start and soft start;

    2.Current flowing is eliminated,and service life of parts is extended,so reliability of the system is improved largely;

    3.Intelligent and dynamic conteol,display working condition of every part of the compressor dynamically,real-time and visual pressire,temperature and current working curve;

    4.Vey large memory:8M flash ROM+16M SDRAM,save thousands of is historical failure records;

     5.It is equipped with printer interface and can print work information table of the compressor at any time;RJ45 Ethernet interface,support interconnection with HMI and Ethernet controller or PC.

E.It is equipped with the rotary-type oil filter of high-end material for aviation.Its effect is 20% higher than that of common filter element,so it extends normal service life of the compressor effectively.

F.Comparing the low pressire air compressor with common air compressor,volume of its compressed air is biger;flow velocity is higher;the design of its oil and gas separation system is different from that of common air compressor.In contrast to common air compressor of the same air volume,capacity of ECOAIR oil and gas separation system increase over 80%,so it makes sure quality of the compressed air and service life of the oil and gas separator fully.

G.Advanced design of the air value,adjustment range of inlet air:0-100%,djusted by the capacity regulating value,featured in low pressure loss,stable running and long service life.

H.High dust holding capacity and low flow resistance design is applied,so it can filter tiny solid particles in air,reches 99.5% dust removal efficiency and makes sure normal running and long service life of every part of the system.

I,It has large heat exchange area design,so it can improve cooling efficiency and prevent the machine from high temperature effectively.Antiseptic treatment is carried out to its inner wall ,so it is applicable for service working conditions and its service life is extended.
