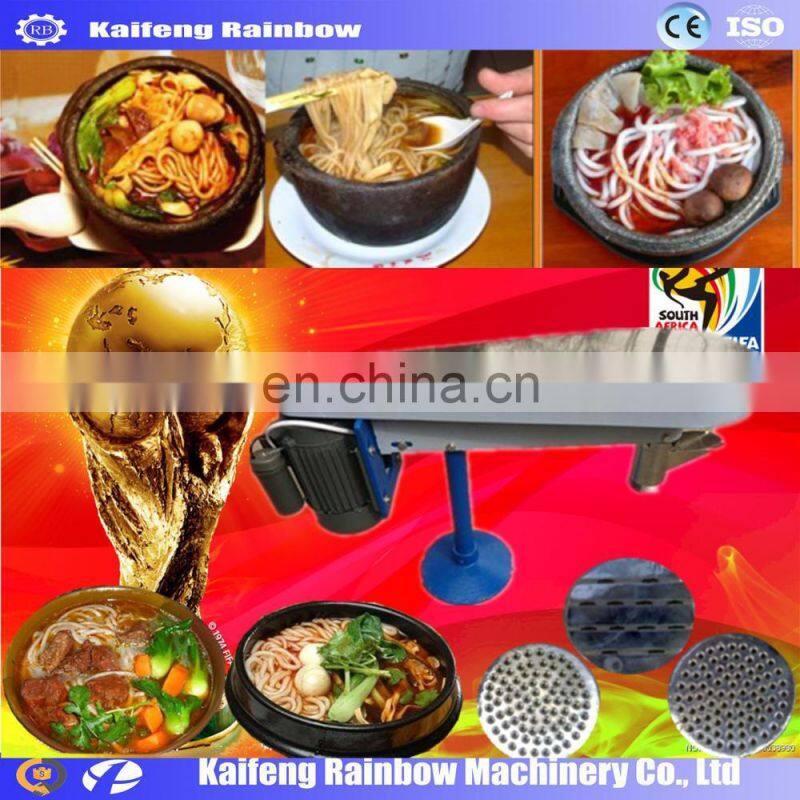

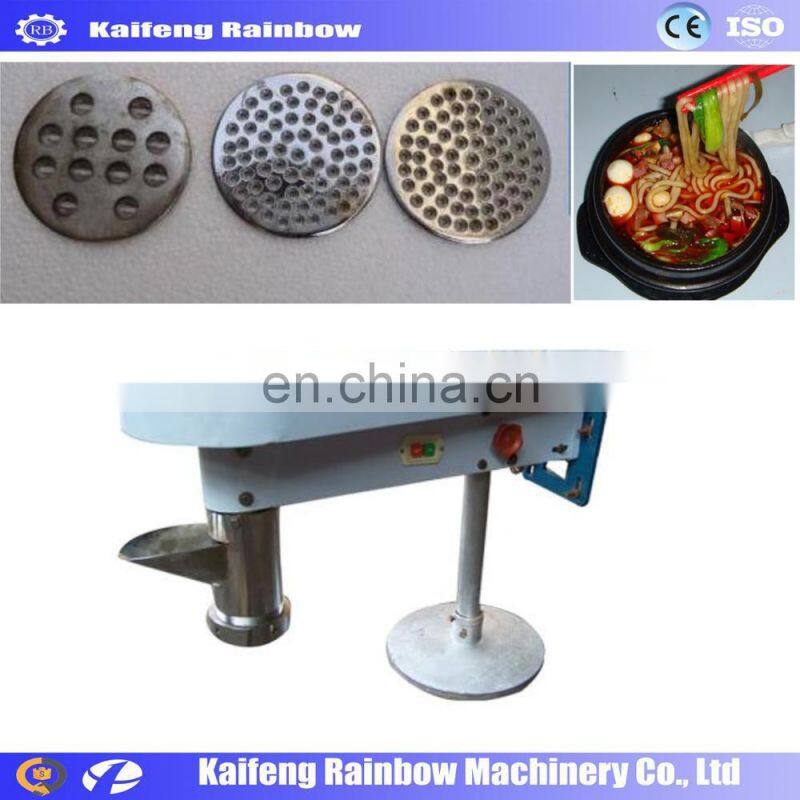

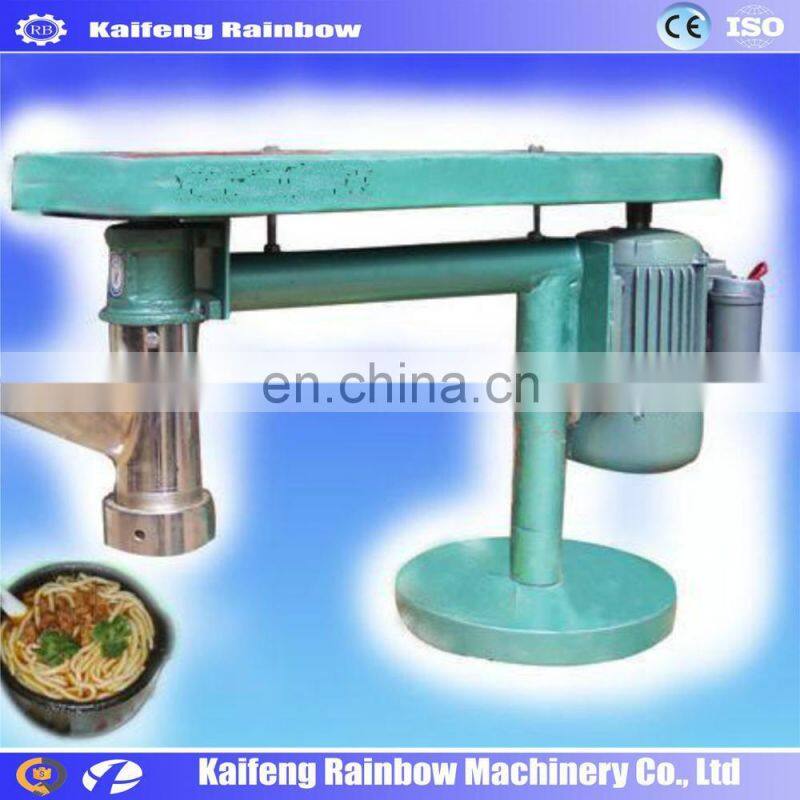

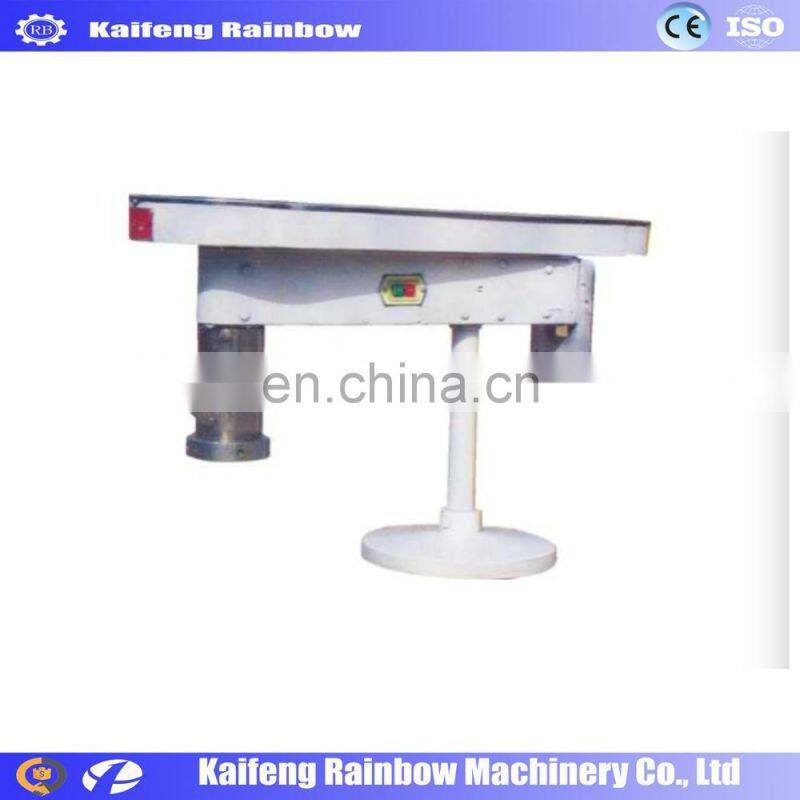

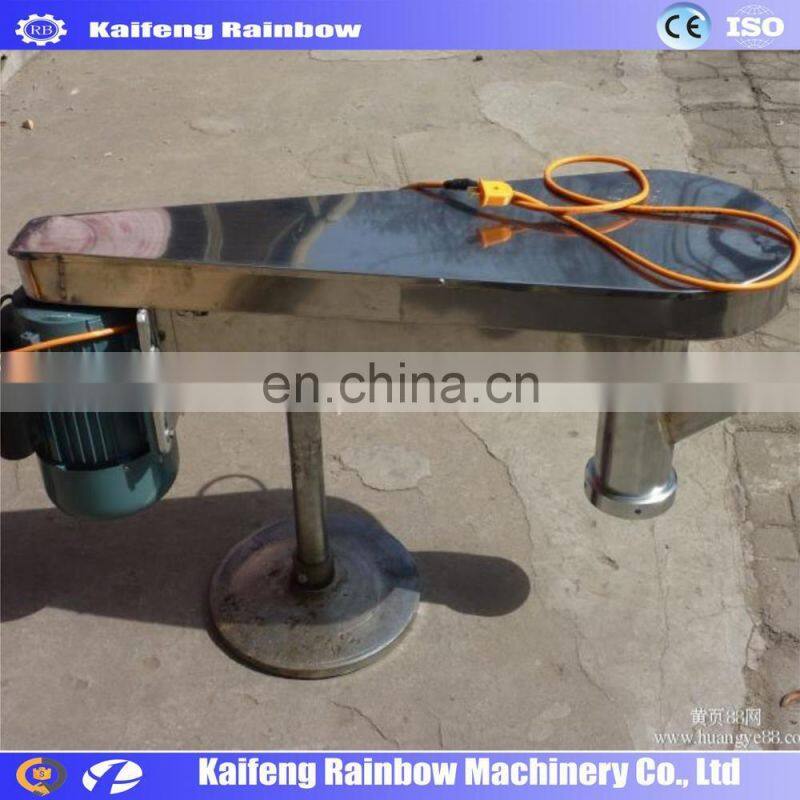

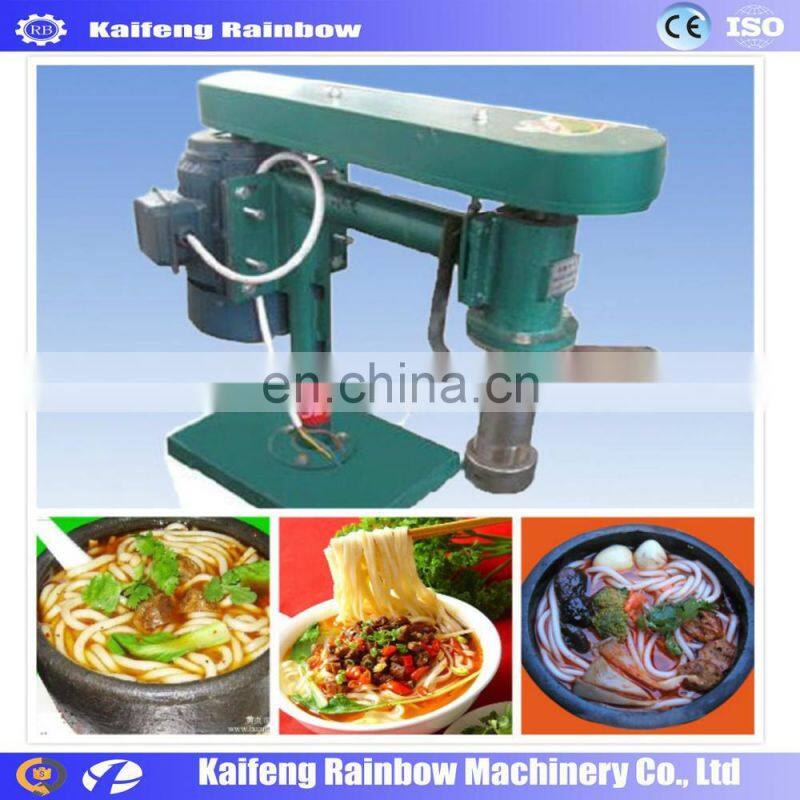

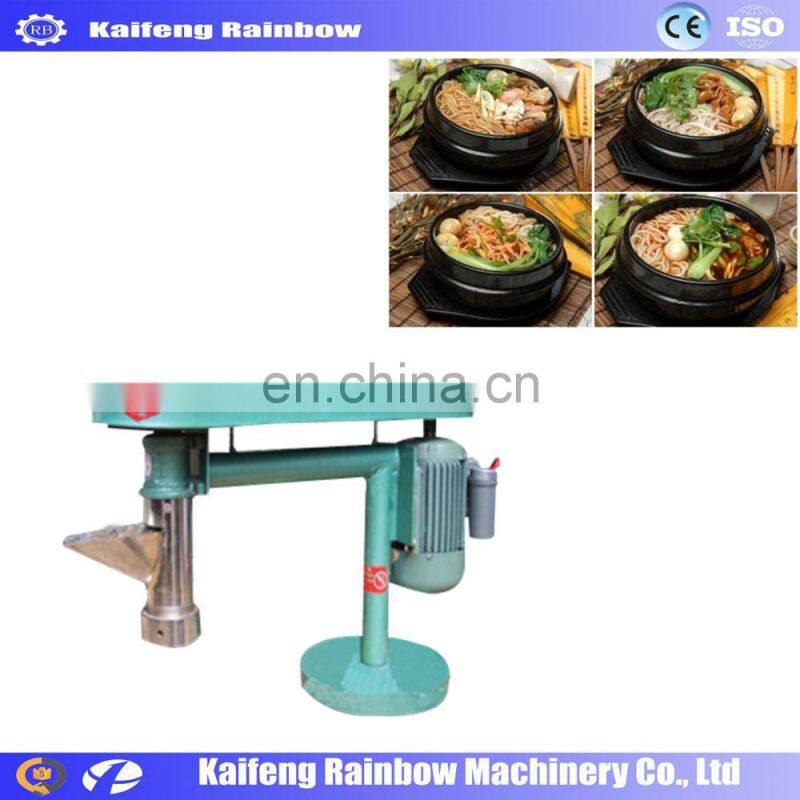

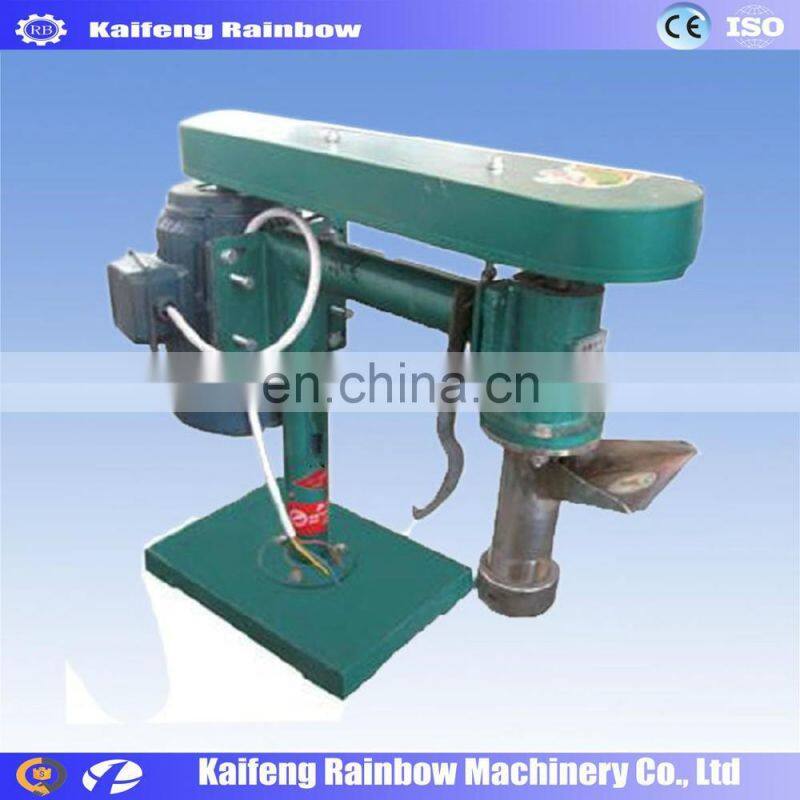

High Efficiency New Design Potato Noodle Maker Machine Pasta Machine to Make Rice Potato Starch Noodle/vermicelli

Product Introduction of Potato Noodle Maker Machine

This Potato Noodle Maker Machine has a beautiful appearance, compact structure, easy operation. Its main function is to standard powder  (grains surface also available) and a noodle dough and hand-planar, with in the spout into the input to be pressed into the rotation and

Hand the same tendon Hele surface, directly into the pot system for food.

This Potato Noodle Maker Machine applies to agencies, organizations, the military, schools, families, factories canteens restaurants, hotels and other

specialized market sectors.

Machine structure and working principle of Potato Noodle Maker Machine

This Potato Noodle Maker Machine is made of dozens of parts and electrical switches and other accessories base, column, bearing sleeve,

cylinder, auger, templates, which consists of sheaves and other works: by trough auger conveyor driven rotation and

extrusion, good will and hard and soft dough appropriate, into spout hole squeezed out by molding Serve noodles,

while the noodles into the boiling pot Serve.

Use and Operation of Potato Noodle Maker Machine

The ground electrical test: first template, remove the belt, followed by electricity, turning positive after determining

motor rotation (in the direction indicated by the arrow), and put on trial transfer belt closing a minute and then loaded

templates such as steering connection. When there is the risk of anti-corruption and templates parts.

The potato needle make machine checks: mechanical parts must be checked before the boot is normal, loose screws, ground wire must installed.

Mobilization head of potato needle make machine: mobilize position before shutdown: brake set screws loose column head back and forth. Mobilize the level

of the position: The column set screw loose brake, then slowly loosening ring, screws can be adjusted on the nose down.

Template Removal of potato needle make machine: First note that rotation, the steering wheel should be the same groove, hard twist, such as the hand screw

fixed, the available wrench pulled.

Detaching shield cover of potato needle make machine: First loosen the screws by hand to open the cover, elastic belt mobilization.

Noodle and manufacturing of potato needle make machine: the standard powder with cold water and hand-made noodles and noodle and similar hard and soft dough, kneading away from the hand, cut into appropriate pieces, roll on the

dry flour stand (other edible flour, grains may face ). If less than kneading dough spout appears slimy, auger, and noodles sticky teeth and so on.

Feeding Operation of potato needle make machine: boot test turn one minute, you can be feeding pressure surface, and good will stand noodles, have been put

into the inlet, the auger extruded noodles directly pressed into the boiling pot, when finished press from the bottom of the template

with a small shovel to shovel under the remaining noodles, noodles sticking to timely dial stir boiling with water separation.

Scrub Cleaning of potato needle make machine: Remove the template soak into the water, cleaning is completed, press the demolition order complex original well.

Rust maintenance of potato needle make machine: After cleaning the barrel of the threads coated edible oil in the template, all rotating parts should always add oil

to the rotating flexible, to prevent corrosion.

Adjust the belt of potato needle make machine: belt slippage or too tight, it will die a total of four screws around the tail of the beam can be adjusted by loosening two distance.

About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.

we can offer EXW, FOB and CIF terms.

EXW: You arrange the shipping details from our factory to your port by yourself.

FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.

CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.

1. Help you choose the most suitable machine.

2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.

Kaifeng Rainbow Machinery Co., Ltd is specialized in production of machines used in food, feed, farm and tech field. We have our own professional research and development department, and specialized production base. Our machinery include food processing machine, pellet mill and supporting machine, Oil Mill Equipment or Oil Presser, wood working machinery and so on.

*How do you guarantee I can receive the goods that ordered after make the payment?

Please rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of Alibaba and has been checked by the third party as the real and legal company, what is more important, honesty and trustworthiness is our basic principle and our company life.

 * How to make the payment?

Normally, when the order value is below USD10,000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10,000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.

 *Date of delivery?

We will arrange the production and shipment as soon as possible when we received the deposit, and update the information with the customer on line.

 *Suitablity of motor?

As there are many volatage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happend, please send us your exact information of the power supply available, then we can modify the motor accordingly.

 *After sale service?

For most of the machines, the quality is guaranteed for one year since the date of shipment expet wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
