Semi Auto Printed Circuit Board Silk Screen Printing Machine
- Shenzhen
- T/T L/C Other
- 7 days
You May Like
-
Electric Flat Bed PCB Board Printer Silk Screen Printing Machine for Sale
-
Electric Flat Bed PCB Board Printer Silk Screen Printing Machine for Sale
-
SMT Semi Auto Screen Printer for Pcb Size 1200 in Smt LED Production Line
-
Factory Price Automatic Smt Pcb Loader Pcb Handling Equipment Nutek Smt Loader Unloader
-
Attractive Price CE Certificate Smt Board Assembly Transportation Machine Pcb Handling Equipment Smt Multi Magazine Loader
-
Add to CompareShare Hot Sale China Suppliers Automatic Pcb Loader Unloader Smt Board Loader Pcb Handling Equipment Electronic Assembly Conveyor
Product Details
| Brand Name | Honreal | Place of Origin | China | |
| Model Number | HR-1068 |
Product Description
Product introduction:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3. Scraper block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.

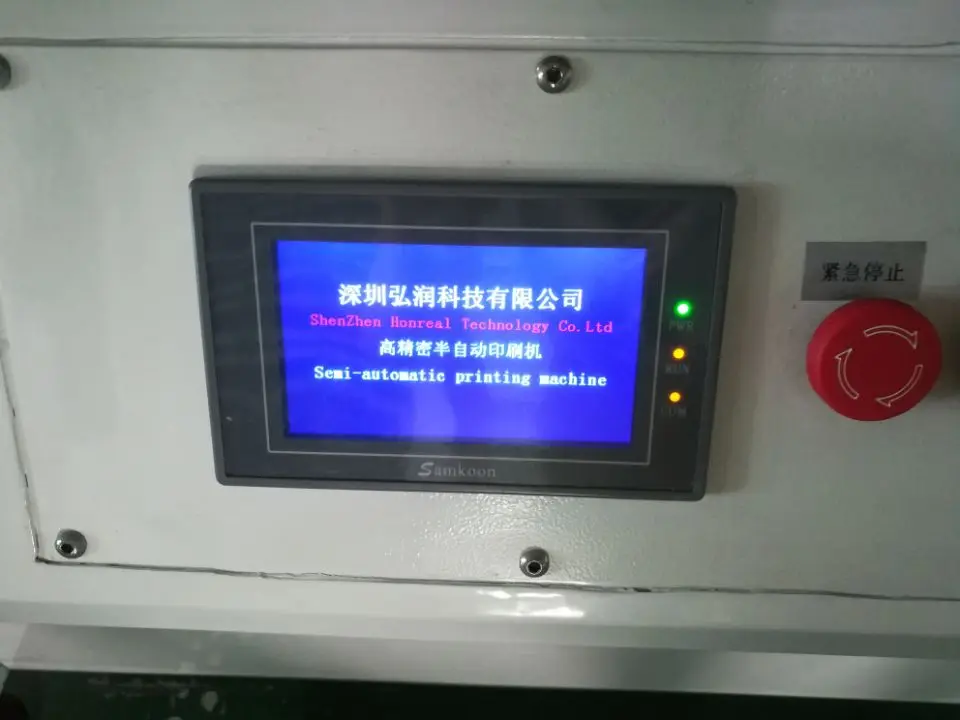

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Technical parameters | |
Function
| This unit is used to print solder paste onto PCB board |
Printing table sizes | 300×400mm(or customized) |
The frame size | 370×470mm,420×520mm,550×650mm |
PCB size | 50x50~300×400mm |
PCB thickness | 0.2 - 5.0mm |
Printing position fixed | PCB Outer Or Pin Positioning |
Bedplate fine-tuning | Front/Back±10mm R/L±10mm |
Printing precision | ±0.02mm |
Repetitive precision | ±0.05mm |
Minimum spacing | 0.35mm |
Air pressure | 4-6Kgf/Cm2 |
Power supply | 220V 50/60Hz 100W |
Specifications | ||||
Model No
| HR-1068 | HR-1068A | HR-1068B | HR-1068C |
PCB size (L×W)~(L×W)mm | (50x50)~(300x400) | (50x50)~(300x600) | (50x50)~(300x1200) | (50x50)~(300x1500) |
Steel mesh size (L×W)mm~(L×W)mm | (370x470~(550x650) | (370x470)~(550x850) | (370x470~(550x1450) | (370x470)~(550x1750) |
Printing table sizes (L×W)mm | 300×400 | 300×650 | 300×1250 | 400×1550 |
Machine size (L×W×H)mm | 860×760×1700 | 1060×760×1700 | 1660×760×1700 | 1960×760×1700 |
Weight | 260kg | 300kg | 340kg | 380kg |
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
