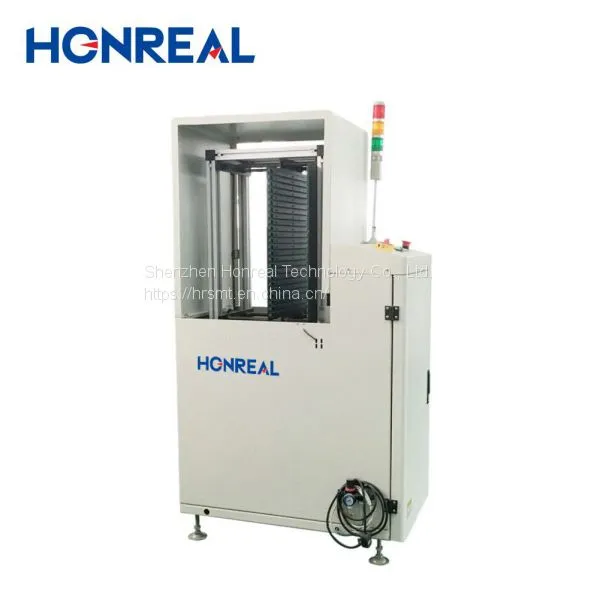

SMT pcb assembly FIFO Automatic PCB buffer conveyor for led manufacturer line
- 10 Set / Sets per Month
- Shenzhen
- T/T L/C Other
- 15 days
You May Like
-
PCB Handling Equipment SMT Inspection Conveyors 0.5m 1.0m conveyor electronic assembly conveyor
-
SMT AOI rework conveyor for led pcb assembly line electronic assembly conveyor PCB Handing conveyor smt transportation cnoveyor
-
SMT line inspection link conveyor
-
High capacity eight heating zones Lead-Free Reflow oven china manufacturer
-
SMT Handling Machine Translational 1.2m LED Vacuum Loader PCB Loader for Sale
-
Full Automatic SMT Machine Double Sides LED PCB Flipper / Inverter Machinery equipment
Product Details
Brand Name | Honreal | Place of Origin | China | |
Model Number | HR-350CB |
Product Description
Product introduction:
1.This equipment is placed after production line printer or before and after the equipments of different working
Speed as a buffer;
2.PLC control system,Working is stably and reliably;
3.Easy to operate LED touch screen control interface;
4.FIFO(first in first out),LIFO(last in first out)and pass through function optiona;
5.Fast,smooth,accurate retrieval positioning;
6.Memory function,control the order of pcb’s pass in and out;
7.Smooth and parallel width adjustment(leadscrew);
8.SMEMA port is compatible;
Technical parameters | |
Function | This equipment is placed after production line printer or before and after the equipments of different working Speed as a buffer |
PCB thickness | Min0.6mm |
MAX PCB’s capacity | 24pcs(0.6mm thickness PCB) |
Cycling time | Approx 10 seconds |
Transport direction | Left to right/right to left(optional) |
Transport height | 900±20mm(or customized) |
Air pressure | 4-6 bar, MAX10L/minute |
Power supply | 100-230V AC(customized) single phase, MAX 250V/A |
Specifications | ||
Model No | HR-350CB | HR-460CB |
PCB size (L*W)~(L*W)mm | (50x50)~(450x350) | (50x50)~(550x460) |
Machine size (L*W*H)mm | 1310*540*1200 | 1310×640×1200 |
Weight | 100kg | 120kg |
Shenzhen Honreal Technology Co.,Ltd is a Professional manufacturer of SMT electronic equipment. The main products: Reflow oven /pcb loader and unloader / pcb cutting machine/smt peripheral equipmen/ PCBA cleaning machine / BGA Rework Station and so on smt automation equipment.Honreal integrates SMT automation design and development, production, sales, service in one of the professional electronic equipment manufacturers.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service. Product warranty period is not, it will provide a paid service.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
During the warranty period, except for man-made damage and force majeure factors, the device itself quality problems, maintenance service commitment.
I provide long-term technical support, vendor outside the warranty period if you need on-site service, only pay the cost (within China).
Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Aogeo perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
