Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810

Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 thumbnail-1
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 thumbnail-2
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 thumbnail-3
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 thumbnail-4
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 photo-1
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 photo-2
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 photo-3
Deep Groove Ball Bearings 684、685、686、687、688、689、6800、6801、6802、6803、6804、6805、6806、6807、6808、6809、6810 photo-4
US$ 0.1 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHY
Place of Origin:
China
Model Number:
618/4，618/5，618/6，618/7，618/8，618/9，61800，61801，61802，61803，61804，61805，61806，61807，61808，61809，61810
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHY
Place of Origin China
Model Number 618/4，618/5，618/6，618/7，618/8，618/9，61800，61801，61802，61803，61804，61805，61806，61807，61808，61809，61810
Number of Row Single Row
Seals Type open, -2Z, -2RS
Precision Rating P0, P6, P5
Outside Diameter 3, 1100
Bore Size 1, 800

  Email：bearing@anshu-electromech.com

Deep groove ball bearings are widely used rolling bearings. It is characterized by low frictional resistance and high speed. It can be used on parts with radial load or combined load of radial and axial action. It can also be used for parts subjected to axial load.

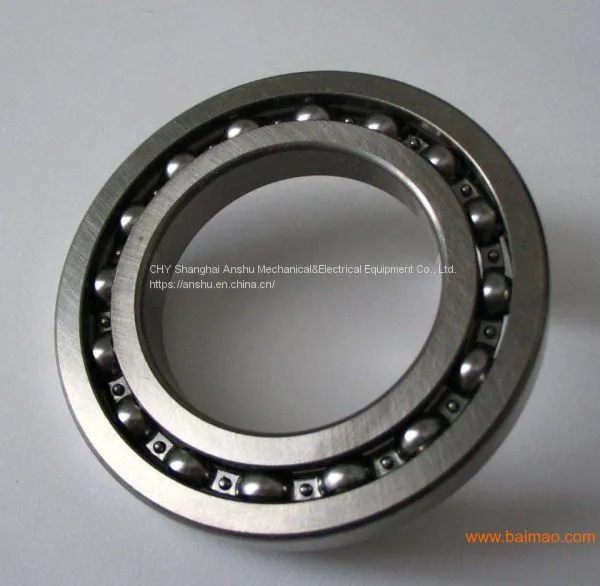

The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. The deep groove ball bearing types are single row and double row. The deep groove ball structure is also divided into two types: sealed and open. The open type refers to the bearing without sealing structure. The sealed deep groove ball is divided into dustproof seal and oil proof. seal. The dust seal cover material is stamped from steel plate, which is simple to prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease inside the bearing from overflowing. The single row deep groove ball bearing type code is 6, and the double row deep groove ball bearing code is 4.

model d D B seal Accuracy level weight（kg）
618/4 4 9 2.5 open、2Z、2RS P0、P5 0.001
618/5 5 11 3 open、2Z、2RS P0、P5 0.002
618/6 6 13 3.5 open、2Z、2RS P0、P5 0.0027
618/7 7 14 3.5 open、2Z、2RS P0、P5 0.003
618/8 8 16 4 open、2Z、2RS P0、P5 0.004
618/9 9 17 4 open、2Z、2RS P0、P5 0.0044
61800 10 19 5 open、2Z、2RS P0、P5 0.005
61801 12 21 5 open、2Z、2RS P0、P5 0.006
61802 15 24 5 open、2Z、2RS P0、P5 0.007
61803 17 26 5 open、2Z、2RS P0、P5 0.007
61804 20 32 7 open、2Z、2RS P0、P5 0.017
61805 25 37 7 open、2Z、2RS P0、P5 0.021
61806 30 42 7 open、2Z、2RS P0、P5 0.024
61807 35 47 7 open、2Z、2RS P0、P5 0.027
61808 40 52 7 open、2Z、2RS P0、P5 0.031
61809 45 58 7 open、2Z、2RS P0、P5 0.038
61810 50 65 7 open、2Z、2RS P0、P5 0.05
