RB17020UUCC0P5 Harmonic Cross Over Bearing

RB17020UUCC0P5 Harmonic Cross Over Bearing thumbnail-1
RB17020UUCC0P5 Harmonic Cross Over Bearing photo-1
US$ 1 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Monton
Place of Origin:
China
Model Number:
RB17020UUCC0P5
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Beijing
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Monton
Place of Origin China
Model Number RB17020UUCC0P5
Number of Row Single Row
Seals Type open or sealed
Precision Rating 50000r/min
Outside Diameter 10, 260
Bore Size 25, 245

RB17020UUCC0P5

RB17020UUCC0P5

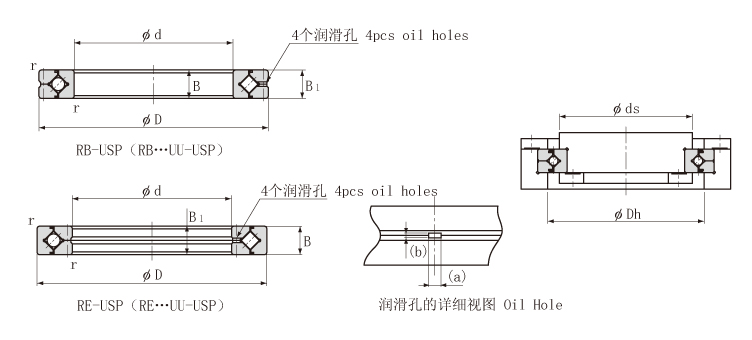

Shaft Diameter Bearings inner ring outer ring Roller pitch circle diameter width Greasing hole Chamfer Shoulder height Basic load rating(radial) weight
d D dp B B1 a-b r(min) ds Dh C C0 Kg
(mm) (mm) (mm) (mm) (mm) kN kN
170 RB17020 170 220 191 20 3.5-1.6 1.5 184 198 29 62.1 2.11

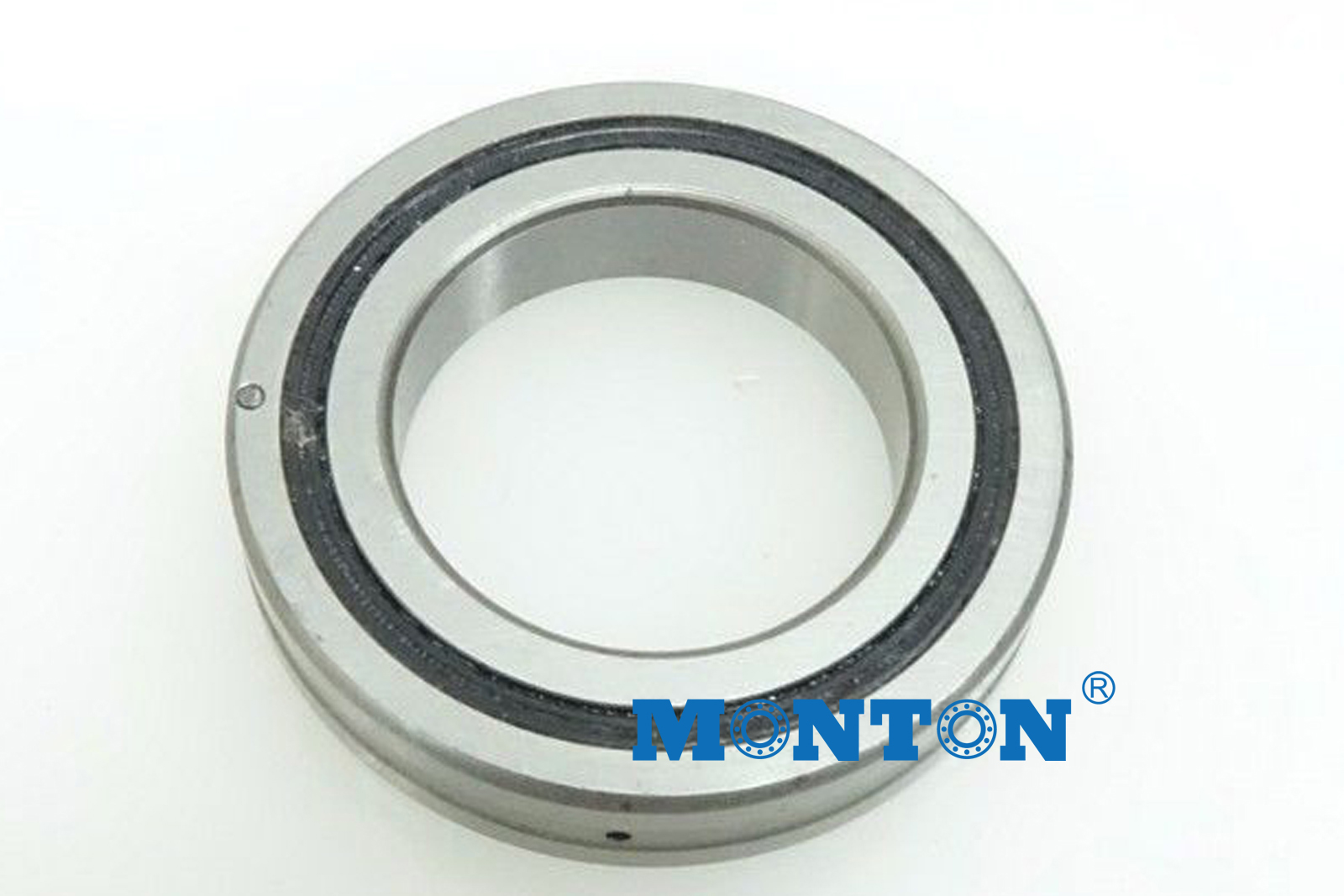

harmonic cross over bearing manufacturers in japan

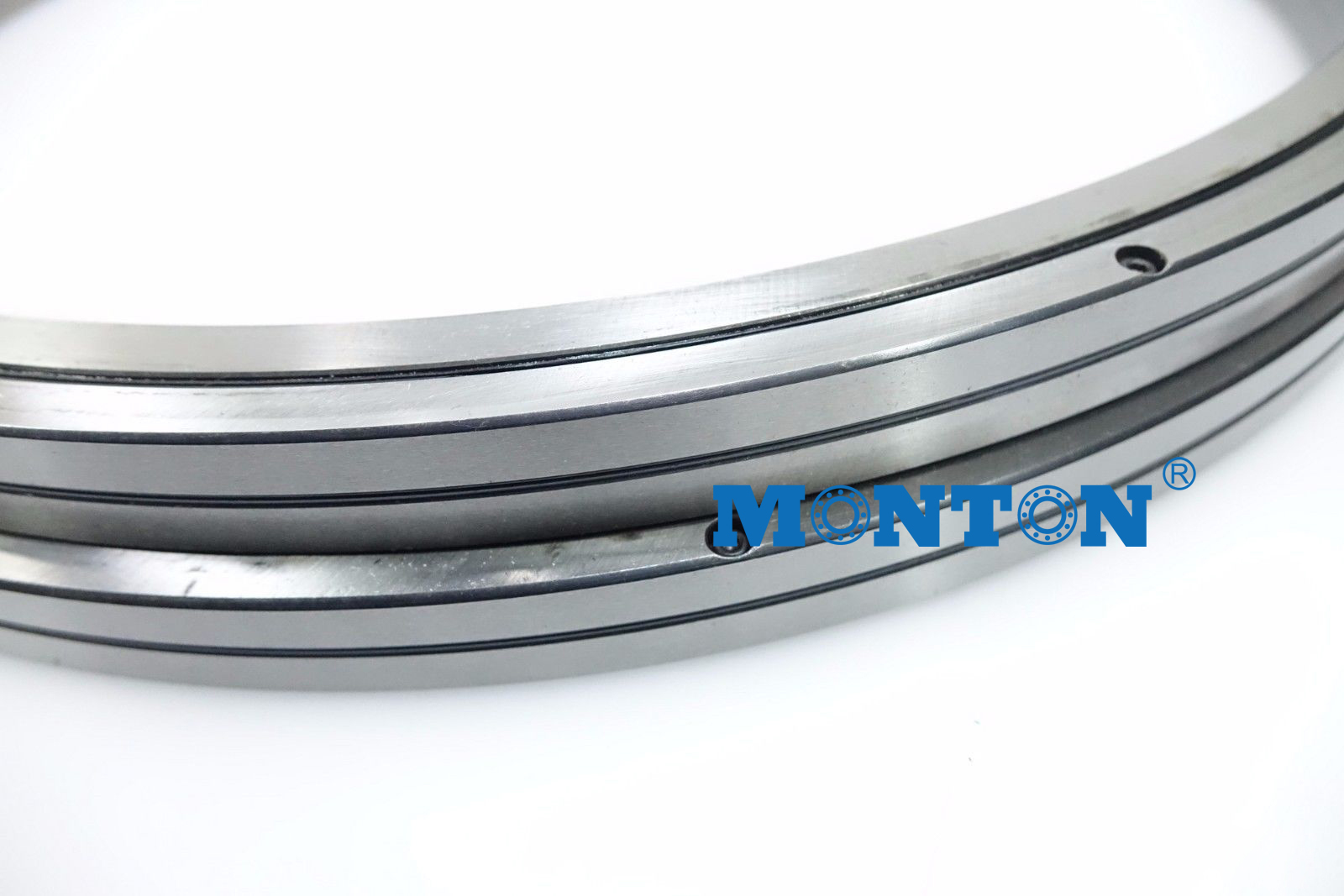

Model RB (Separable Outer Ring Type for Inner Ring Rotation)


Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.



Structure and Features


With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent
roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows
just one bearing to receive loads in all directions including radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the
inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial
robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables,
medical equipment, measuring instruments and IC manufacturing machines.


Concept of the Cross Roller Ring


The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the
double cone roller bearing and angular contact ball bearing which had been popular.



Applications:
•Industrial Robotic arm,Reducer drive

•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc



Model RB (Separable Outer Ring Type for Inner Ring Rotation) Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools. Structure and Features With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including radial, axial and moment loads. Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines. Concept of the Cross Roller Ring The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the double cone roller bearing and angular contact ball bearing which had been popular. Applications: •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc


Product Tags: Cross Roller Bearings , Roller Bearings , High precision bearings , Crollsed Roller Bearings , YRT bearings , Rotary stable bearings
