Help CenterRB35020UUCC0P5 Rb Thin Section Customerized Crossed Roller Bearings For Harmonic Drive Reducer
Related Products
-
RB30025UUCC0P5 RB30035UUCC0P5 RB30040UUCC0P5 Yogie Robot Slim BearingUS$ 1 - 1000MOQ: 1 Piece -
RB25025UUCC0P5 RB25030UUCC0P5 RB25040UUCC0P5 Industrial Robot Crossed Cylindrical Roller BearingUS$ 1 - 1000MOQ: 1 Piece
-
RB24025UUCC0P5 Robot Crossed Roller Bearing Customized Robotics Slewing BearingsUS$ 1 - 1000MOQ: 1 Piece
-
RB22025UUCC0P5 Customized Csf Harmonic Drive For Robot Industrial Robot BearingsUS$ 1 - 1000MOQ: 1 Piece
-
RB20025UUCC0P5 RB20030UUCC0P5 RB20 Csf Harmonic Drive For Robot , Harmonic Reducer BearingUS$ 1 - 1000MOQ: 1 Piece
RB35020UUCC0P5

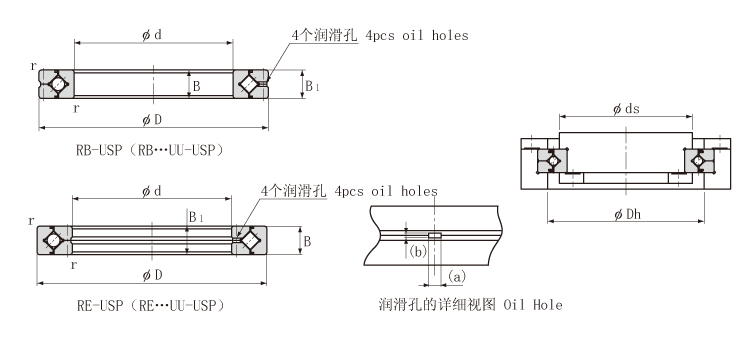

| Shaft Diameter | Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating(radial) | weight | ||
| d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
| 350 | RB35020 | 350 | 400 | 373.4 | 20 | 3.5-1.6 | 2.5 | 363 | 383 | 54.1 | 143 | 3.9 |
Model RB (Separable Outer Ring Type for Inner Ring Rotation)
Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.
Structure and Features
With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent
roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows
just one bearing to receive loads in all directions including radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the
inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial
robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables,
medical equipment, measuring instruments and IC manufacturing machines.
Concept of the Cross Roller Ring
The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the
double cone roller bearing and angular contact ball bearing which had been popular.
Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
