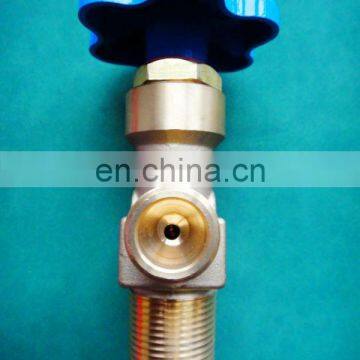

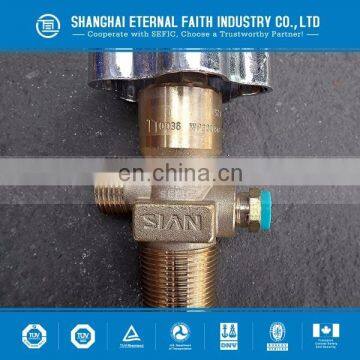

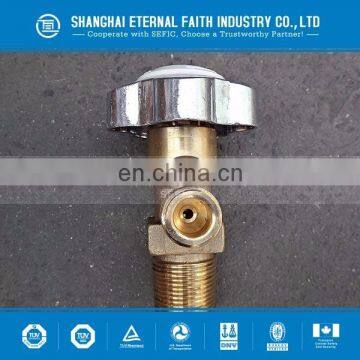

CGA326 Natural Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder Valve Carbon Dioxide Fire Extinguisher Valve
US$ 1 - 9
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SEFIC
Place of Origin:
Shanghai, China
Model Number:
CGA326
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CGA870-2C Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder ValveUS$ 1 - 9MOQ: 1 Unit -
CGA670 Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA326 Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA200 Natural Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA540 Natural Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
Brand Name
SEFIC
Place of Origin
Shanghai, China
Model Number
CGA326
Material
Brass
Structure
Control
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
CGA326
Media
Gas
Temperature of Media
Medium Temperature
1. TYPE: CGA3326
2. MEDIUM AVAILABLE: N2O
3. INLET THREAD: GB8335 PZ27.8
4. OUTLET THREAD: CGA326
5. SAFETY DEVICE(Mpa):
6. WP(Mpa: 15
7.DN(mm):4
1. Specification
| CGA Cylinder Valve Products Series | ||||||
| TYPE | MEDIUM | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) |
| CGA200 | CH | 3 | 3/8-18-NGT | CGA200 | 100°C±5°C | 3 |
| CGA300 | CH | 3 | 3/4-14-NGT | .825-14NGD-RH | 4 | |
| CGA320 | CO2 | 15 | 3/4-14-NGT | CGA320 | 21±1.5 | 4 |
| CGA320A | O2 | 15 | 1-11 1/2-NGT | CGA320 | 21±1.5 | 4 |
| CGA350 | CO2 | 15 | 3/4-14-NGT | CGA350 | 21±1.5 | 7 |
| CGA540 | O2,N2 | 15 | 3/4-14-NGT | CGA540 | 21±1.5 | 4 |
| CGA540B | O2,N2 | 15 | GB8335 PZ27.8 | CGA540 | 21±1.5 | 4 |
| CGA540C | O2,N2 | 15 | 1-11 1/2-NGT | CGA540 | 21±1.5 | 4 |
| CGA540D | O2,N2 | 20 | 3/4-14-NGT | CGA540 | 28±2 | 4 |
| CGA555 | O2,N2 | 15 | GB8335 PZ27.8 | CGA555 | 21±1.5 | 4 |
| CGA580 | He,Ne,Ar,Xe | 15 | 1-11 1/2-NGT | Internal thread CGA580 | 21±1.5 | 4 |
| CGA580A | Ar | 20 | 3/4-14-NGT | Internal thread CGA580 | 28±2 | 3 |
| CGA590 | O2,N2 | 15 | 3/4-14-NGT | Internal thread CGA590 | 3 | |
| CGA870-1 | O2 | 15 | 1/2-NGT | φ7 Clip -4.7 Dowel pin | 21±1.5 | 2.5 |
| CGA870-2A | O2 | 15 | GB8335 PZ27.8 | φ7 Clip -4.7 Dowel pin | 2.5 | |
| CGA870-2B | O2 | 15 | GB8335 PZ27.8 | φ7 Clip -6 Dowel pin | 2.5 | |
| CGA870-2C | N2O | 15 | GB8335 PZ27.8 | φ7 Clip -6 Dowel pin | 2.5 | |
| CGA870-3 | O2 | 15 | 1/2-NGT | φ7 Clip -4.7 Dowel pin | 2.5 | |
| CGA870-4 | O2 | 15 | BS341 1-1/14 | φ7 Clip -4.7 Dowel pin | 2.5 | |
| CGA870-4A3 | O2 | 15 | 3/4-16-UNF | φ7 Clip -4.8 Dowel pin | 73°C±3°C | 1.5 |
| CGA910 | N2O | 15 | 3/4-14-NGT | φ7 Clip -4.7 Dowel pin | 2.5 | |
| CGA870B | O2 | 15 | 3/4-16-UNF | φ7 Clip -4.8 Dowel pin | 1.5 | |
| CGA670 | CI2 | 2 | 3/4-14-NGT | External thread CGA670 | 7 | |
2. Valve Production Process
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries)
by opening, closing, or partially obstructing various passageways.
3. Valve Production Base

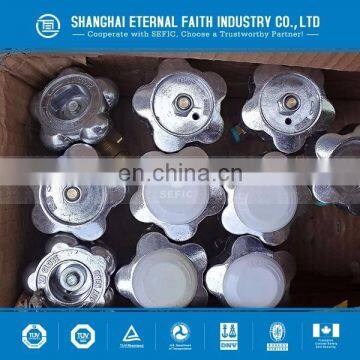

4.PACKING AND DELIVERY
5.Valve Usage / on Steel Cylinder / On Aluminum Cylinder
Pls send us your enquiry If you have any demand on it.
