ROKTOOLS Bridge Cam Welding Gauge Weld Gage Inspection Tools
Negotiable
MOQ: 10 Bags (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ROKTOOLS
Place of Origin:
China
Model Number:
WG-208
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days
Related Products
-
ROKTOOLS Hi-Lo Welding Gauge For Pipe Inspection Bevel 37.5 DegreeNegotiableMOQ: 10 Bags -
Hi-Lo Welding Gage Metric and InchNegotiableMOQ: 1 Set
-
WG-208 ROKTOOLS Bridge Cam Welding GaugeNegotiableMOQ: 10 Sets
-
China Fillet Welding Gauges 7pcsNegotiableMOQ: 50 Sets
-
ROKTOOLS Universal Welding GaugeNegotiableMOQ: 10 Sets
Brand Name
ROKTOOLS
Place of Origin
China
Model Number
WG-208

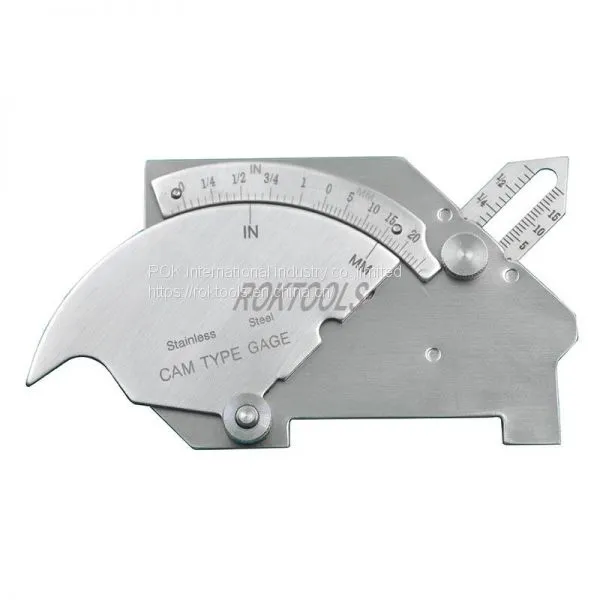

ROKTOOLS Bridge Cam Welding Gauge Weld Gage Inspection Tools
Manufacturer: ROK International Industry Co. limited
Specification:
-Size: 100mm*69
-Weight: 135g
-Mateiral: Stainless Steel
-Crown height: 0-25mm/1inch
-fillet weld let height: 0-25mm/1inch
-Undercut depth: 0-2mm or 1/8 inch
-Angle of preparation: 0-60 degree.
-Manufacturer: Rok International Industry Co., Limited
Chart for measuring
| Measurement | Range | Resolution | Accuracy |
| crown height | 0 - 25mm (0 - 1") |
- | +/- 0.5mm |
| fillet weld leg height | 0 - 25mm (0 - 1") | 1mm (1/16") | +/- 0.5mm |
| misalignment (high-low) | 0 - 25mm (0 - 1") |
1mm (1/16") | +/- 0.5mm |
| undercut depth | 0-2mm (0 - 1/8") |
1mm (1/16") |
+/- 0.1mm |
| fillet weld throat size | 0-20mm(0- 3/4") | 1mm (1/16") | +/- 0.5mm |
| angle of preparation | 0 - 60° | 5 degree | +/- 0.1 degree |
| length | 0 - 60mm (0-2") | 1mm (1/16") | +/- 0.5mm |
| 45 Degree | - | - | +/- 0.1 degree |
