Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine

Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-1
Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-2
Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-3
Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-4
Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-5
Industrial Cooking Pots Interlayer Boiler Jacket Kettle Cooker Sugar Melting Machine photo-6
US$ 3,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
QUATE
Place of Origin:
Henan, China
Model Number:
QT-1
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Brand Name QUATE
Place of Origin Henan, China
Model Number QT-1
After-sales Service Provided Overseas service center available

                                  planetary stirring poth

General Introduction:

Our jacketed kettles are made of food grade stainless steel 304 both inside and outside and have smooth and shiny appearance. It can be manually tilted by using a handle on the side making it easier and safer to pour the contents inside the pot.

The jacketed kettle is widely adopted in various food processing industries, such as sugar, sauce, curry, dishes, beverage, liquor, dairy, cake, chemical and medicine, etc., also can be used in large restaurants and canteens for boiling, cooking, frying and stewing large quantities of food.

Features:

This kind of jacketed kettle has the following features:

1. Easy to install and operate;

2. Uniform Heating;

3. Large heating area;

4. Short boiling time;

5. Easy control of heating temperature;

6. Mixing scrapers can touch the bowl thoroughly avoids burning;

7. Stirring speed is adjustable;

8. Corrosion & abrasion resistance;

9. Longer service life;

Classification of Jacketed Kettle:

By heating method:

1. Electric heating type;

2. Steam heating type;

3. Gas(pls indicate LPG or natural gas) heating type

By configuration of the Jacketed Kettle:

1. Tilting type / vertical type;

2. With agitator / without agitator;

3. Ordinary stirring type / planetary stirring type;

4. With lid / without lid;

Technical Parameters:

Model No.

Capacity

(L)

Heating Area

(m2)

Inner Diameter

(mm)

Depth

(mm)

Width

(mm)

Height

(mm)

Weight

(kg)

QT-1

50

0.39

550

400

880

820

80

QT-2

100

0.77

710

480

1000

870

106

QT-3

200

1.29

840

530

1050

915

121

QT-4

300

1.34

930

600

1100

960

139

QT-5

400

1.98

1000

640

1120

1050

193

QT-6

500

2.3

1080

680

1150

1090

251

QT-7

600

2.7

1200

790

1280

1110

274

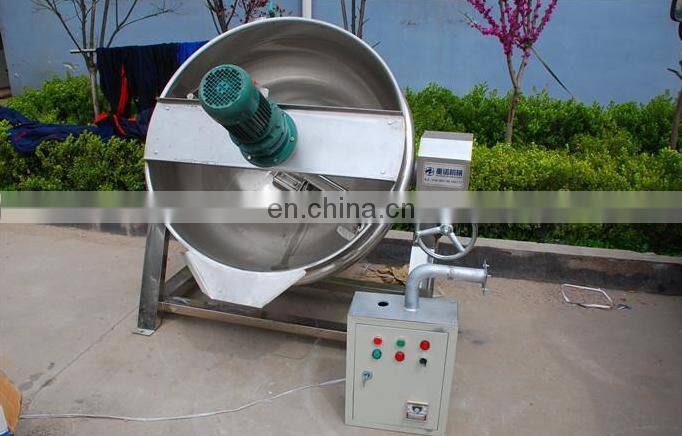

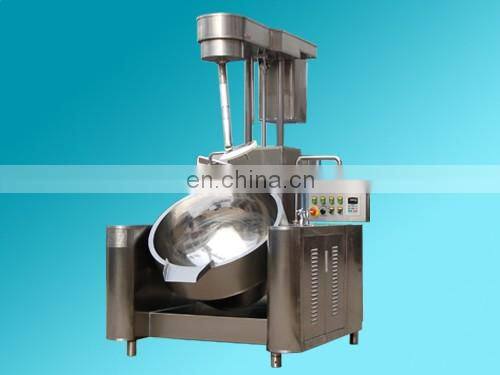

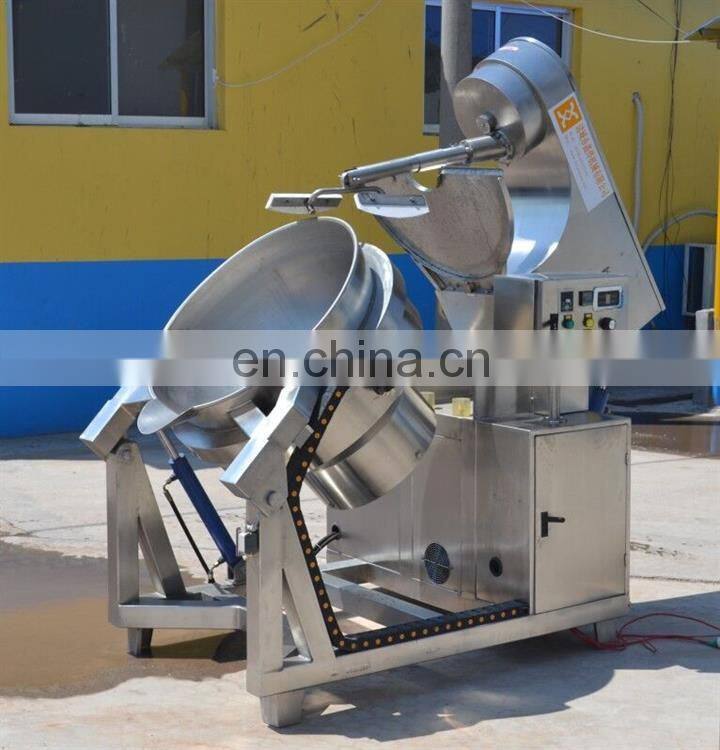

picture of machine:



               industrial cooking pots interlayer boiler jacket kettle cooker sugar melting machine



               industrial cooking pots interlayer boiler jacket kettle cooker sugar melting machine



               industrial cooking pots interlayer boiler jacket kettle cooker sugar melting machine

packing:



            industrial cooking pots interlayer boiler jacket kettle cooker sugar melting machine

shipping:



           industrial cooking pots interlayer boiler jacket kettle cooker sugar melting machine
