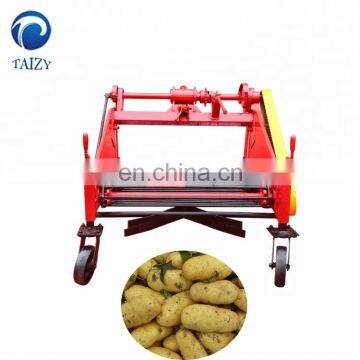

High quality multifunction potato harvesting machine/3 points suspension mini potato harvester
Contact me
ph:0086-13676938131
Skype:junemachine
Introduction
This series potato harvester not only used for potato and also for sweet potato, garlic, onion and other root crops.
This machine is composed by seeding-cut equipment, ground wheel, digging blade, conveying chain, sorting screen etc. So it could finish from seeding cutting to sorting in one time. And also it is designed by intermediate transmission or left-side transmission, so this machine could be driven by different PTO types tractors.
Feature
1. excellent performance, good appearance, best quality
2. high-working efficiency, lower breakage rate
3. light & quick running without vibration, no jamming
4. simple structure, has a long useful life
Main parameter
TZ4U series harvester | |||||||
Model |
TZ4U-600 |
TZ4UZ-600 |
TZ4U-800 |
TZ4U-1300 |
TZ4U-1300B |
TZ4U-1600 |
TZ4U—1650B |
Row/Working mode |
Single ridge/Scattering |
Single ridge/Shake scattering |
Single ridge/Scattering |
Double ridge/Scattering |
Double ridge/Loading arm |
Double ridge/Scattering |
Double ridge/Loading arm |
Harvest width(cm) |
60 |
60 |
80 |
130 |
130 |
160 |
165 |
Productivity (Mu./h) |
3--5 |
5--8 |
8--15 |
||||
Total weight(kg) |
180 |
160 |
220 |
560 |
800 |
700 |
1200 |
Matched power(HP) |
22--35 |
22--35 |
24--35 |
35--50 |
50--80 |
50-80 |
70--120 |
Working depth(cm) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Potato harvest rate |
>96% |
||||||
Broken rate |
<2% |
||||||
PTO shaft rotating speed(r/min) |
560/1250 |
560/1250 |
560/1250 |
560 |
560 |
560 |
560 |
Out dimension(cm) |
240*90*90 |
120*100*75 |
240*110*90 |
280*220*100 |
280*320*310 |
2500*170*100 |
330*390*310 |
Packaging size(cm) |
165*90*75 |
150*90*70 |
165*110*80 |
220*160*80 |
320*190*130 |
220*180*80 |
320*200*130 |
Product showcases
