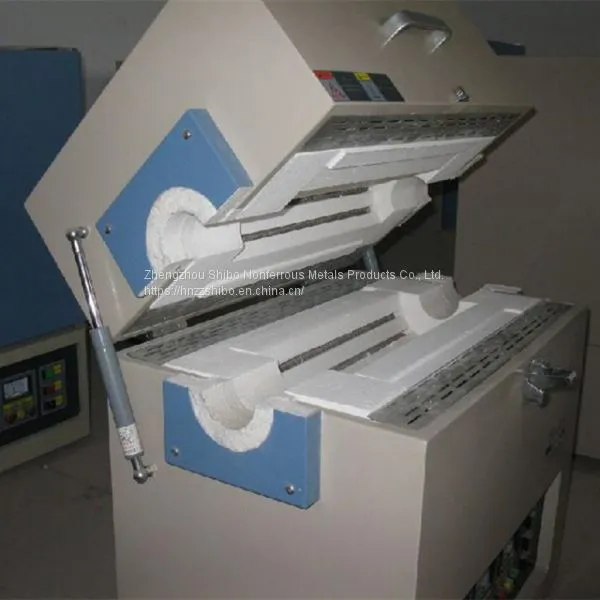

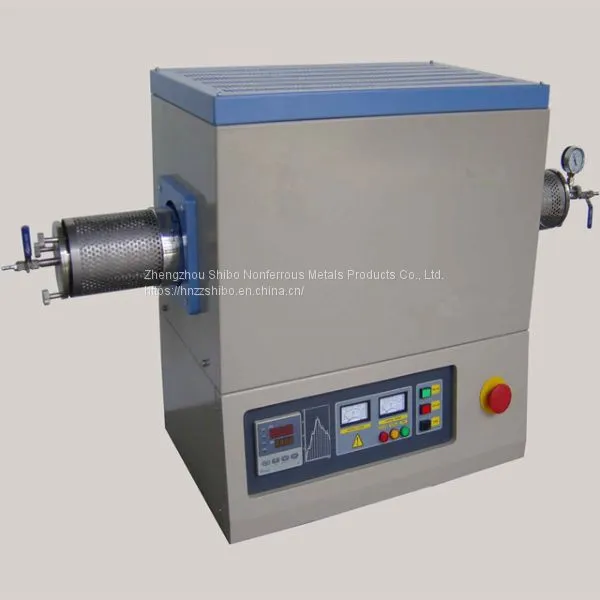

TUBE-1400 high-temperature vacuum tube furnace takes SIC heating element as heating elements whose rating temperature is 1300 ℃, and adopts S-type platinum-rhodium thermocouple to measure temperature and auto-control the temperature by 708 P-automatic temperature instrument. It has high precision in temperature control (± 1 ℃). In addition, the furnace with a vacuum device can work under a variety of atmosphere that greatly increasing the scope of its application. The furnace has the advantages of the use of high temperature, high-precision temperature control, simple operation, easy maintenance, and other advantages, which can be widely used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments.
Product Description
|
Detailed Parameters |
Model |
TUBE-1400 |
Furnace pipe size |
φ60x1000mm |
|
Heating Element |
SiC Heating Element |
|
Temperature |
≤1300℃ |
|
Maximum Temperature |
1400℃ |
|
Temperature control type |
Intelligent process control |
|
|
Temperature control precision |
±1℃ |
|
Heat Addition Rat |
10-20℃/min |
|
Working Power |
AC220V 50/60Hz |
|
Rated Power |
4-5KW |
|
Furnace Hearth Material |
Import fiber |
|
Weight |
About 150kg |
This series can use vacuum tube furnace,can design according to
the needs of users to use more tube furnace temperature zone.
Characteristic
1.TUBE-1400 type tube high temperature furnace,Using silicon carbide as heating elements,
rated temperature 1300℃.
2. Using S-types single platinum-rhodium thermocouple test temperature and Use 708P type temperature controller for automatic temperature control with high temperature control precision (±1℃)
3. This furnace have vacuum device, can work under a variety of atmosphere, which greatly improving the scope of its use.
4. This furnace has many advantages,such as using under high temperature, high precision temperature control, simple operation , convenient maintenance and so on.
5. Widely used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments.
Standard Sizes:
Model |
Chamber size |
Max. Temperature |
Tube-1400 |
Dia40x300mm (1.5"x12") |
1400.C |
Tube-1400 |
Dia40x400mm (1.5"x16") |
1400.C |
Tube-1400 |
Dia60x300mm (2.5"x12") |
1400.C |
Tube-1400 |
Dia60x400mm (2.5"x16") |
1400.C |
Tube-1400 |
Dia80x300mm (3.0"x12") |
1400.C |
Tube-1400 |
Dia80x400mm (3.0"x16") |
1400.C |
Tube-1400 |
Dia100x300mm (4.0"x12") |
1400.C |
Tube-1400 |
Dia100x400mm (4.0"x16") |
1400.C |
we can produce according to your requests.
